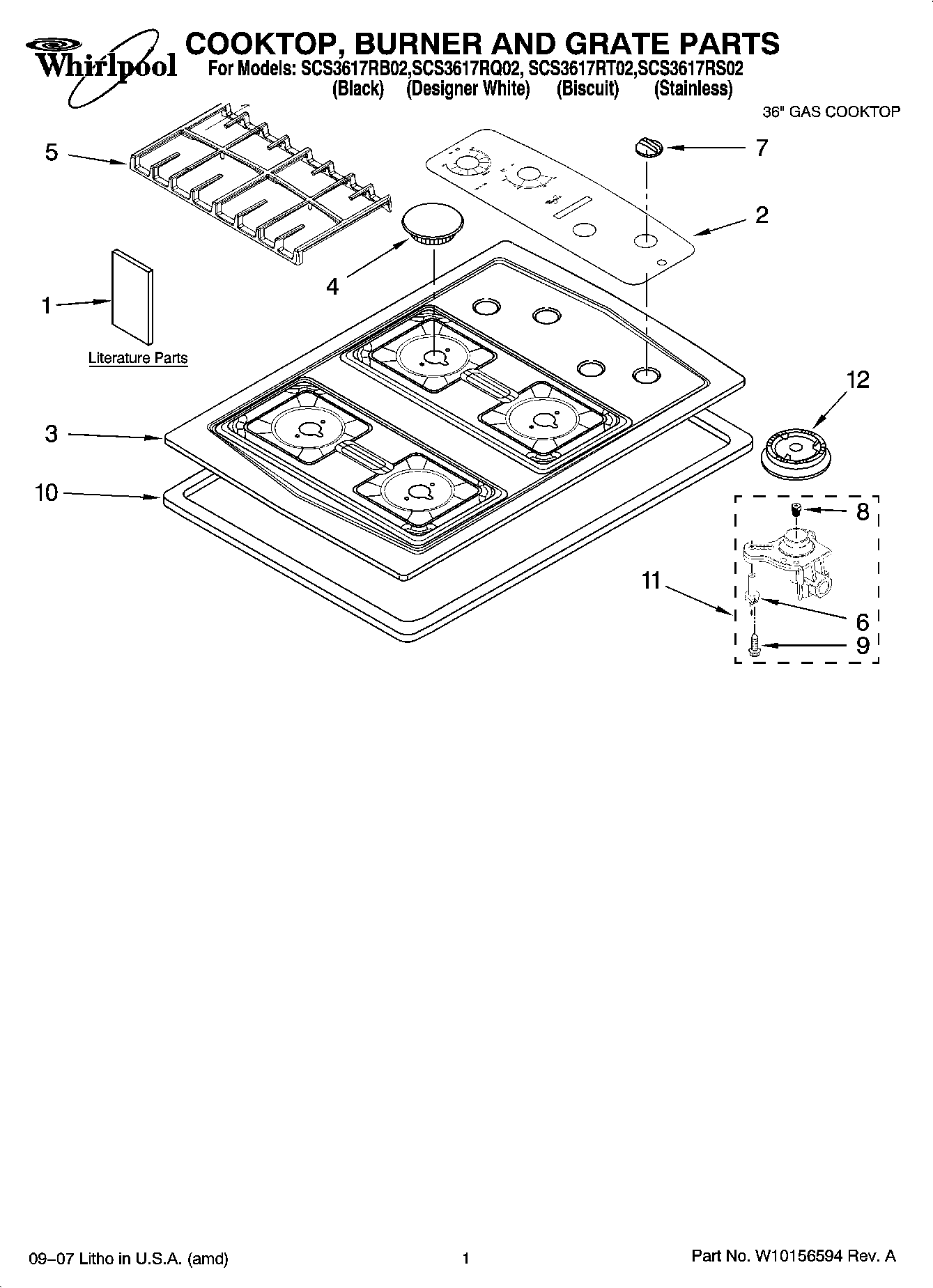

SCS3617RB02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
4456626 Whirlpool Wire
4456627 Whirlpool Wire Harness
WPL ARI128794A
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
1Safe Cooking Tips (French)
1Safe Cooking Tips
2WP8286502 Whirlpool Control Panel
2Panel, Control (Biscuit)
28286503 Whirlpool Oven Control Panel
3Cooktop (Black)
3Cooktop (White)
3Cooktop (Stainless)
3Cooktop (Biscuit)
48286155EP Whirlpool Burner Cap
4Cap, Burner 9.5K (LR) (Espresso)
4Cap, Burner 6K (RR) (Espresso)
4WP8286155CG Whirlpool Burner Cap
4WP8286154CG Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286153CG Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
5Grate Right (Cumberland Gray)
5Grate Right (Coal Matte Black)
5Grate Right (Espresso)
5Grate Left (Coal Matte Black)
5Grate Left (Cumberland Gray)
5Grate Left (Espresso)
6WP9782116 Whirlpool Surface Igniter
7WP8286057WH Whirlpool Knob
78286057BT Whirlpool Knob
7WP8286057BL Whirlpool Knob Replacement
88286473 Whirlpool Oven Orifice
88286551 Whirlpool Oven Orifice
8WP3192523 Whirlpool Orifice
9WP8273062 Whirlpool Screw
10Seal, Foam
11WPW10128450 Whirlpool Orifice Holder
11WPW10128449 Whirlpool Orifice Holder
11WPW10128451 Whirlpool Orifice Holder
12WPW10406243 Whirlpool Burner Head Auxiliary 6K
12WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
12WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
