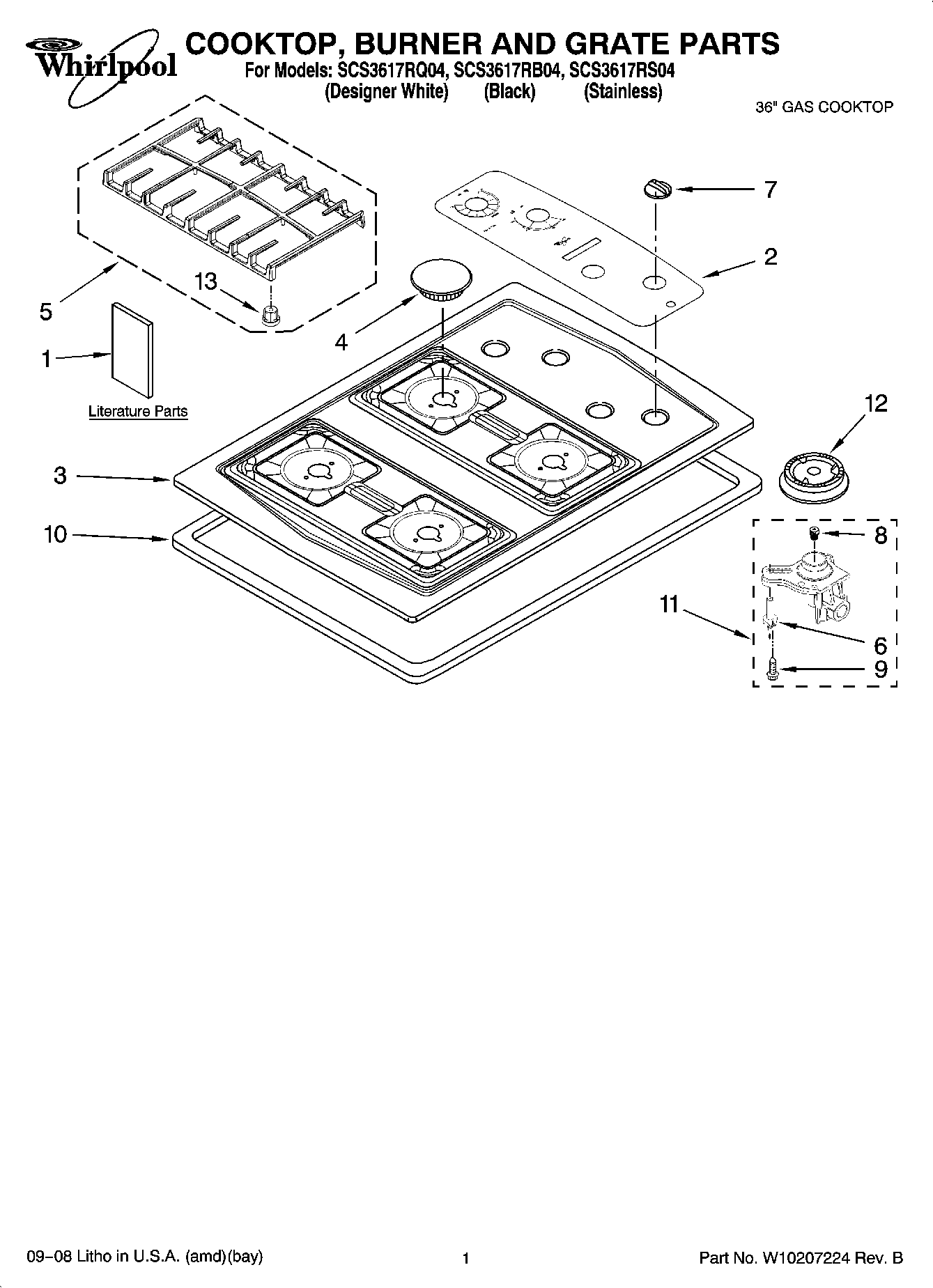

SCS3617RQ04 01 – COOKTOP, BURNER AND GRATE PARTS

SCS3617RQ04 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

SCS3617RQ04 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
Following Parts Not Illustrated
4456626 Whirlpool Wire
4456627 Whirlpool Wire Harness
1Wiring Diagram
1Safe Cooking Tips
1L.P. Conversion Instructions
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
2WP8286502 Whirlpool Control Panel
28286503 Whirlpool Oven Control Panel
3Cooktop (Black)
3Cooktop (White)
3Cooktop (Stainless)
4WP8286155CG Whirlpool Burner Cap
4WP8286154CG Whirlpool Burner Cap
4WP8286153CG Whirlpool Burner Cap
4WP8286153CB Whirlpool Burner Cap
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
5Grate Left (Cumberland Gray)
5Grate Left (Coal Matte Black)
5Grate Right (Coal Matte Black)
5Grate Right (Cumberland Gray)
6WP9782116 Whirlpool Surface Igniter
7WP8286057BL Whirlpool Knob Replacement
7WP8286057WH Whirlpool Knob
88286473 Whirlpool Oven Orifice
8WP3192523 Whirlpool Orifice
88286551 Whirlpool Oven Orifice
9WP8273062 Whirlpool Screw
10Seal, Foam
11WPW10128451 Whirlpool Orifice Holder
11WPW10128450 Whirlpool Orifice Holder
11WPW10128449 Whirlpool Orifice Holder
12WPW10406243 Whirlpool Burner Head Auxiliary 6K
12WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
12WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
13W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
