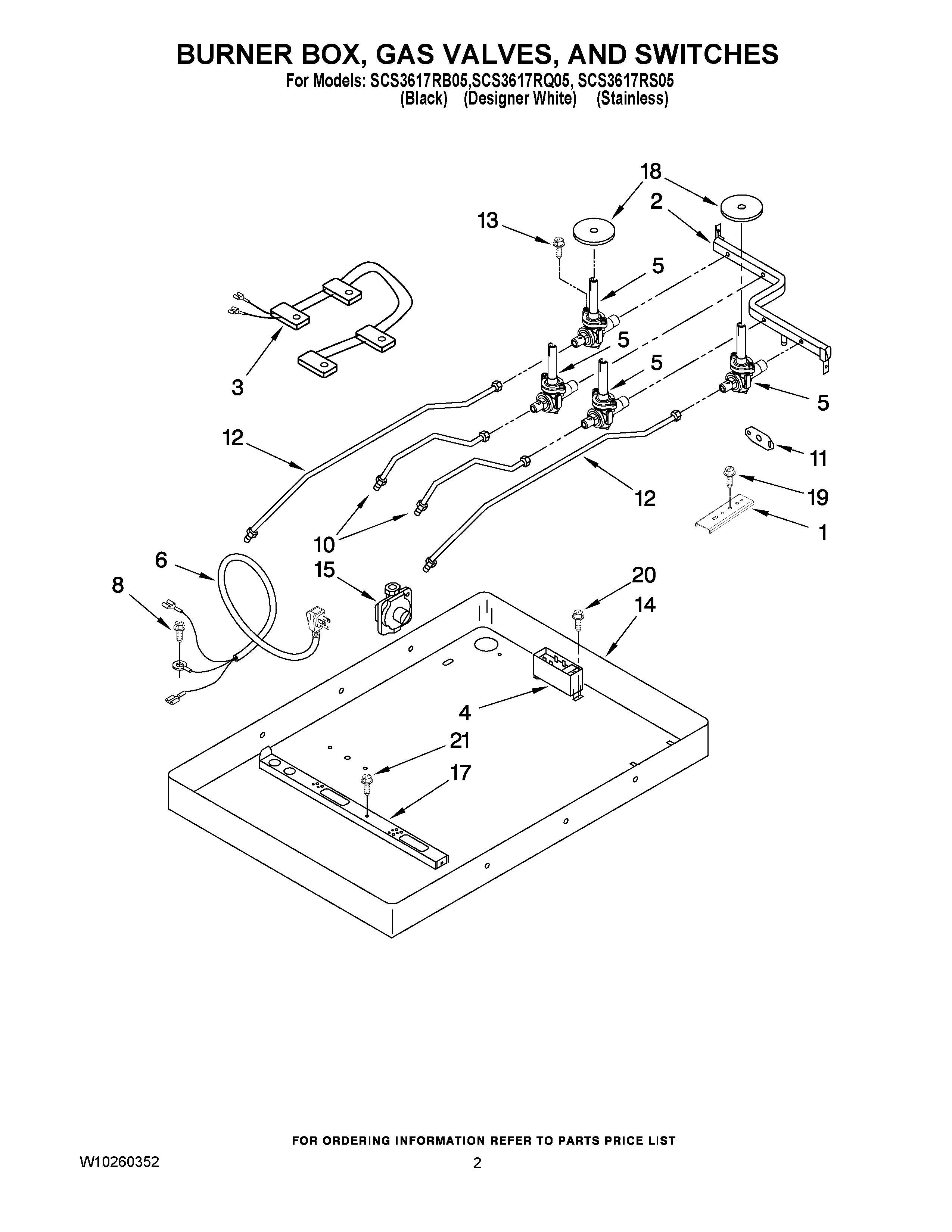

SCS3617RS05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	WP8286320 Whirlpool Spud Orifice
1	8186533 Whirlpool Hardware
2	9759354 Whirlpool Oven Manifold Pipe
3	WP4456905 Whirlpool Wire Harness
4	WPW10110491 Whirlpool Spark Module
5	Valve, Gas Burner (Yellow)
5	Valve, Gas Burner (White)
5	WP4456817 Whirlpool Burner Valve
6	W10392007 Whirlpool Power Cord
8	WP3177991 Whirlpool Screw
10	Tubing, Burner RR & RF
11	3192491 Whirlpool Support Bracket
12	Tubing, Burner LR & LF
13	W10491985 Whirlpool Screw
14	Box, Burner
15	W11170853 Whirlpool Regulator Assembly
17	W10203756 Whirlpool Support
18	WP3188425 Whirlpool Seal Switch
19	WP3400093 Whirlpool Screw
20	WP12990527 Whirlpool Microwave Screw
21	WP4449809 Whirlpool Screw
