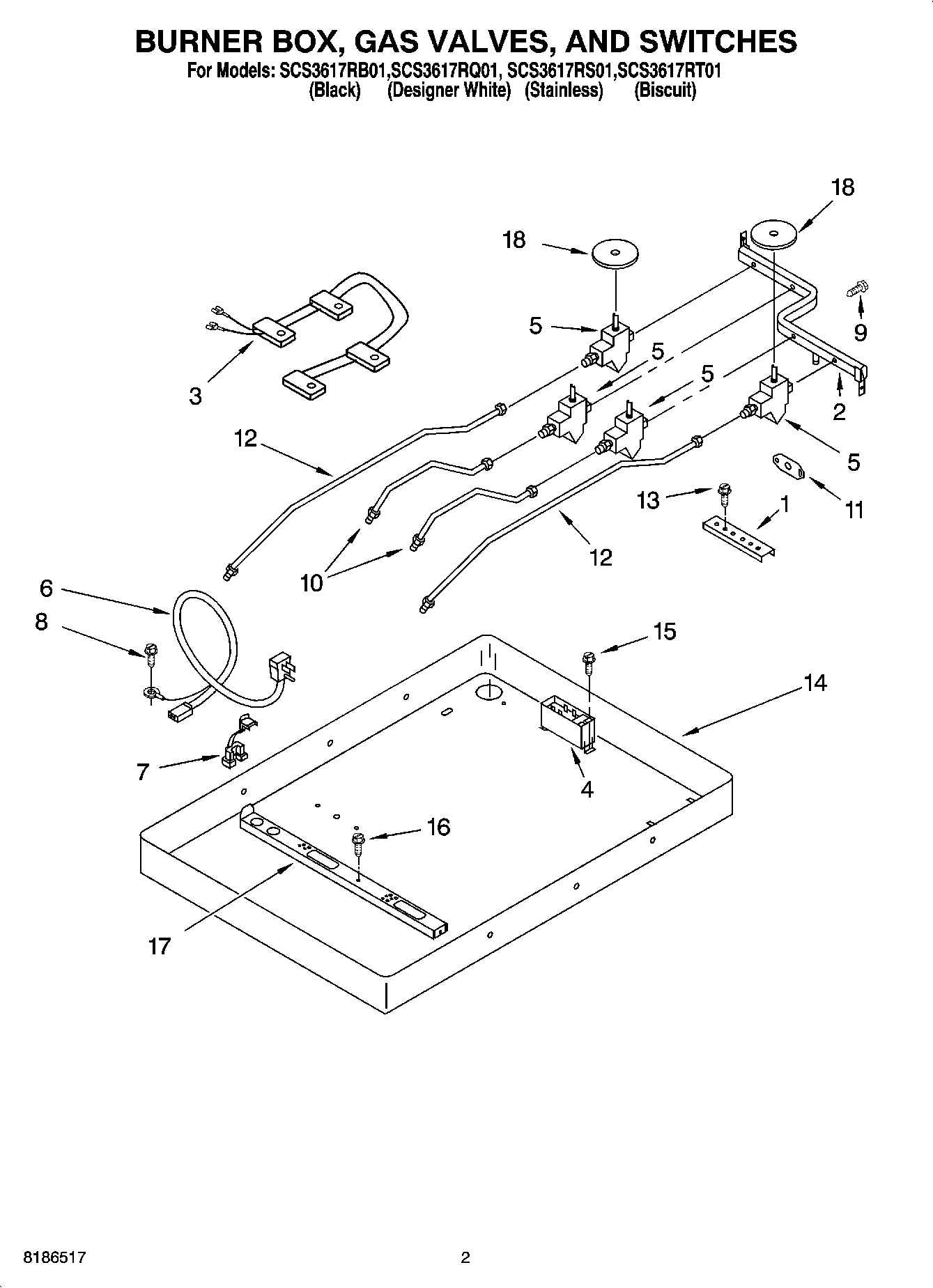

SCS3617RT01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
18186533 Whirlpool Hardware
29759354 Whirlpool Oven Manifold Pipe
3WP4456905 Whirlpool Wire Harness
4WPW10110491 Whirlpool Spark Module
5Valve, Gas Burner (Yellow)
5Valve, Gas Burner (White)
5WP4456817 Whirlpool Burner Valve
6W10392007 Whirlpool Power Cord
74173634 Whirlpool Bushing
8WP3177991 Whirlpool Screw
9WP3186217 Whirlpool Screw
10Tubing, Burner RR & RF
113192491 Whirlpool Support Bracket
12Tubing, Burner LR & LF
13WP3400093 Whirlpool Screw
14Box, Burner
15WP12990527 Whirlpool Microwave Screw
16WP4449809 Whirlpool Screw
17W10203756 Whirlpool Support
18WP8286320 Whirlpool Spud Orifice
18Hardware Kit (Mounting)
18WP3188425 Whirlpool Seal Switch
18Following Parts Not Illustrated and Optional Parts Not Included
