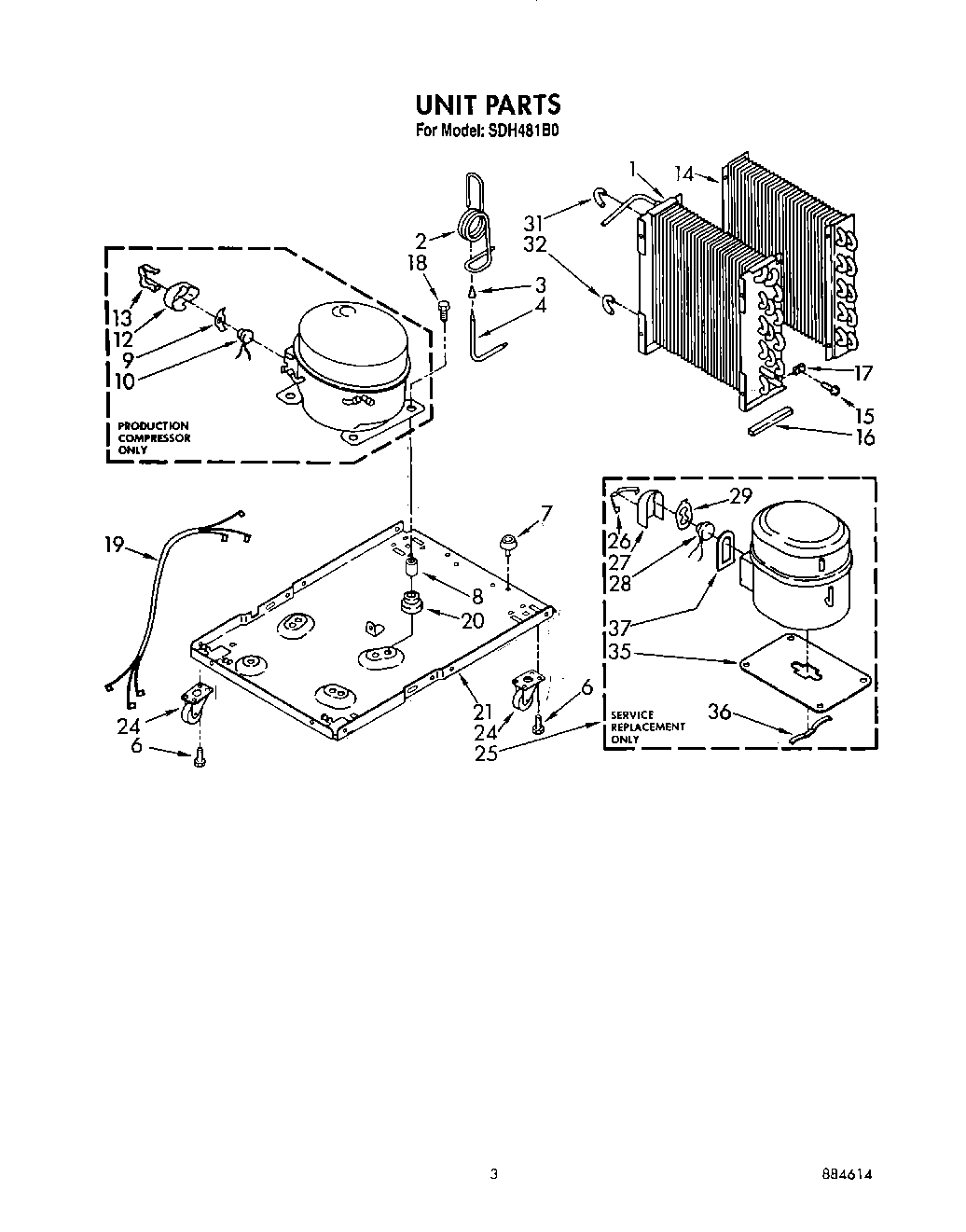

SDH481B0 03 – UNIT

Products

PositionProduct
1Condenser
2Tube, Restrictor (46.0“ Length)
3Strainer
4WPL 951349
6WPW10141604 Whirlpool Screw
7Foot (2)
8Sleeve (4)
9Spring, Overload
10Overload (Production)
12Cover, Terminal
13Retainer, Cover
14WPL 1159235
15Screw, 8 x 3/8
16Seal
17488660 Whirlpool Refrigerator Nut
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
24Caster (4)
25Compressor, Service (Complete Assembly)
26Retainer, Cover
27Cover, Terminal
28Overload
29Spring, Overload
31Bend, Return Evaporator (11)
32Bend, Return Evaporator (4)
35Plate, Compressor
36Spring, Clip
37PTC Clamp
37PTC Start Device
37Wire Assy. (2)
37Gasket, Cover
37WP489069 Whirlpool Compactor Screw
