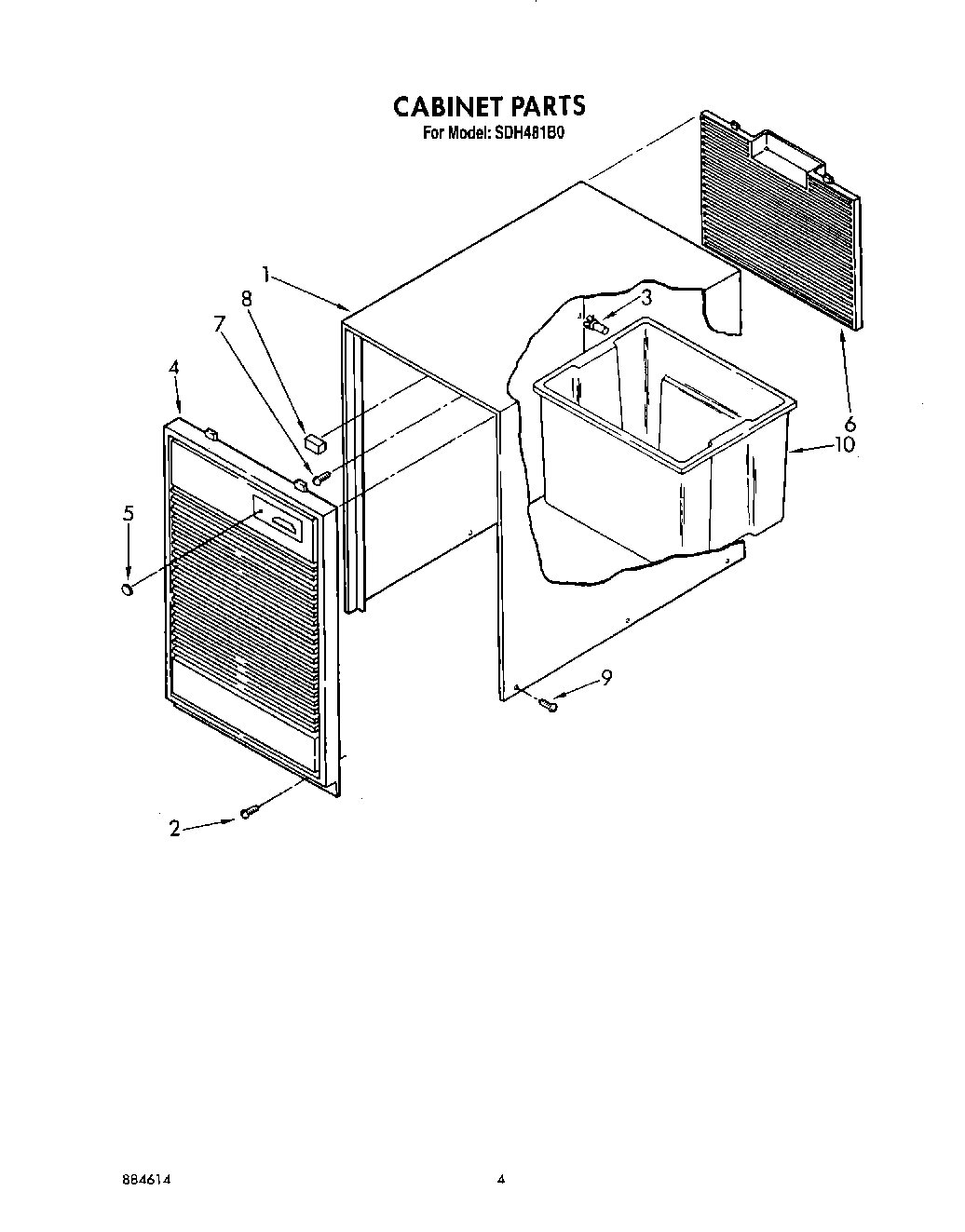

SDH481B0 04 – CABINET, LIT/OPTIONAL

SDH481B0 04 – CABINET, LIT/OPTIONAL

Written by

in

SDH481B0 04 – CABINET, LIT/OPTIONAL

Products

PositionProduct
Repair, List
Guide, Use And Care
WPL LIT1162507
1Cabinet
3Retainer Pin (Rear Grille)
4Grille, Front
5Lens, Light
6Grille, Rear
7WP488729 Whirlpool Refrigerator Door Screw
8Spacer, Grille
9WP489069 Whirlpool Compactor Screw
10Pan, Condensate
10Cap, Condensate Pan
10Seal, Ring (Access Valve) (20 – Pack)
10WP16123 Whirlpool Washer
10212643 Whirlpool Refrigerator Permagum Sealer
10978026 Whirlpool Refrigerator Primary Valve
10978027 Whirlpool Refrigerator Primary Valve
10978030 Whirlpool Refrigerator Valve
10WP978025 Whirlpool Refrigerator Valve
10VALVE, ACCESS (1/2“)
10WPL 799833
10Lacquer, Starlight Gray (1/2 Pt. Uncut)
10VALVE, ACCESS (5/8“)
