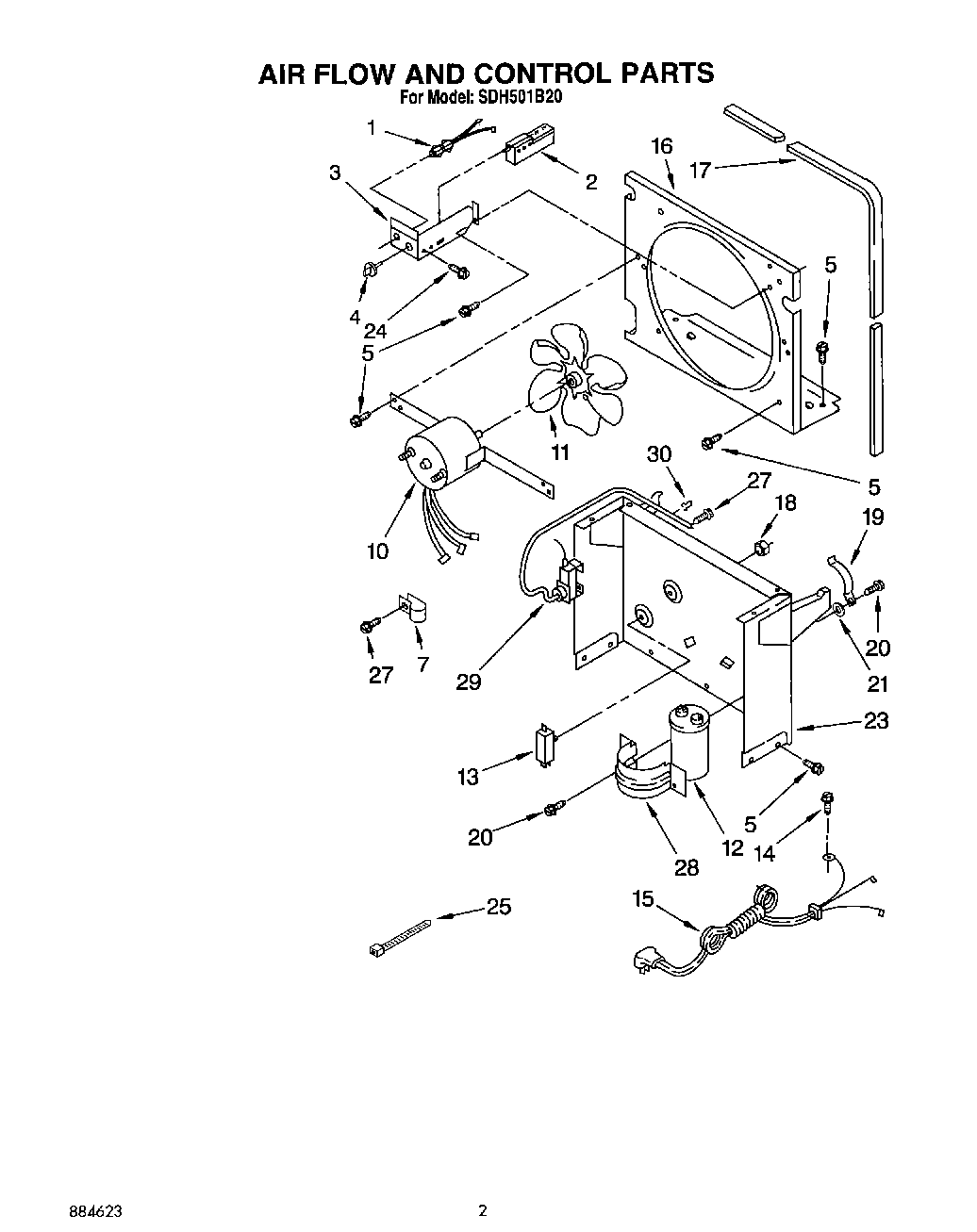

SDH501B20 02 – SECTION

Products

PositionProduct
1WPL 1162368
2Humidistat, Control
3Bracket, Humidistat
4Knob, Humidistat Control
5Screw, 8 x 3/8
10WPL 1162312
11Blade, Fan
12Capacitor, Run
13Switch, Water Level Control
14WPW10141604 Whirlpool Screw
15Cord, Appliance
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer (Repair) (.062 Thickness)
21Washer, Repair (.045 Thickness)
21Washer (Repair) (.091 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
27WP488234 Whirlpool Air Conditioner Screw
28Bracket, Capacitor
29Thermostat, De-Icer
30Clamp, Tube To Evaporator Mtg (2)
