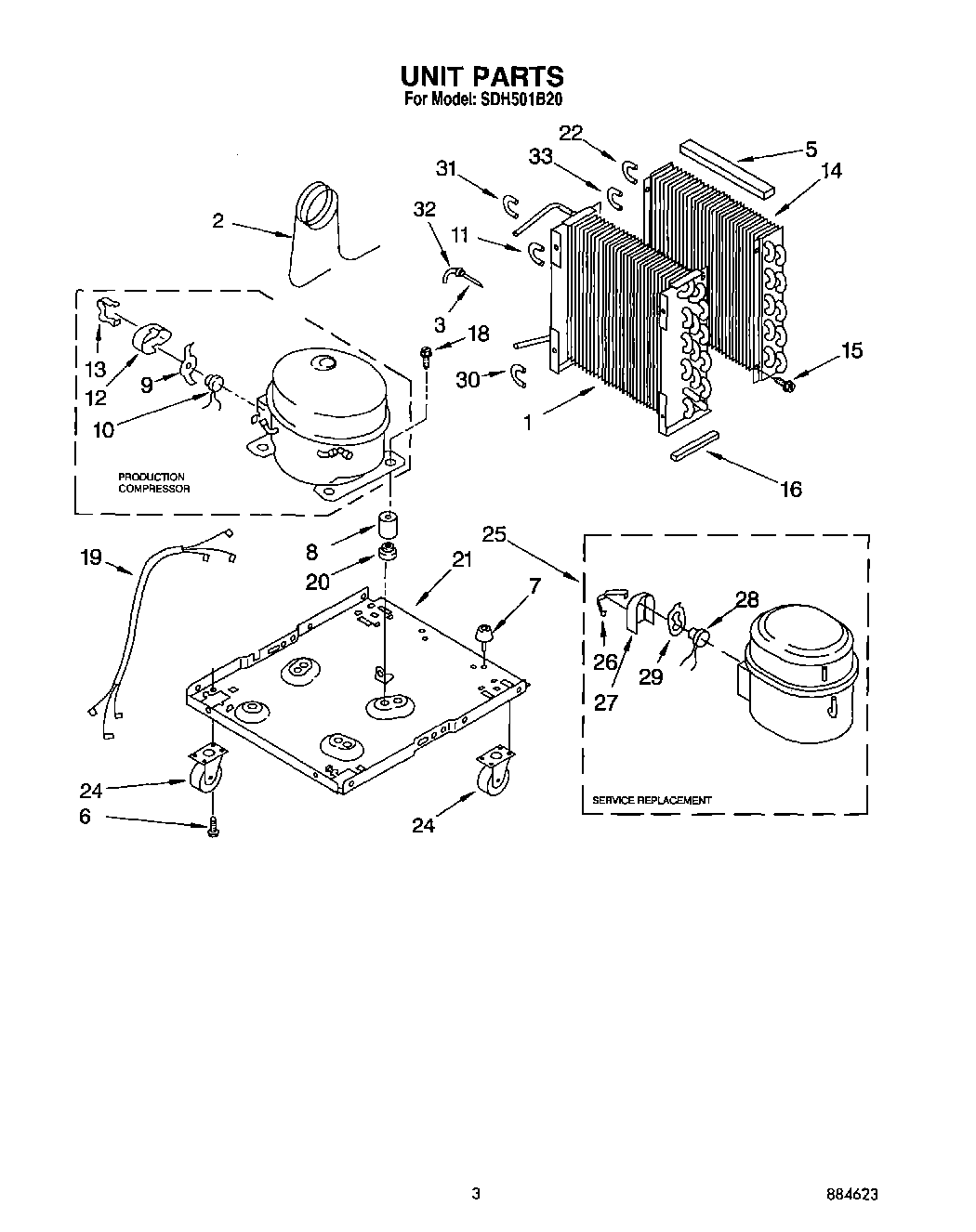

SDH501B20 03 – SECTION

Products

PositionProduct
1Condenser
2Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
5Seal, Evaporator Top
6WPW10141604 Whirlpool Screw
7Foot (2)
8Sleeve (4)
11Bend, Return Condenser (4)
14Evaporator
15WP489069 Whirlpool Compactor Screw
16Seal
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
22Bend, Return Condenser (1)
24Caster (4)
25Compressor, Service (Complete Assembly)
26Retainer, Cover
27Cover, Terminal
28Overload (Production)
29Spring, Overload
30Bend Return
31Bend, Return Evaporator (11)
32Bend, Return Evaporator (4)
33PTC Clamp
33PTC Start Device
33Wire Assy. (2)
33Bend, Return Condenser (10)
