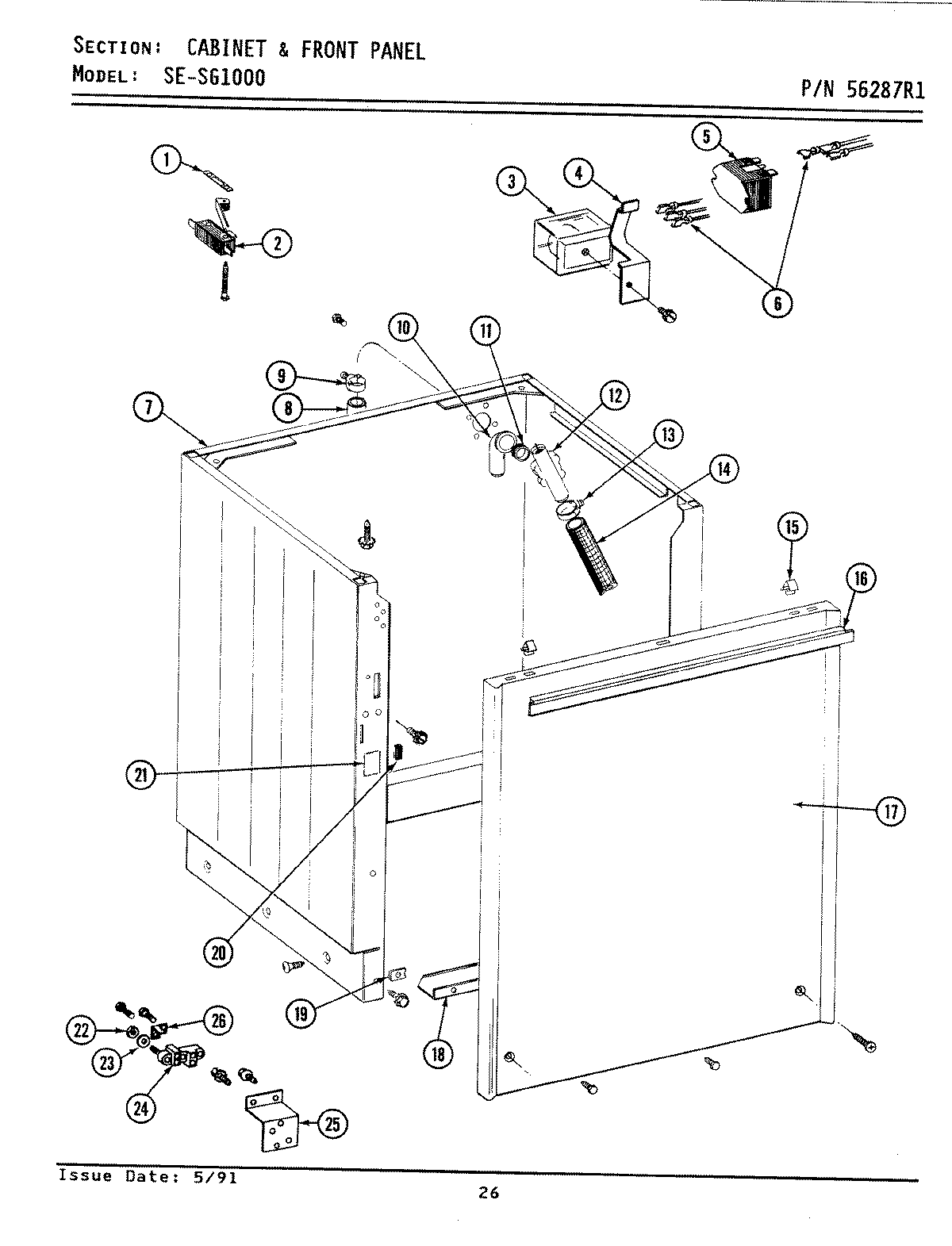

SE1000 03 – CABINET & FRONT PANEL

Products

Position	Product
1	MAY 210866
2	MAY 202476
2	MAY 213501
3	MAY 206421
4	SCREW, BUSHINGS
4	SPRING CLIP
5	MAY 901961
6	MAY 206423
7	MAY 206411
7	WP27001200 Whirlpool Screw
7	MAY 207207
7	213007 Whirlpool Screw #12
8	WP22003410 Whirlpool Drain Hose
8	MAY Y059137
9	MAY 200461
10	MAY 214764
11	WP214765 Whirlpool Gasket
12	206638 Whirlpool Break Siphon Connector Kit
12	WPY014874 Whirlpool Screw
13	WP285655 Whirlpool Hose Clamp
14	WP22001448 Whirlpool Drain Pump Hose
15	MAY 215711
15	MAY 212982
16	MAY 215266
17	MAY 206550
17	MAY 207205
17	WP22001496 Whirlpool Screw
17	SCREW
18	MAY 213846
18	WP90767 Whirlpool Screw
19	MAY 215075
20	MAY 214376
21	MAY 314609
22	WP112432 Whirlpool Nut Assembly
23	WPY311270 Whirlpool Washer TE
24	PART NOT USED
25	PART NOT USED
26	PART NOT USED
