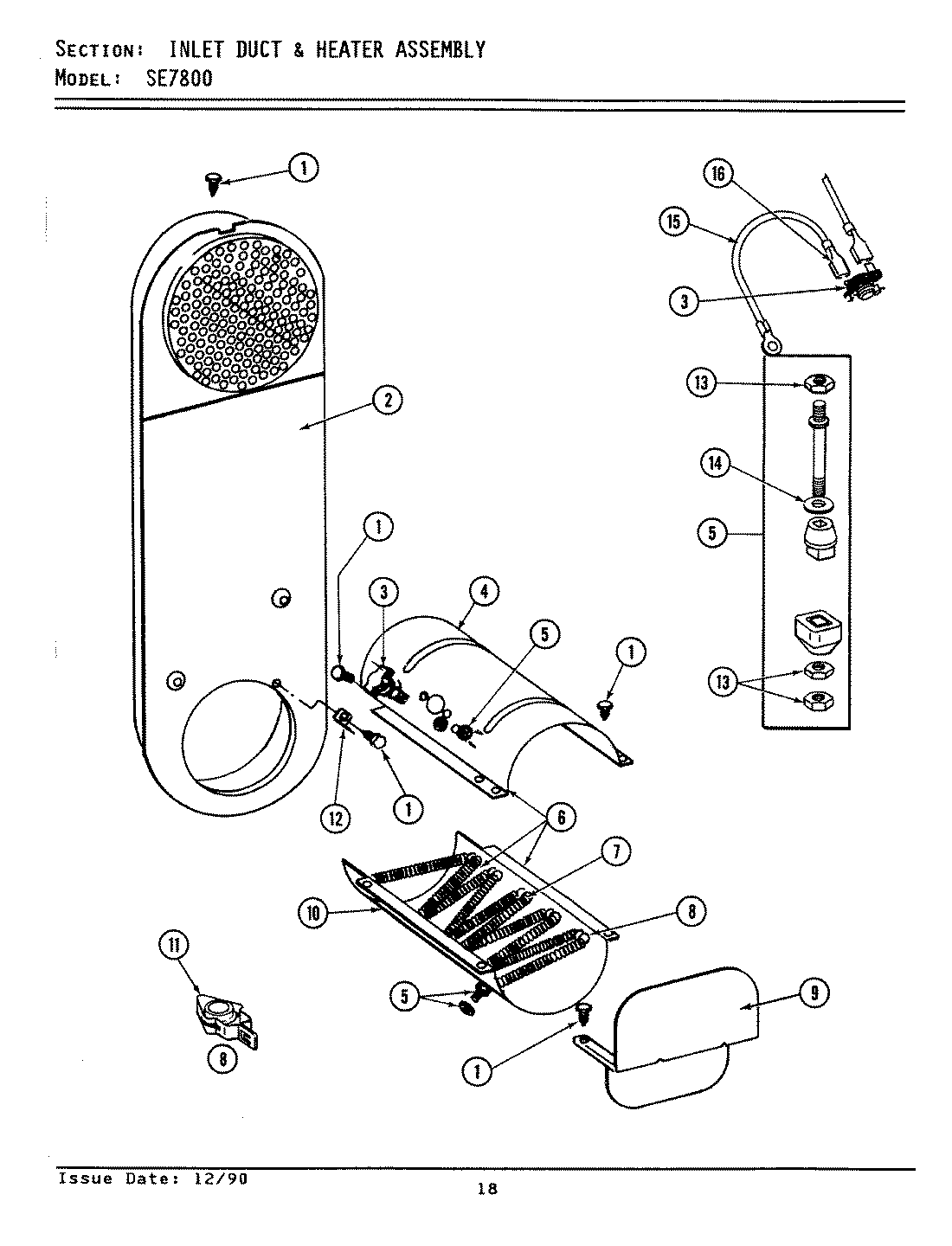

SE7800 10 – INLET DUCT & HEATER ASSEMBLY (SE7800)

Products

PositionProduct
1WP90767 Whirlpool Screw
2MAY Y303362
3WP303896 Whirlpool High Limit Thermostat
3WP303396 Whirlpool Thermostat
4MAY 314502
5Y304596 Whirlpool Terminal Insulator Assembly
6MAY Y306111
7MAY 314503
8WPY303881 Whirlpool Clip and Insulator
9MAY 314504
10MAY 314501
11MAY Y313270
12MAY Y312890
13WP112432 Whirlpool Nut Assembly
14WP311093 Whirlpool Washer 7
15WPY304693 Whirlpool Wire Jumper
16MAY 210745
