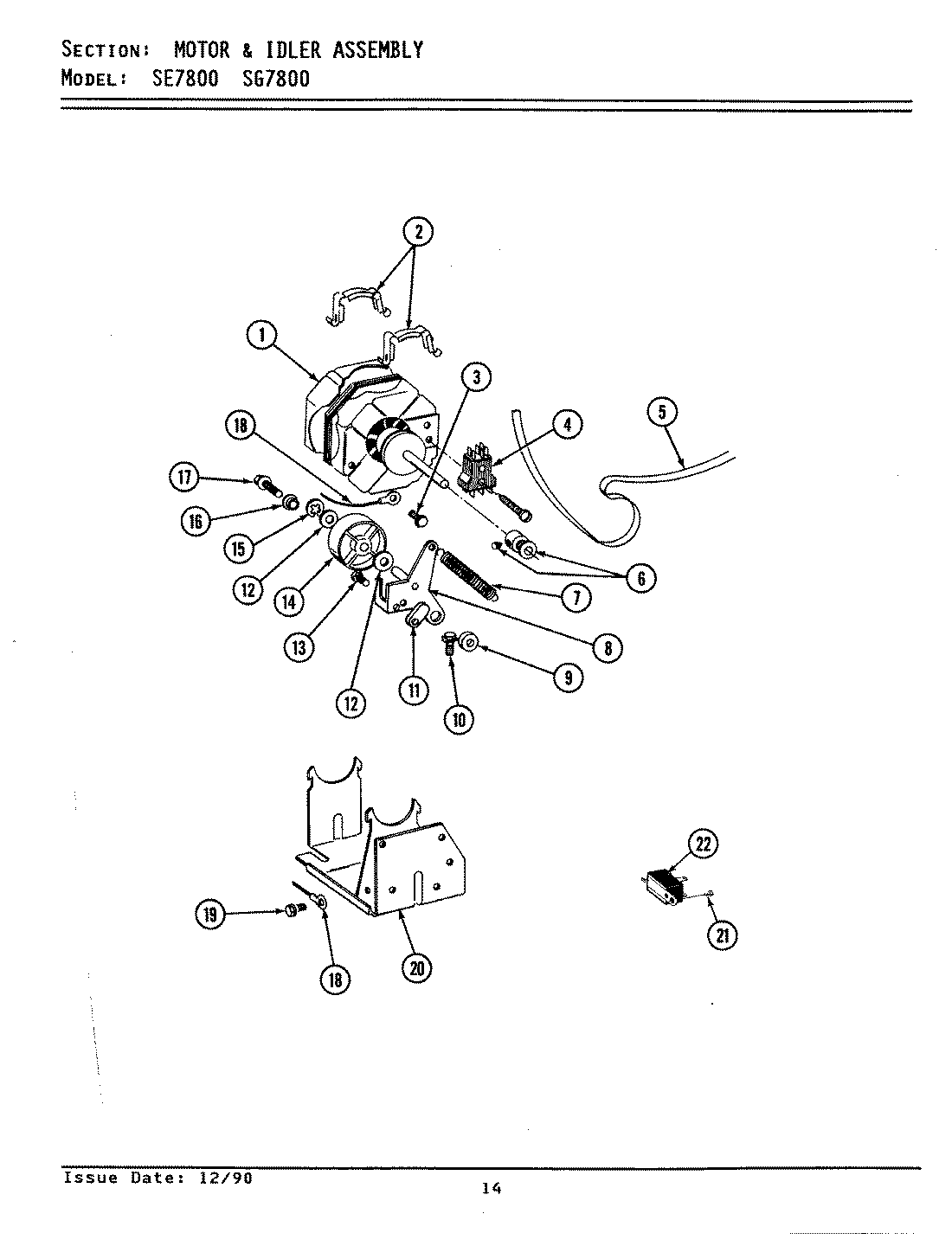

SE7800 12 – MOTOR & IDLER ASSEMBLY

Products

Position	Product
1	W10411000 Whirlpool Washer Dryer Drive Motor
2	WPY015825 Whirlpool Motor Clip
4	MAY 306207
4	MAY Y303877
5	MAY 314774
6	MAY Y053241
6	MAY 306099
7	MAY 314473
8	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
9	MAY 314457
10	MAY Y313561
11	MAY 314456
12	MAY Y312527
13	MAY Y312057
14	WP6-3037050 Whirlpool Idler Pulley
15	WP354987 Whirlpool C-Clip
16	SLEEVE, IDLER ARM —-S
17	MAY Y310842
18	MAY 901220
19	WP90767 Whirlpool Screw
20	MAY 306054
21	WPW10139210 Whirlpool Screw
22	WP694419 Whirlpool Buzzer Adjuster
