SE950PEKW0 04 – COOKTOP

SE950PEKW0 04 – COOKTOP

Written by

in

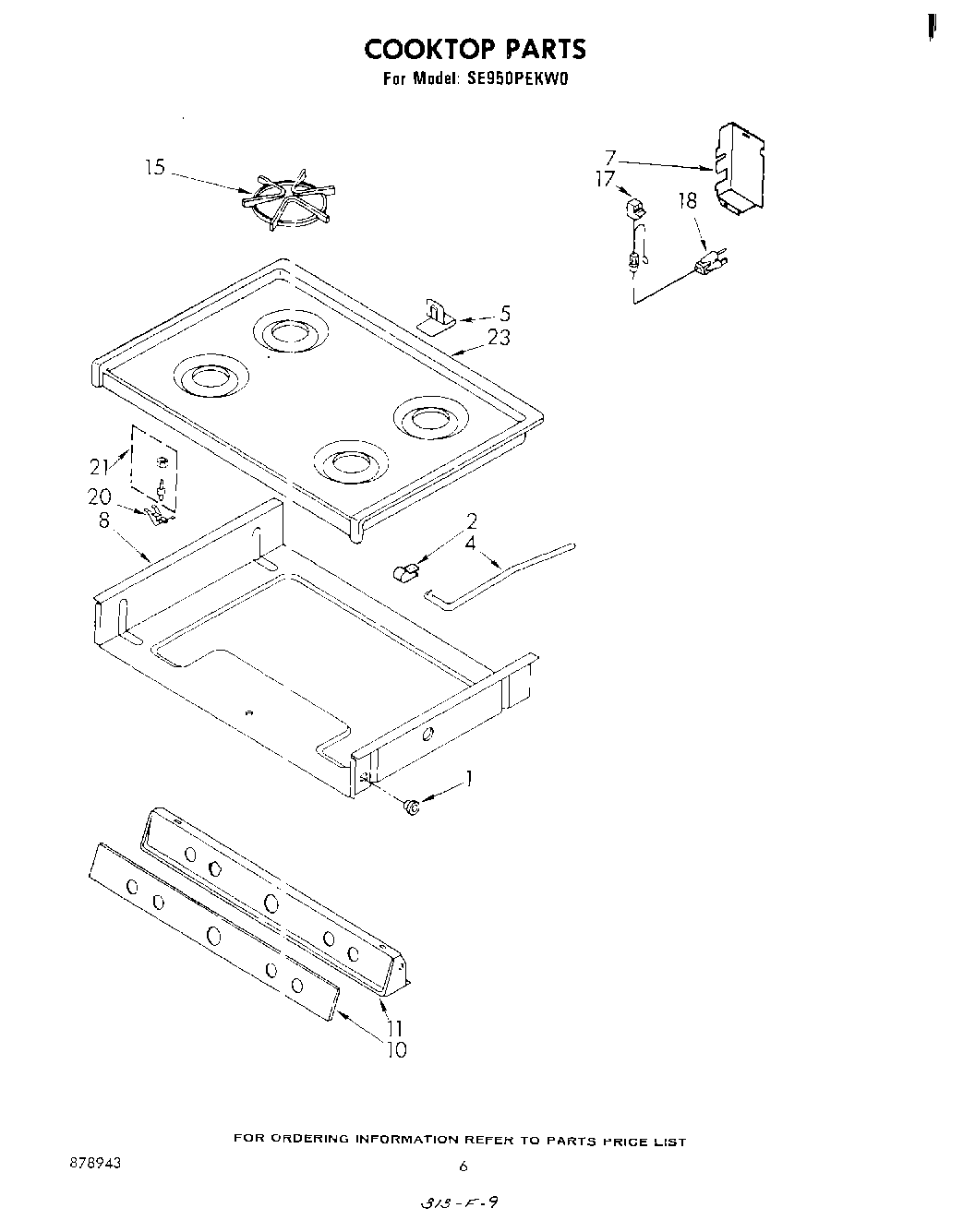

SE950PEKW0 04 – COOKTOP

Products

Position	Product
1	Bushing, Snap
2	Clamp, Top Stop
4	Stop, Cook Top
5	Spacer, Main Top
7	Cover, Wire
8	Bottom, Burner Box
10	Inlay, Manifold Panel
11	Panel, Manifold (Harvest Gold)
11	Panel, Manifold (White)
11	Panel, Manifold (Coffee)
11	Panel, Manifold (Almond)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (Almond)
23	Top, Main (White)
23	Top, Main (Harvest Gold)
23	Top, Main (Brushed Chrome)
23	Top, Main (Coffee)
