SE950PEPW0 03 – MANIFOLD
Written by
in

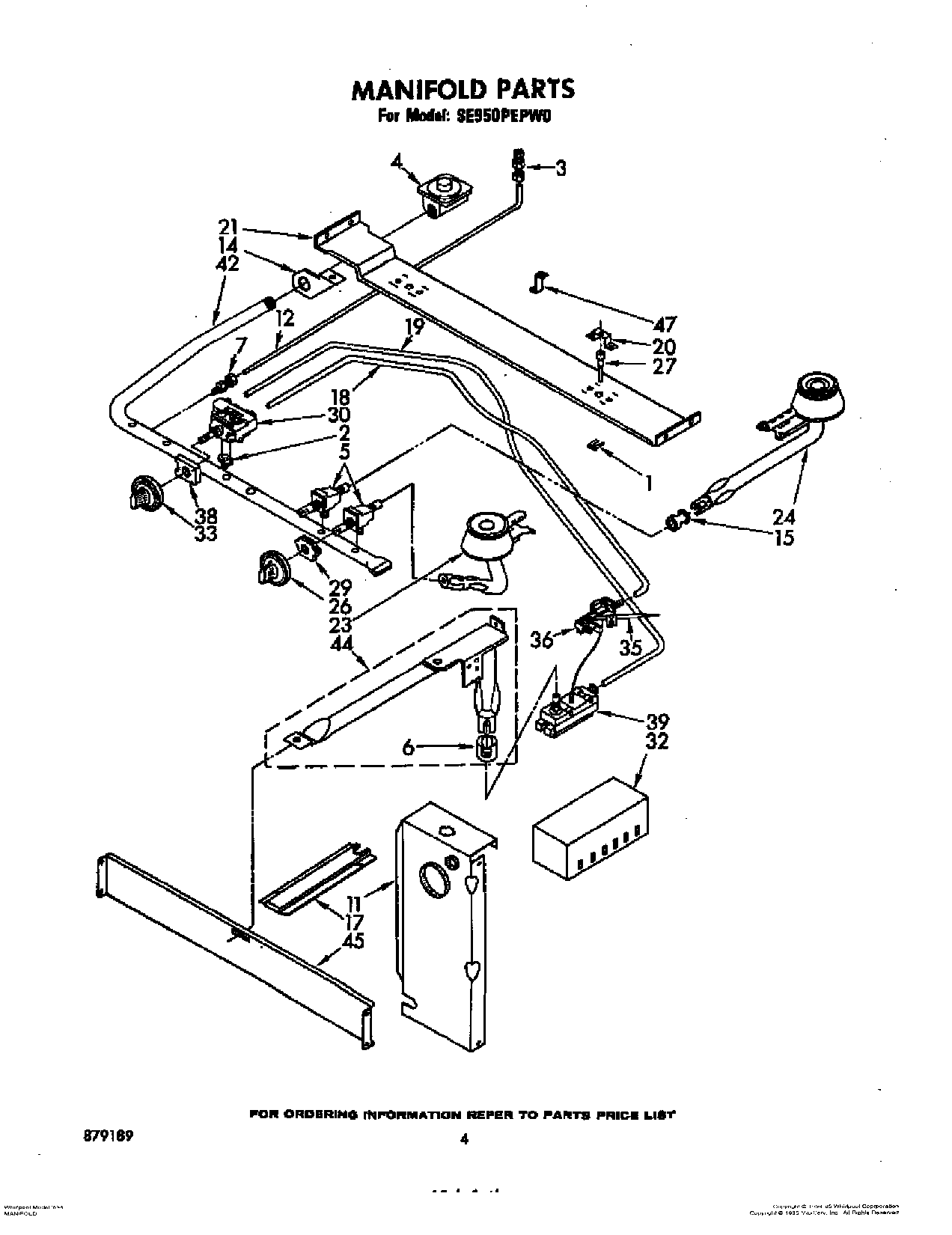

SE950PEPW0 03 – MANIFOLD
Products
Position
Product
1
Clip, Top Ignitor (2)
2
Fitting, Flange
3
Fitting, Straight
4
Regulator, Pressure
5
Valve, Top Burner (4)
6
Shutter, Oven Burner Air
7
Fitting, Straight
11
Bracket, Wire
12
Tubing, Manifold/Straight Fitting
14
Support, Inlet Pipe
15
Cap, Top Burner Air Mixer
17
Raceway Wire
18
Tubing, Control/Pilot
19
Tubing, Oven
20
Target, Top Ignitor (2)
21
Hanger, Top Burner
23
Burner, Top Front (2) (Includes Illus. 16)
24
Burner, Top Rear (2) (Includes Illus. 16)
26
Handle, Top Valve (4)
27
Ignitor, Top Burner (Left Side)
27
Ignitor, Top Burner (Right Side)
29
Switch, Top Ignitor (4)
30
Control, Oven
32
Control, Ignitor
33
Dial, Oven Control
35
Ignitor, Oven Burner
36
Lighter, Oven Burner
38
WP878009 Whirlpool Igniter Switch
39
Valve, Oven Light Safety
42
Pipe, Manifold
44
Burner, Oven
45
Deflector, Heat
47
Support, Burner Hanger
←
