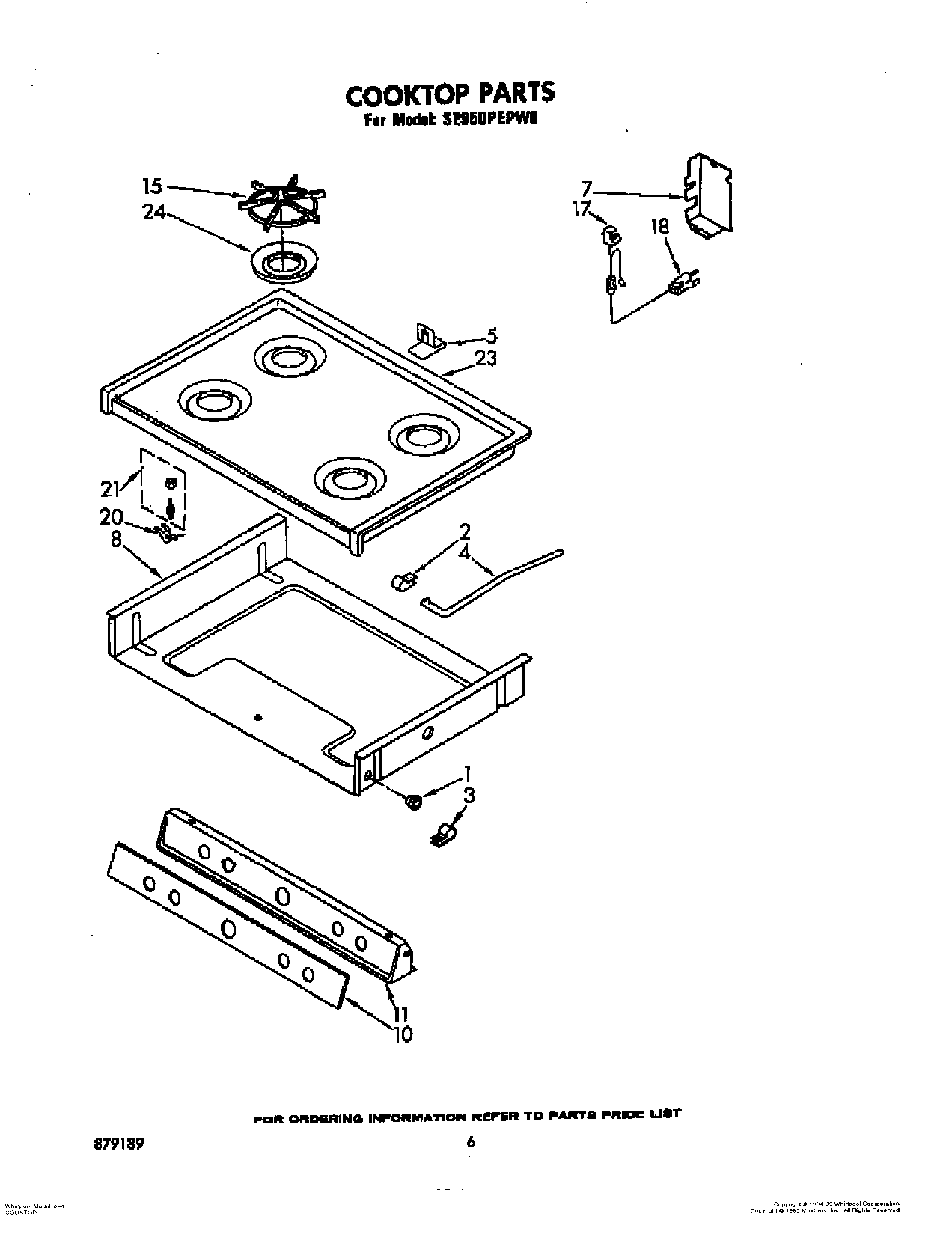

SE950PEPW0 04 – COOKTOP

SE950PEPW0 04 – COOKTOP

Written by

in

SE950PEPW0 04 – COOKTOP

Products

Position	Product
1	Bushing, Snap
2	Clamp, Top Stop
3	Clamp, Wire
4	Stop, Cook Top
5	Spacer, Main Top
7	Cover, Wire
8	Bottom, Burner Box
10	Inlay, Manifold Panel
11	Panel, Manifold (White)
11	Panel, Manifold (Toast)
11	Panel, Manifold (Almond)
11	Panel, Manifold (Toast)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (Brushed Chrome)
23	Top, Main (White)
23	Top, Main (Almond)
23	Top, Main (Toast)
23	Top, Main (Platinum)
24	Bowl, Drip (4
