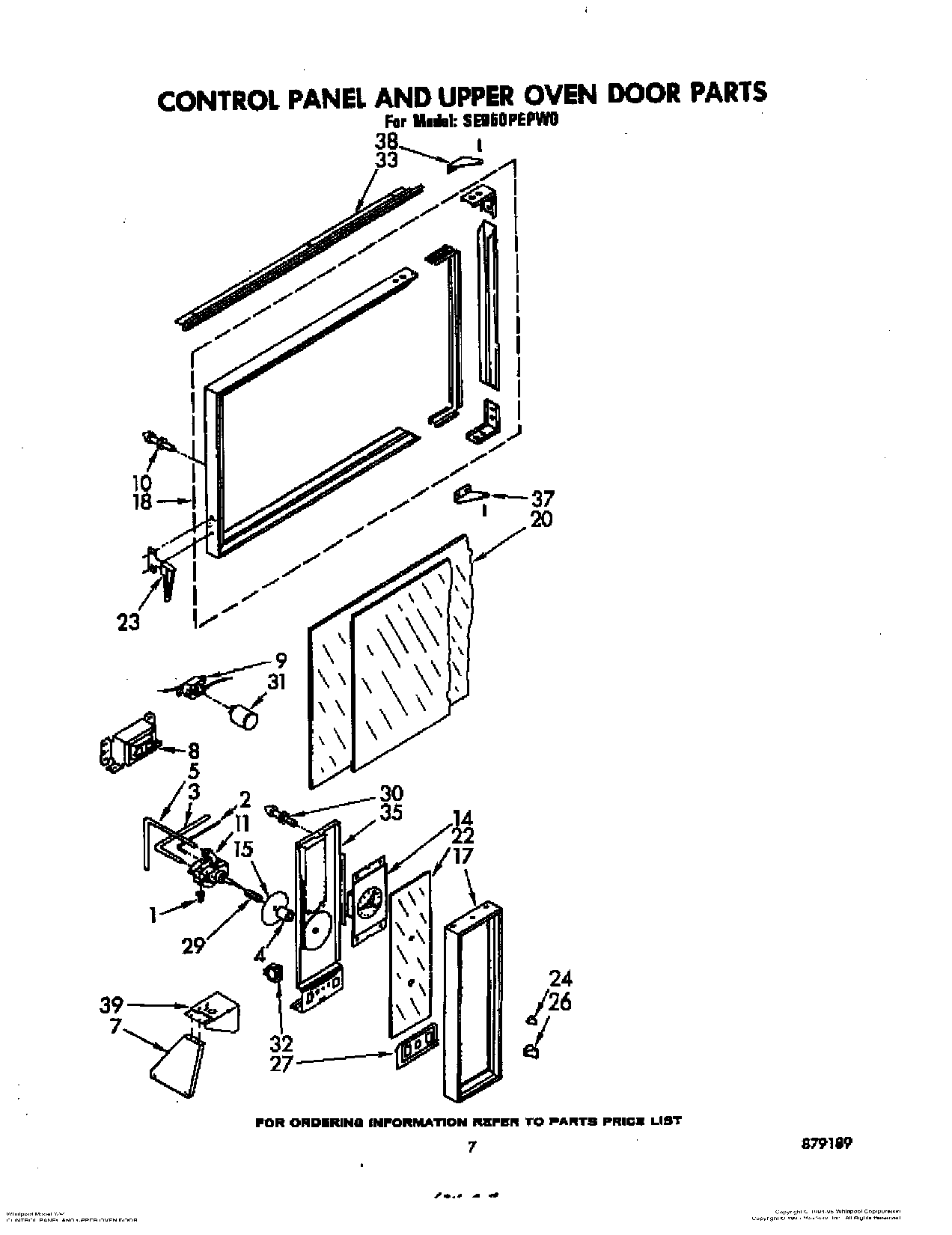

SE950PEPW0 05 – CONTROL PANEL AND UPPER OVEN DOOR

Products

Position	Product
1	Fitting, Flange
2	Tubing, Oven Control/Lighter
3	Tubing, Control/Valve
4	Spacer, Disc Dial
5	Tubing, Straight Fitting/Oven
7	Brace, Oven Control
8	Ballast, Fluorescent Light
9	Base, Starter
10	Strike, Door Catch
11	Control, Oven
14	Clock, Regular
15	Dial, Oven Control
17	Frame, Control Panel
18	Frame, Door
20	Glass, Oven Door (Outside)
20	Glass, Oven Door (Inside)
22	Glass, Control Panel
23	Handle, Door
24	Knob, Clock (2)
26	Knob, Oven Control
27	Plate, Switch
29	Spring, Disc Dial
30	Strike, Main Top (2)
31	Starter, Fluorescent Light
32	Switch, Rocker
33	Trim, Vent
35	Support, Clock
37	Hinge, Door Bottom
38	Hinge, Door Top
39	Support, Oven Control
