SE950PEPW0 07 – BACKGUARD

SE950PEPW0 07 – BACKGUARD

Written by

in

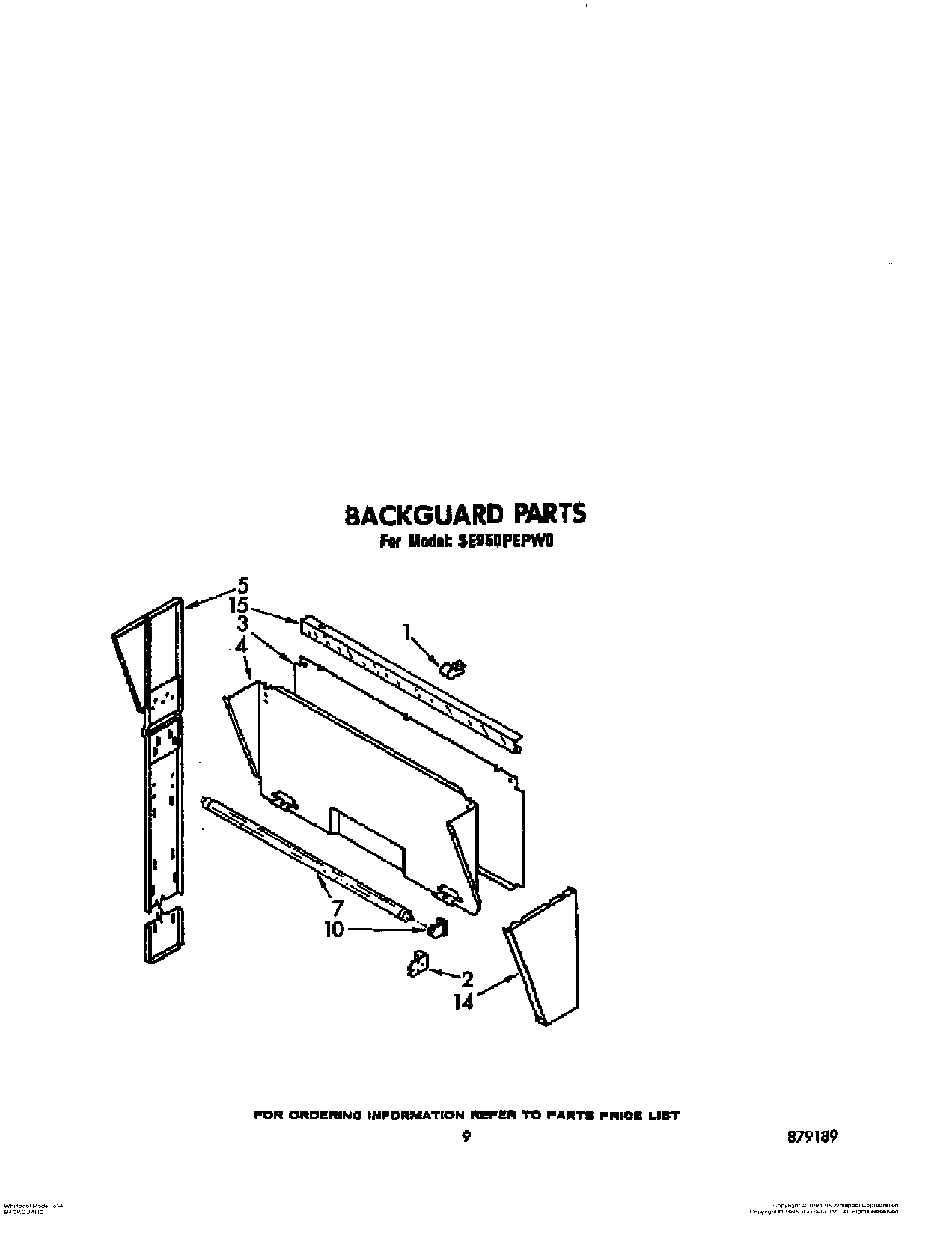

SE950PEPW0 07 – BACKGUARD

Products

PositionProduct
1Clamp, Wire
2Bracket, Backguard Lampholder (2)
3Cover, Wire
4Backsplash (Toast)
4Backsplash (White)
4Backsplash (Almond)
4Backsplash (Platinum)
5Support, Cabinet (Right Side)
5Support, Cabinet (Left Side)
7Bulb, Fluorescent Light
10Socket, Fluorescent Light (Left Side)
10Socket, Fluorescent Light (Right Side)
14Panel, Cabinet Support (Left Side) (Almond)
14Panel, Cabinet Support (Lef
14Panel, Cabinet Support (Left Side) (Toast)
14Panel, Cabinet Support (Left Side) (Platinum Panel, Cabinet Support (Right Side))
14Panel, Cabinet Support (Left Side) (Toast)
14Panel, Cabinet Support (Left Side) (Almond)
14Panel, Cabinet Support (Left) (White)
14Panel, Cabinet Support (Left Side) (White)
15Reflector, Light
