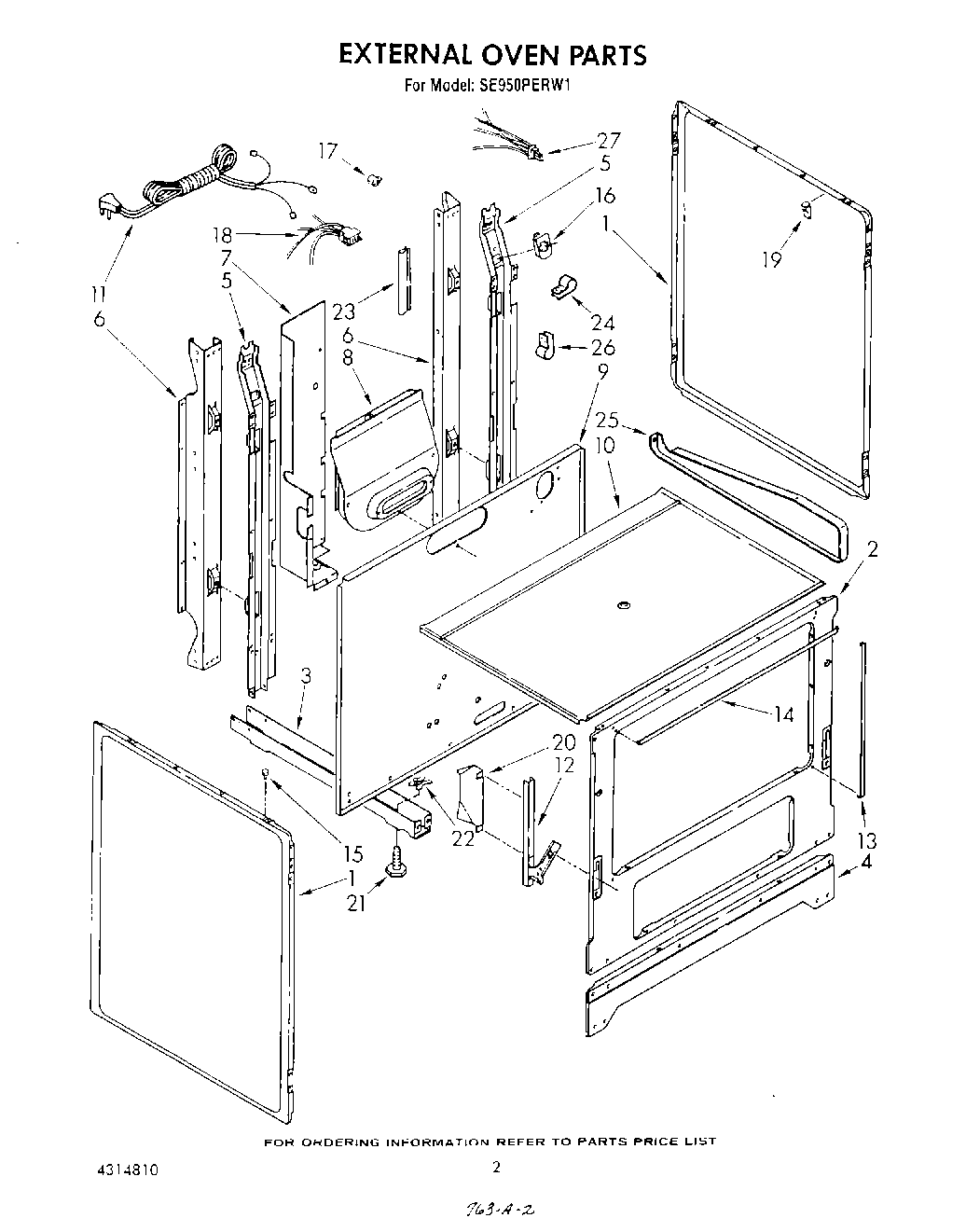

SE950PERW1 02 – EXTERNAL OVEN

Products

PositionProduct
1Panel, Side (2) (Platinum)
1Panel, Side (2) (White)
1Panel, Side (2) (Almond)
1Panel, Side (2) (Toast)
2Frame, Front
3Rail, Base (2)
4Screw, 10-12 X 1/2 (4)
4Base, Front
5Screw, 10-32 X 1/2 (1)
5Support, Main (2)
6Support, Rear (2)
7Cover, Wire
7Screw, 10-12 X 3/8 (2)
8Flue, Box
8SCREW
9Panel, Rear
10WP308685 Whirlpool Microwave Screw
10Burner Box
11WP9757891 Whirlpool Power Cord
12Hinge. Door (2)
12Screw, 10-24 X 3/8 (2)
13Seal, Door (2) (Side)
14Seal, Door (Top)
15Bumper, Cooktop (2)
16Bracket, Receptable
17Strain Relief
18Block, Disconnect
19Clip, Wire
20Shield, Insulation
21Leg, Leveler (4)
22Nut (4)
23Safe Edge
24Strain Relief
25Support, Burner Box (Left Hand)
25Support, Burner Box (Right Hand)
26Strain Relief
27Block, Disconnect
