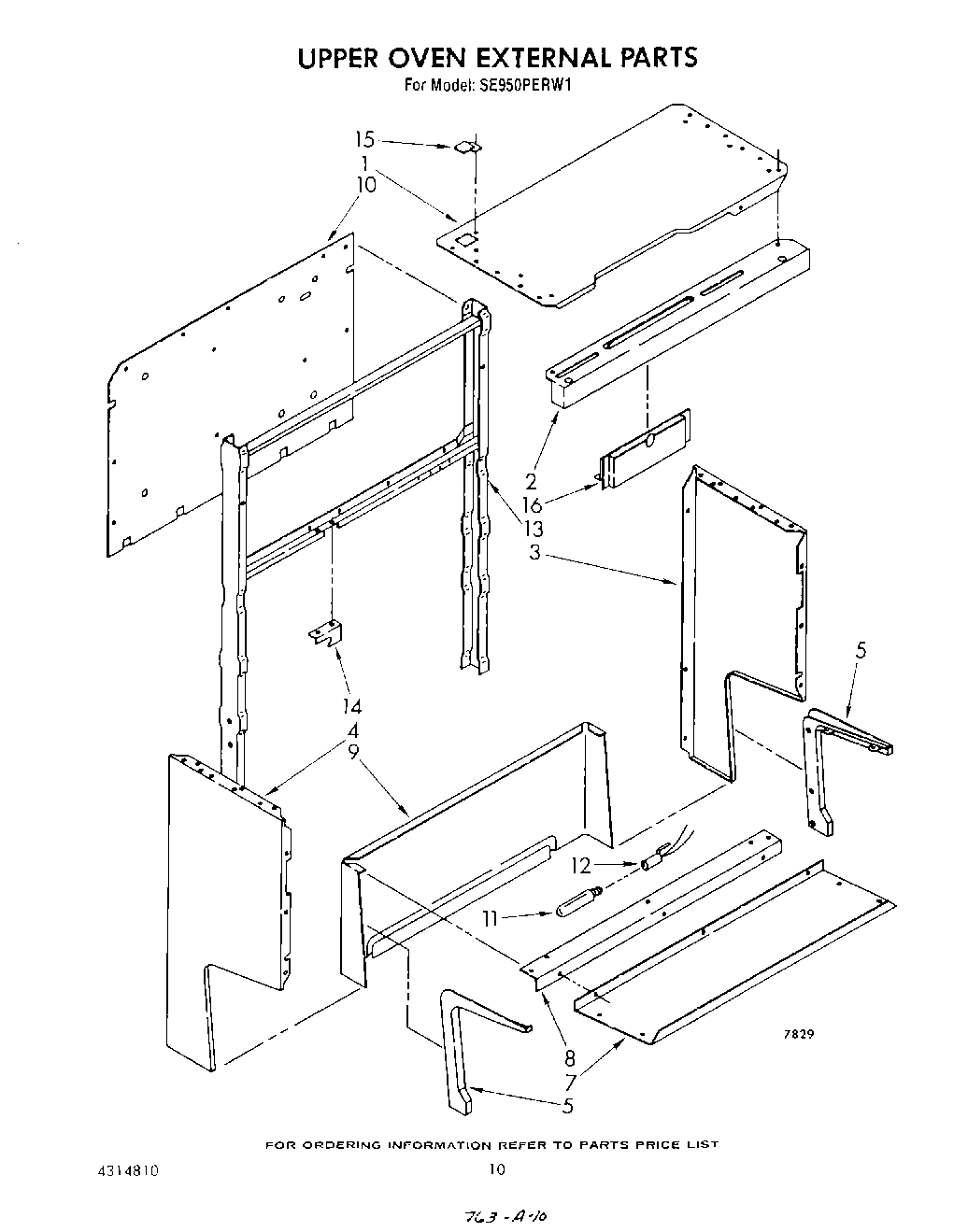

SE950PERW1 07 – UPPER OVEN EXTERNAL

SE950PERW1 07 – UPPER OVEN EXTERNAL

Written by

in

SE950PERW1 07 – UPPER OVEN EXTERNAL

Products

PositionProduct
1Panel, Top
2Trim, Top
3Panel, Side (R.H.) (Platinum)
3Panel, Side (R.H.) (Toast)
3Panel, Side (R.H.) (White)
3Panel, Side (R.H.) (Almond)
4Panel, Side (L.H) (White)
4Panel, Side (L.H) (Almond)
4Panel, Side (LH.) (Toast)
4Panel, Side (LH.) (Platinum)
5Support, Side Panel (L.H.)
5Support, Side Panel (R.H.)
7Panel, Bottom
8Reflector, Light
9Backsplash (Toast)
9Backsplash (White)
9Backsplash (Almond)
9Backsplash (Platinum)
10Panel, Rear Upper
11Bulb
12Socket
13Support, Frame
14Bracket, Fitting
15Cover, Receptacle
16Flue, Cover
