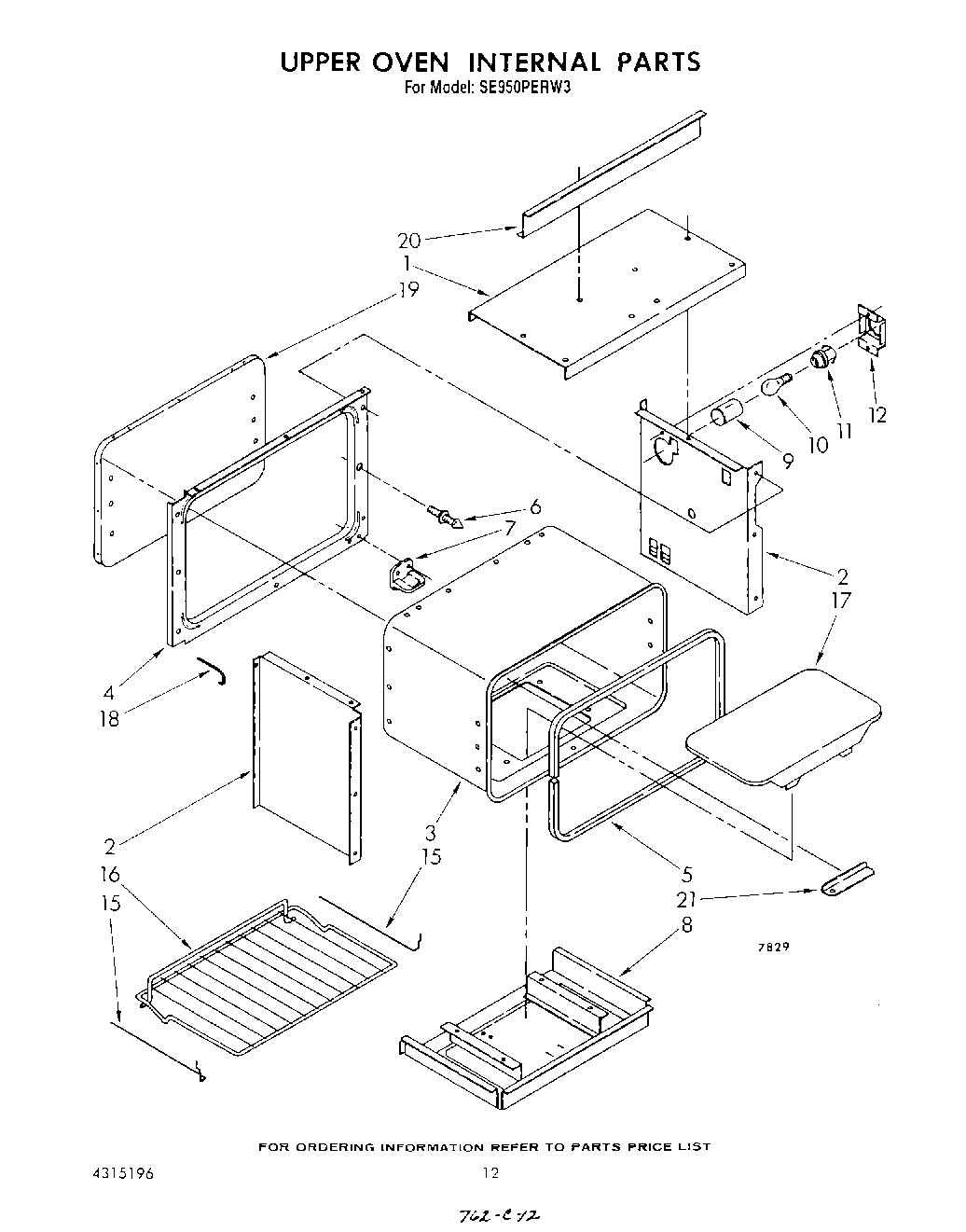

SE950PERW3 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instuctions, Installation
	Guide, Cooking
1	Baffle
2	Side, Burner Box (R.H.)
2	Side, Burner Box (L.H.)
3	Liner, Oven
4	Frame, Front
5	Seal, Door
6	Strike
7	Support, Door
8	Housing, Burner
9	Reflector, Light
10	RANGE ONLY 40W 120V APPL BULB
11	Receptacle, Light
12	Bracket, Light
15	Support, Rack (Left Hand)
15	Support, Rack (Right Hand)
16	Rack, Oven
17	Bottom, Oven
18	Bolt, Hook (4)
18	Nut, Hex
19	Liner, Oven Back
20	Support
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	Plate, Cover
21	WPW10208653 Whirlpool Insulation
