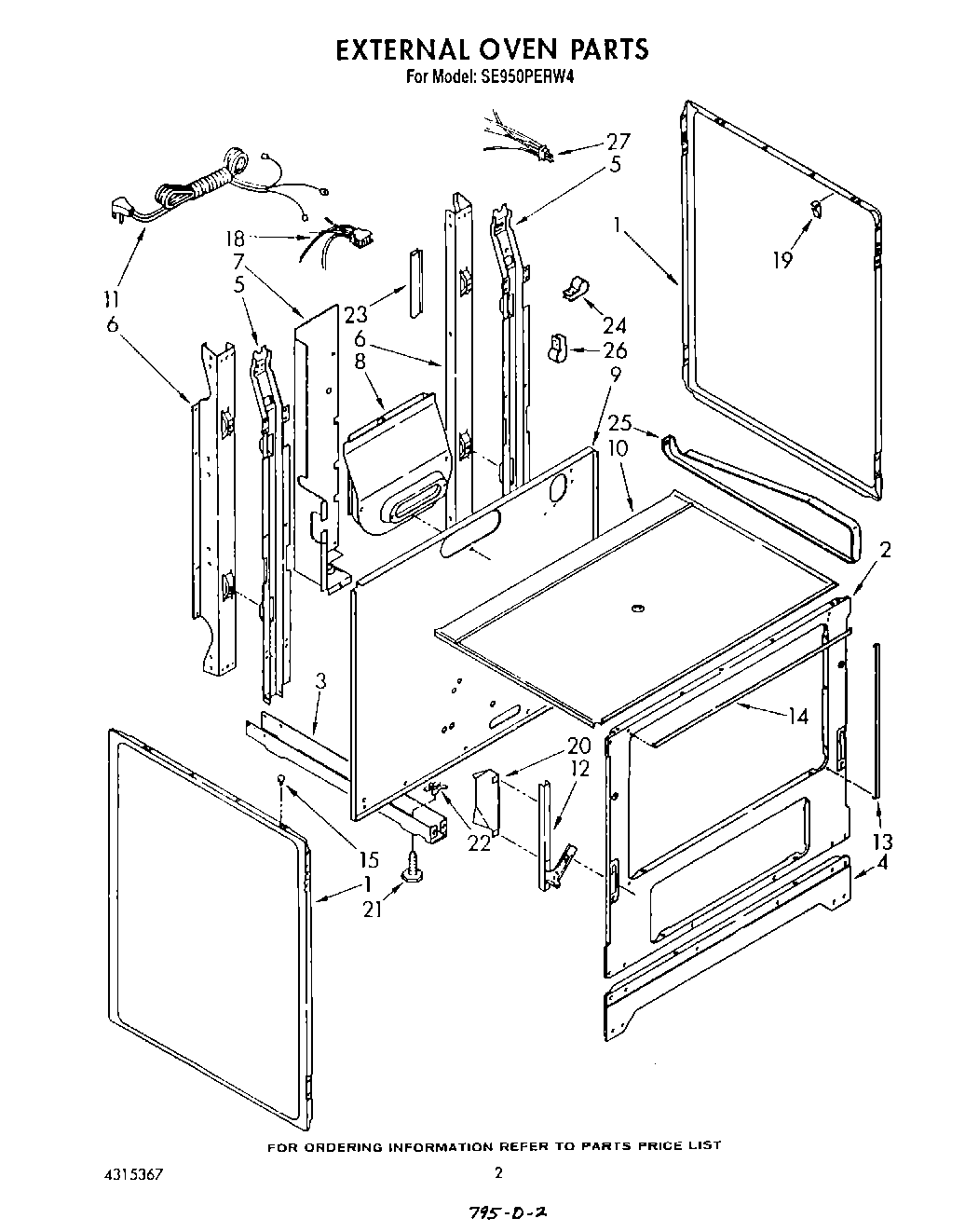

SE950PERW4 02 – EXTERNAL OVEN

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Screw, 10-12 X 1/2 (4)
4	Base, Front
5	Support, Main (2)
5	Screw, 10-32 X 1/2 (1)
6	Support, Rear (2)
7	Screw, 10-12 X 3/8 (2)
7	Cover, Wire
8	SCREW
8	Bar, Slide
9	Panel, Rear
10	Burner Box
10	WP308685 Whirlpool Microwave Screw
11	Cord, Power
12	Screw, 10-24 X 3/8 (2)
12	Hinge. Door (2)
13	Seal, Door (2) (Side)
14	Seal, Door (Top)
15	Bumper, Cooktop (2)
18	Block, Disconnect
19	Clip, Wire
20	Shield, Insulation
21	Leg, Leveler (4)
22	Nut (4)
23	Safe Edge
24	Strain Relief
25	Support, Burner Box (Left Hand)
25	Support, Burner Box (Right Hand)
26	Strain Relief
27	Block, Disconnect
