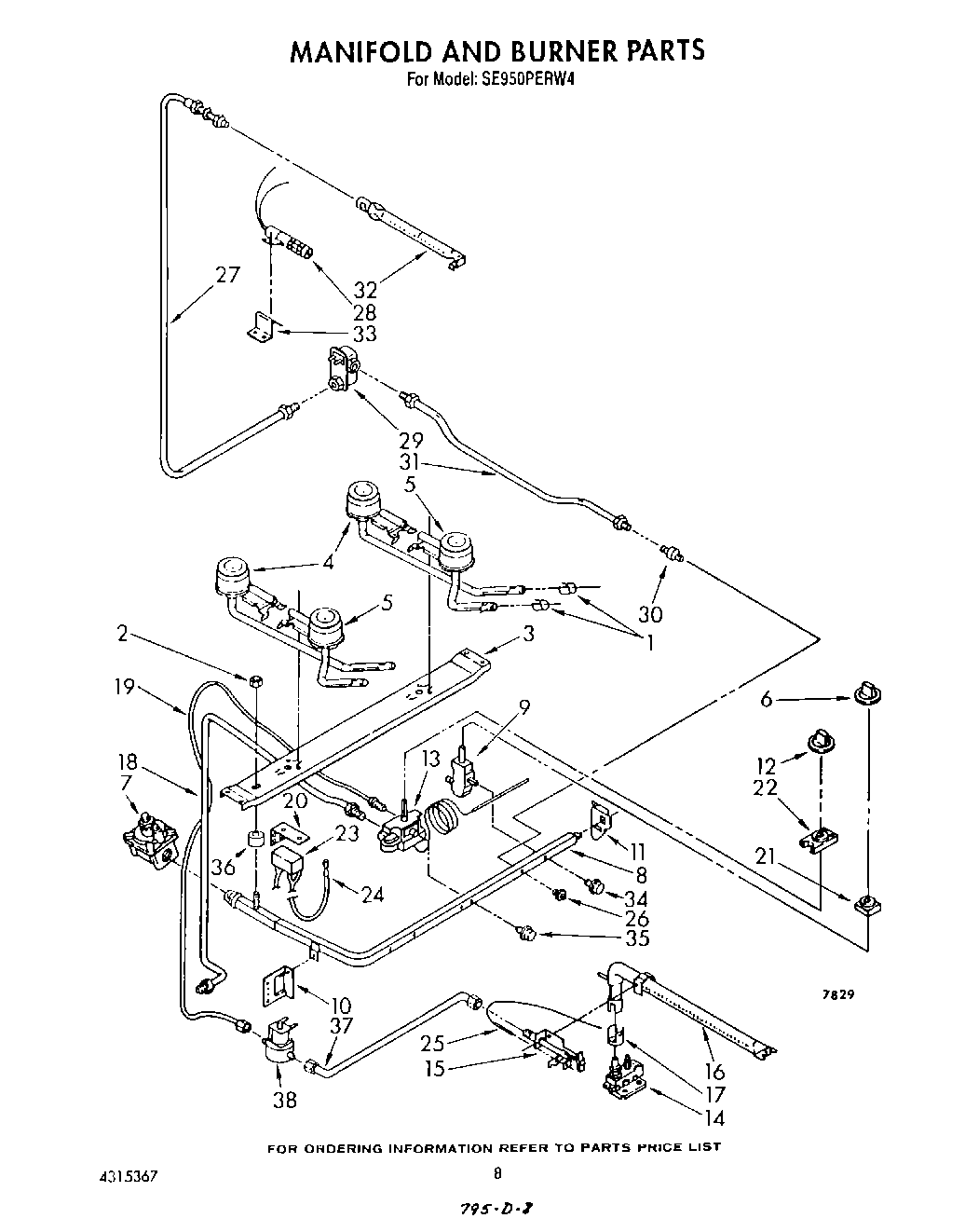

SE950PERW4 06 – MANIFOLD AND BURNER

Products

Position	Product
1	Shutter, Air (4)
2	Nut, Hex
3	Support, Burner
4	Burner, Rear (2)
5	Burner, Front (2)
5	Screw, 10-12 X 3/8 (2)
6	WP4179282 Whirlpool Knob
7	Regulator, Pressure
8	Manifold
9	Valve, 180~ (4) (Includes Ill. No. 46)
10	Support, Manifold (L.H.)
11	Support, Manifold (R.H.)
11	WP308685 Whirlpool Microwave Screw
12	WPY07506601 Whirlpool Thermal Knob
13	Thermostat (Includes Ill. No. 45)
14	WP3387230 Whirlpool Screw
14	Valve, Safety
15	Pilot
16	Burner, Oven
17	Shutter, Burner
18	Tubing 3/8`` (Thermostat To Safety Valve)
19	Tubing 3/16`` (Thermostat To Pilot)
20	Plate, Spark Module
21	WP4157180 Whirlpool Surface Burner Ignition Switch
22	WP878009 Whirlpool Igniter Switch
23	Module, Spark
24	Ignitor (R.H.)
24	Ignitor (L.H.)
25	Ignitor, Oven
26	Screw & Gasket Assembly
27	Tubing 3/8`` (Solenoid Valve To Burner)
28	Ignitor, Upper Oven
29	Valve
30	Filter, Pilot (Incls. Item No. 12)
31	Tubing 3/8`` (Shut Off Valve To Solenoid Valve)
32	Burner, Upper Oven
33	Bracket, Ignitor
34	Bolt, Thermostat Mounting (2)
35	Bolt, Valve Mounting
36	Spacer, Manifold
37	Tubing 3/16`` (Solenoid To Burner Pilot)
38	Valve, Solenoid
