SE950PERW4 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL

SE950PERW4 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL

Written by

in

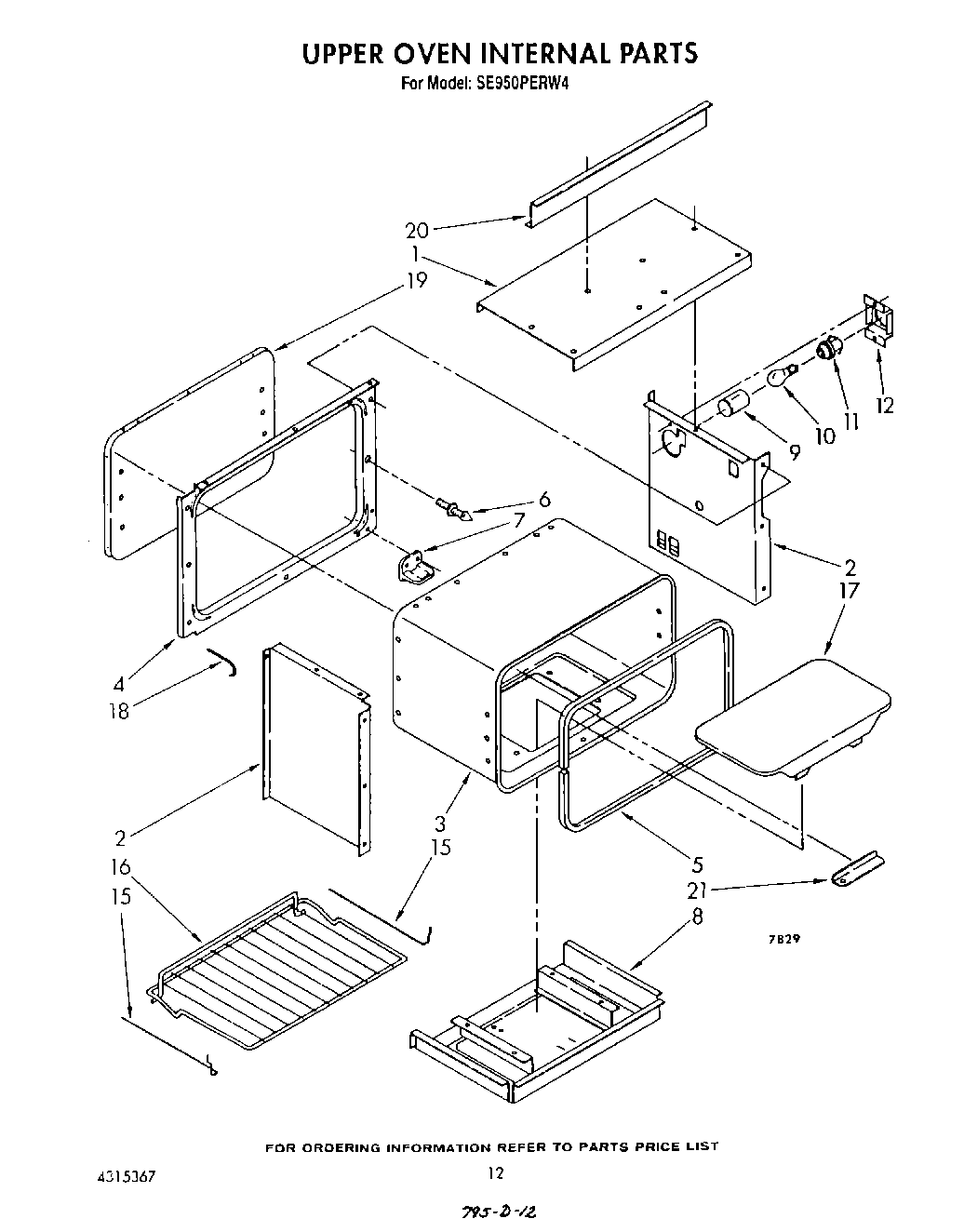

SE950PERW4 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Instuctions, Installation
Guide, Cooking
1Baffle
2Side, Burner Box (R.H.)
2Side, Burner Box (L.H.)
3Liner, Oven
4Frame, Front
5Seal, Door
6Strike
7Support, Door
8Housing, Burner
9Reflector, Light
10RANGE ONLY 40W 120V APPL BULB
11Receptacle, Light
12Bracket, Light
15Support, Rack (Left Hand)
15Support, Rack (Right Hand)
16Rack, Oven
17Bottom, Oven
18Bolt, Hook (4)
18Nut, Hex
19Liner, Oven Back
20Support
21WPW10208653 Whirlpool Insulation
21FOIL, ALUMINUM OVEN (18“ X 25 )
21Plate, Cover
