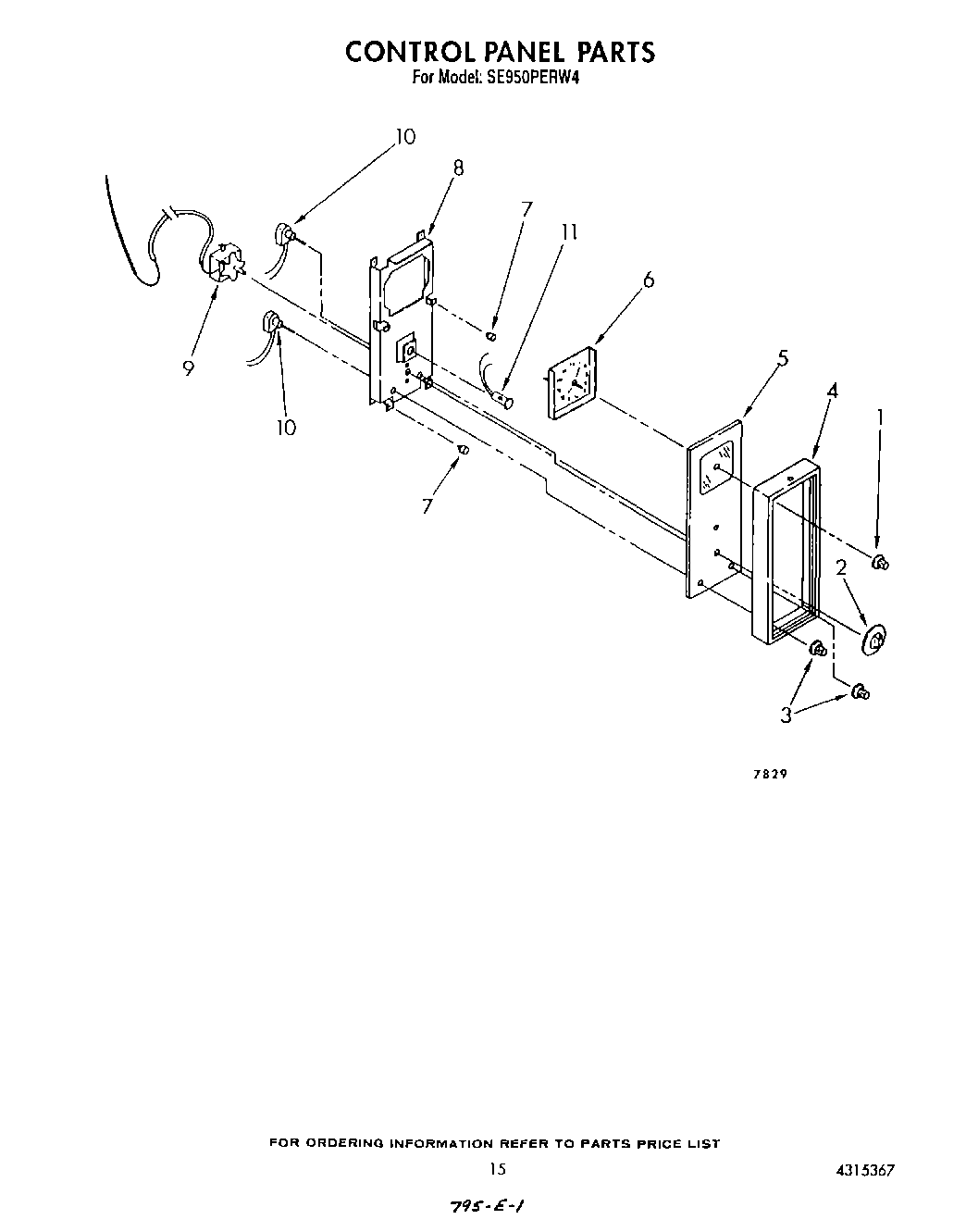

SE950PERW4 10 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Knob, Timer |
| 2 | Knob, Thermostat |
| 3 | Knob, Light |
| 4 | Frame |
| 5 | Glass |
| 6 | Clock |
| 7 | Bumper, Rubber (6) |
| 8 | Bracket |
| 9 | Thermostat |
| 10 | Switch, Light |
| 11 | Light, Indicator (Oven) |
SE950PERW4 10 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Knob, Timer |
| 2 | Knob, Thermostat |
| 3 | Knob, Light |
| 4 | Frame |
| 5 | Glass |
| 6 | Clock |
| 7 | Bumper, Rubber (6) |
| 8 | Bracket |
| 9 | Thermostat |
| 10 | Switch, Light |
| 11 | Light, Indicator (Oven) |
