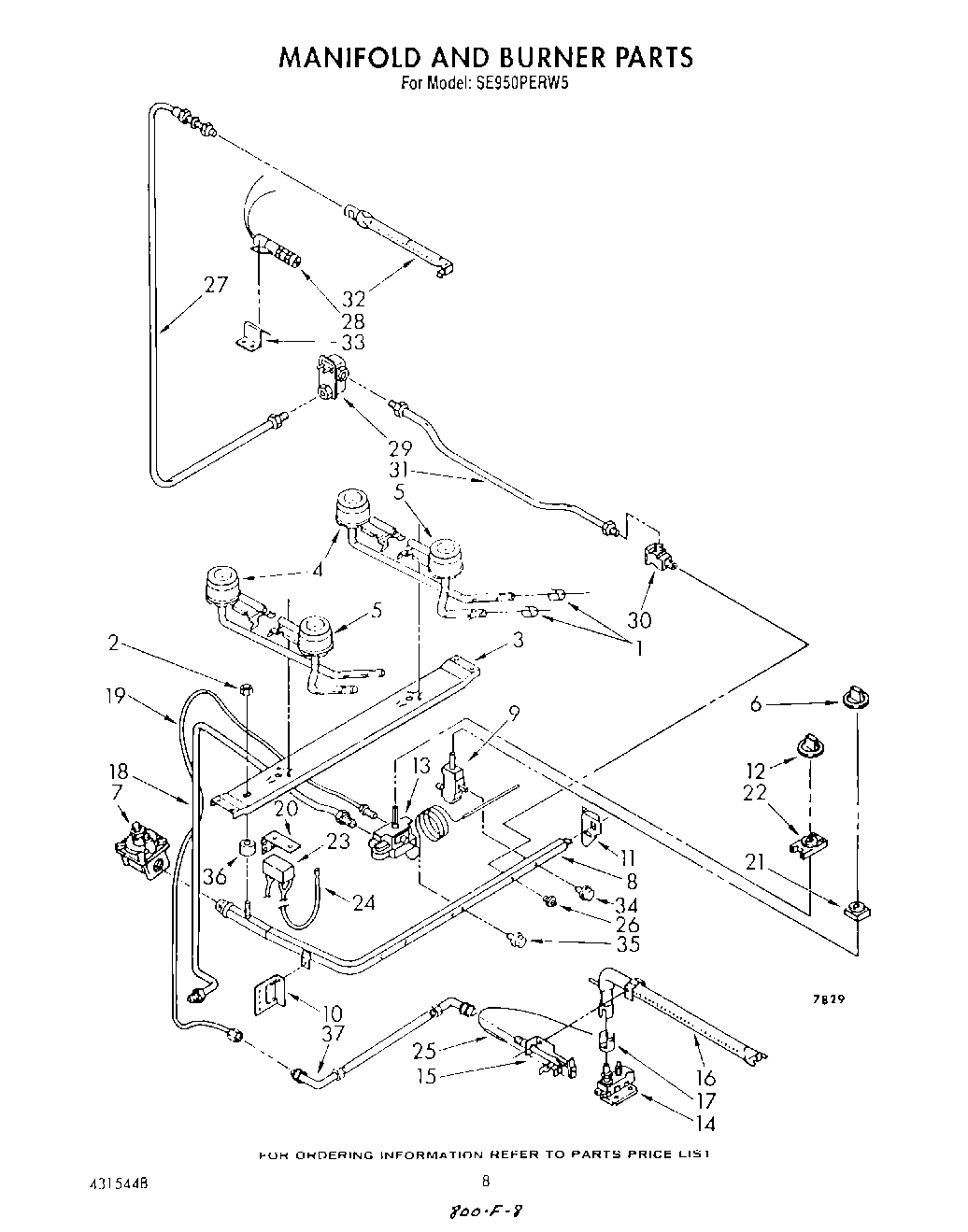

SE950PERW5 06 – MANIFOLD AND BURNER

SE950PERW5 06 – MANIFOLD AND BURNER

Written by

in

SE950PERW5 06 – MANIFOLD AND BURNER

Products

PositionProduct
1Shutter, Air (4)
2Nut, Hex
3Support, Burner
4Burner, Rear (2)
5Screw, 10-12 X 3/8 (2)
5Burner, Front (2)
6WP4179282 Whirlpool Knob
7Regulator, Pressure
8Manifold
9Valve, 180~ (4) (Includes Ill. No. 46)
10Support, Manifold (L.H.)
11Support, Manifold (R.H.)
11WP308685 Whirlpool Microwave Screw
12WPY07506601 Whirlpool Thermal Knob
13Thermostat (Includes Ill. No. 34)
14Valve, Safety
14WP3387230 Whirlpool Screw
15Pilot
16Burner, Oven
17Shutter, Burner
18Tubing 3/8“ (Thermostat To Safety Valve)
19Tubing 3/16“ (Thermostat To Pilot)
20Plate, Spark Module
21WP4157180 Whirlpool Surface Burner Ignition Switch
22WP878009 Whirlpool Igniter Switch
23Module, Spark
24Ignitor (R.H.)
24Ignitor (L.H.)
25Ignitor, Oven
26Screw & Gasket Assembly
27Tubing 3/8“ (Solenoid Valve To Burner)
28Ignitor, Upper Oven
29Valve
30Filter, Pilot
31Tubing 3/8“ (Shut Off Valve To Solenoid Valve)
32Burner, Upper Oven
33Bracket, Ignitor
34Bolt, Thermostat Mounting (2)
35Bolt, Valve Mounting
36Spacer, Manifold
37Tubing 3/16“ (Filter To Burner Pilot)
