SE950PERW5 07 – UPPER OVEN EXTERNAL

SE950PERW5 07 – UPPER OVEN EXTERNAL

Written by

in

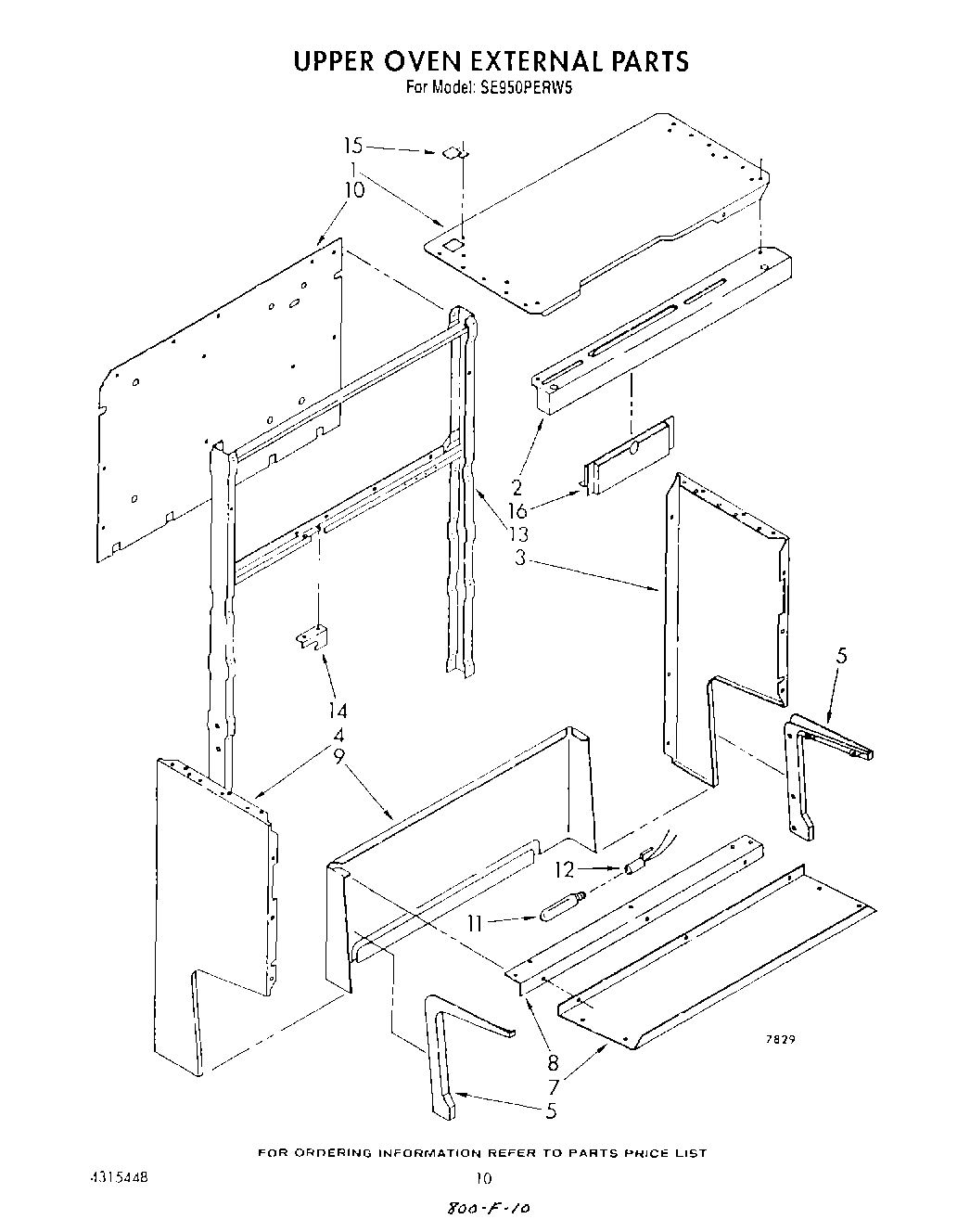

SE950PERW5 07 – UPPER OVEN EXTERNAL

Products

Position	Product
1	Panel, Top
2	Trim, Top
3	Panel, Side (R.H.) (White)
3	Panel, Side (R.H.) (Almond)
4	Panel, Side (L.H) (White)
4	Panel, Side (L.H) (Almond)
5	Support, Side Panel (R.H.)
5	Support, Side Panel (L.H.)
7	Panel, Bottom
8	Reflector, Light
9	Backsplash (White)
9	Backsplash (Almond)
10	Panel, Rear Upper
11	Bulb
12	Socket
13	Support, Frame
14	Bracket, Fitting
15	Cover, Receptacle
16	Flue, Cover
