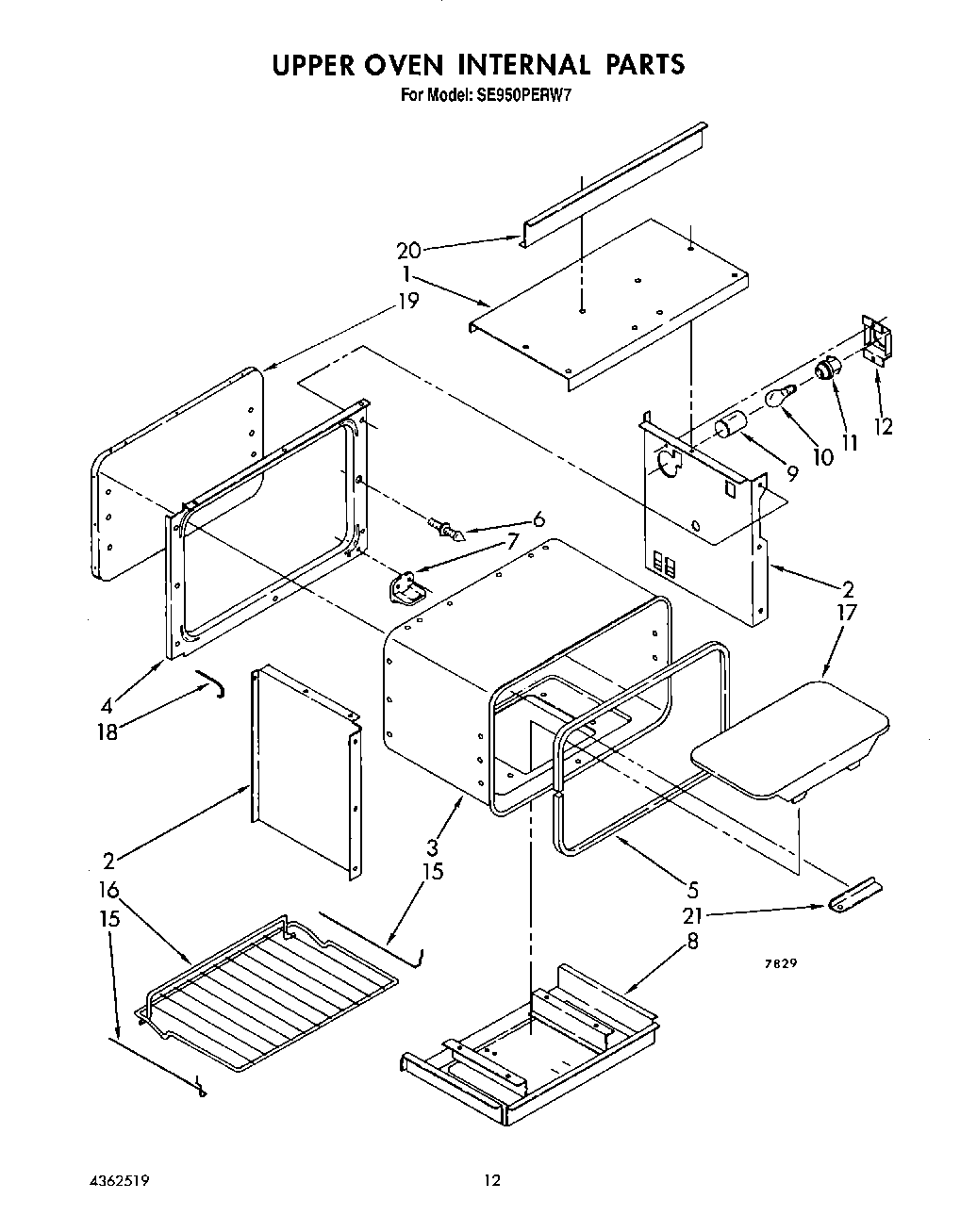

SE950PERW7 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Guide, Cooking
Guide, Use & Care
Instuctions, Installation
1Baffle
2Side, Burner Box (L.H.)
2Side, Burner Box (R.H.)
3Liner, Oven
4Frame, Front
5Seal, Door
6Strike
7Support, Door
8Housing, Burner
9Reflector, Light
10RANGE ONLY 40W 120V APPL BULB
11Receptacle, Light
12Bracket, Light
15Support, Rack (Right Hand)
15Support, Rack (Left Hand)
16Rack, Oven
17Bottom, Oven
18Bolt, Hook (4)
18Nut, Hex
19Liner, Oven Back
20Support
21WPW10208653 Whirlpool Insulation
21FOIL, ALUMINUM OVEN (18“ X 25 )
21Plate, Cover
