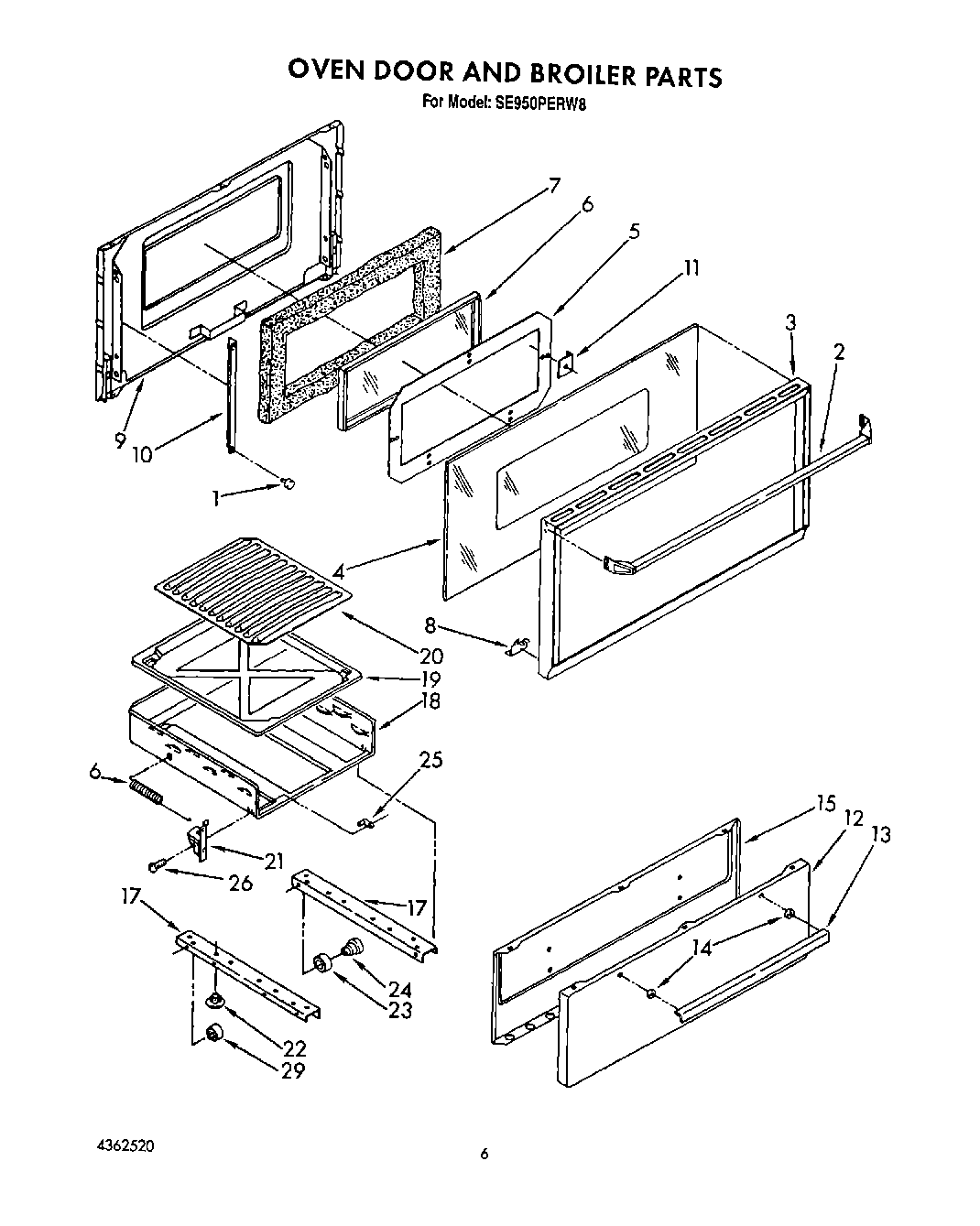

SE950PERW8 05 – OVEN DOOR AND BROILER

SE950PERW8 05 – OVEN DOOR AND BROILER

Written by

in

SE950PERW8 05 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bumper, Rubber (6)
2Handle, Door
2Screw, 8-18 X 3/8 (4)
3Frame, Door
4Glass
5Baffle
6Window Assy
7Insulation
8Support, Glass
8SCREW
8Speed Clip (4)
9Liner, Door
10Support, Glass (2)
11Plate (2)
12Panel, Broiler (White)
12Panel, Broiler (Almond)
13Screw, 10-12 X 5/8 (2)
13Washer (2)
13Handle
14Spacer (4)
15Liner, Broiler Door
16Spring (2)
17Track, Upper (2)
18Liner, Broiler
194396923 Whirlpool Broil Pan Set Gray Porcelain
20Grid
21WP308685 Whirlpool Microwave Screw
21W10080180 Whirlpool Nut
21Hinge, Door (R.H.)
21Hinge, Door (L.H.)
22Bumper, Nylon (4)
23Roller (2)
24Pin, Roller (2)
25Plate (2)
26Screw (2)
29Hole Plug (2)
