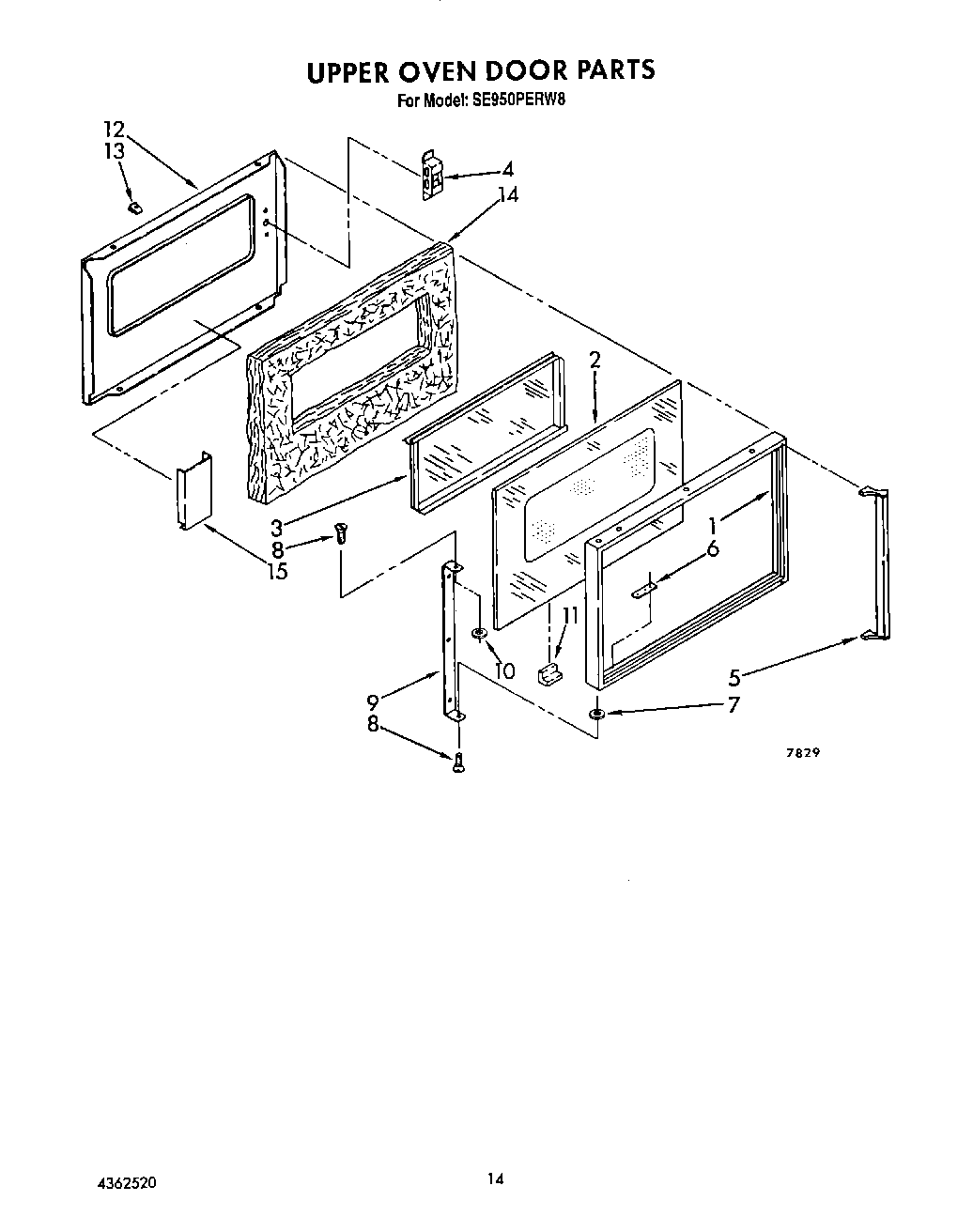

SE950PERW8 09 – UPPER OVEN DOOR
Products
| Position | Product |
|---|---|
| 1 | Frame |
| 2 | Glass, Outer |
| 3 | Glass |
| 4 | Catch |
| 5 | Handle |
| 6 | Bar, Slide |
| 7 | Spacer |
| 8 | Pin, Hinge |
| 9 | Hinge |
| 10 | Washer |
| 11 | Spacer, Glass (3) |
| 12 | Liner |
| 13 | Clip, Liner (6) |
| 14 | Insulation |
| 15 | Support, Window |
