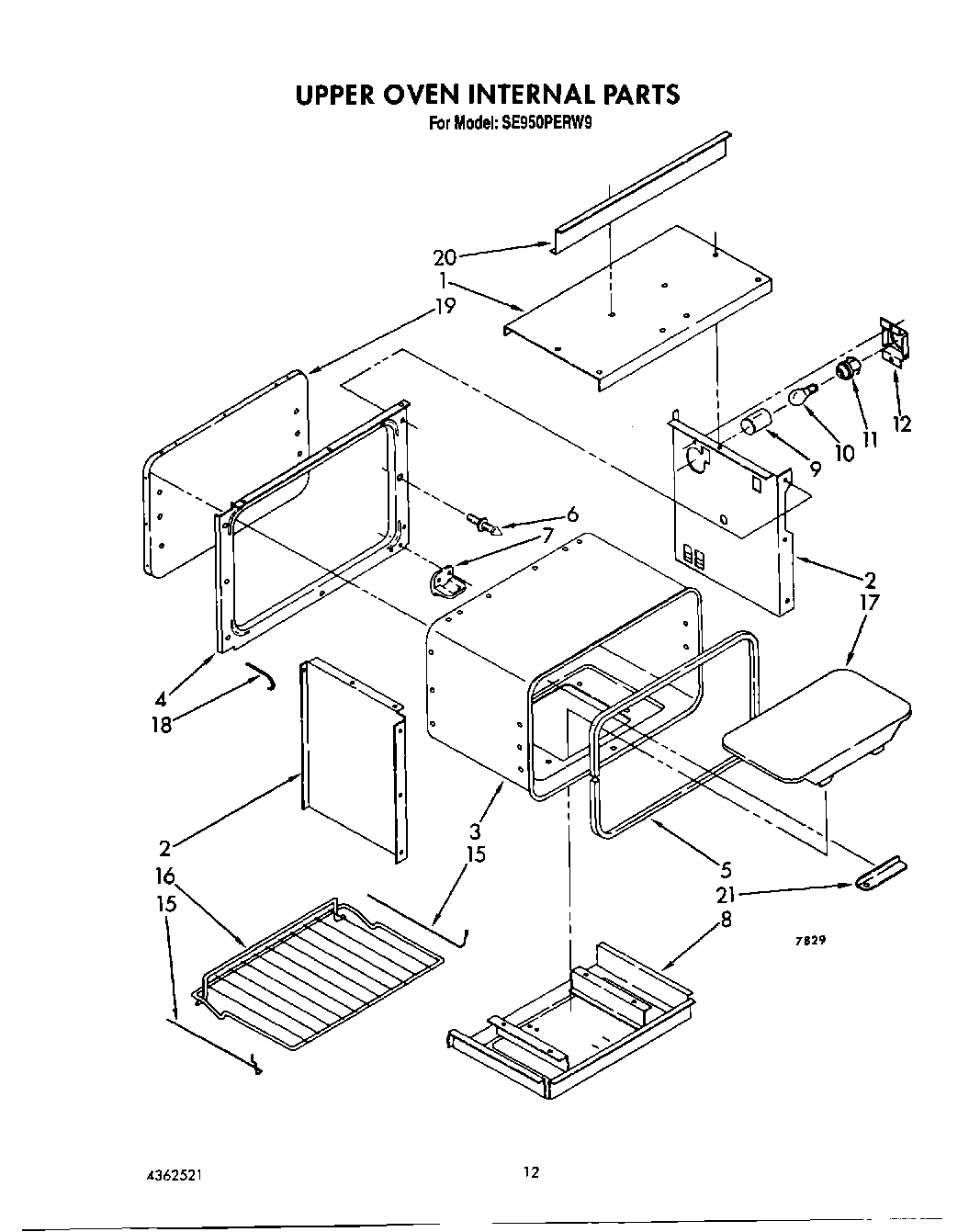

SE950PERW9 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL
Written by
in
SE950PERW9 08 – UPPER OVEN INTERNAL, LIT/OPTIONAL
Products
Position
Product
Guide, Use & Care
Instuctions, Installation
Repair Parts List
Guide, Cooking
1
Baffle
2
Side, Burner Box (L.H.)
2
Side, Burner Box (R.H.)
3
Liner, Oven
4
Frame, Front
5
Seal, Door
6
Strike
7
Support, Door
8
Housing, Burner
9
Reflector, Light
10
RANGE ONLY 40W 120V APPL BULB
11
Receptacle, Light
12
Bracket, Light
15
Support, Rack (Left Hand)
15
Support, Rack (Right Hand)
16
Rack, Oven
17
Bottom, Oven
18
Bolt, Hook (4)
18
Nut, Hex
19
Liner, Oven Back
20
Support
21
WPW10208653 Whirlpool Insulation
21
FOIL, ALUMINUM OVEN (18“ X 25 )
21
Plate, Cover
←
