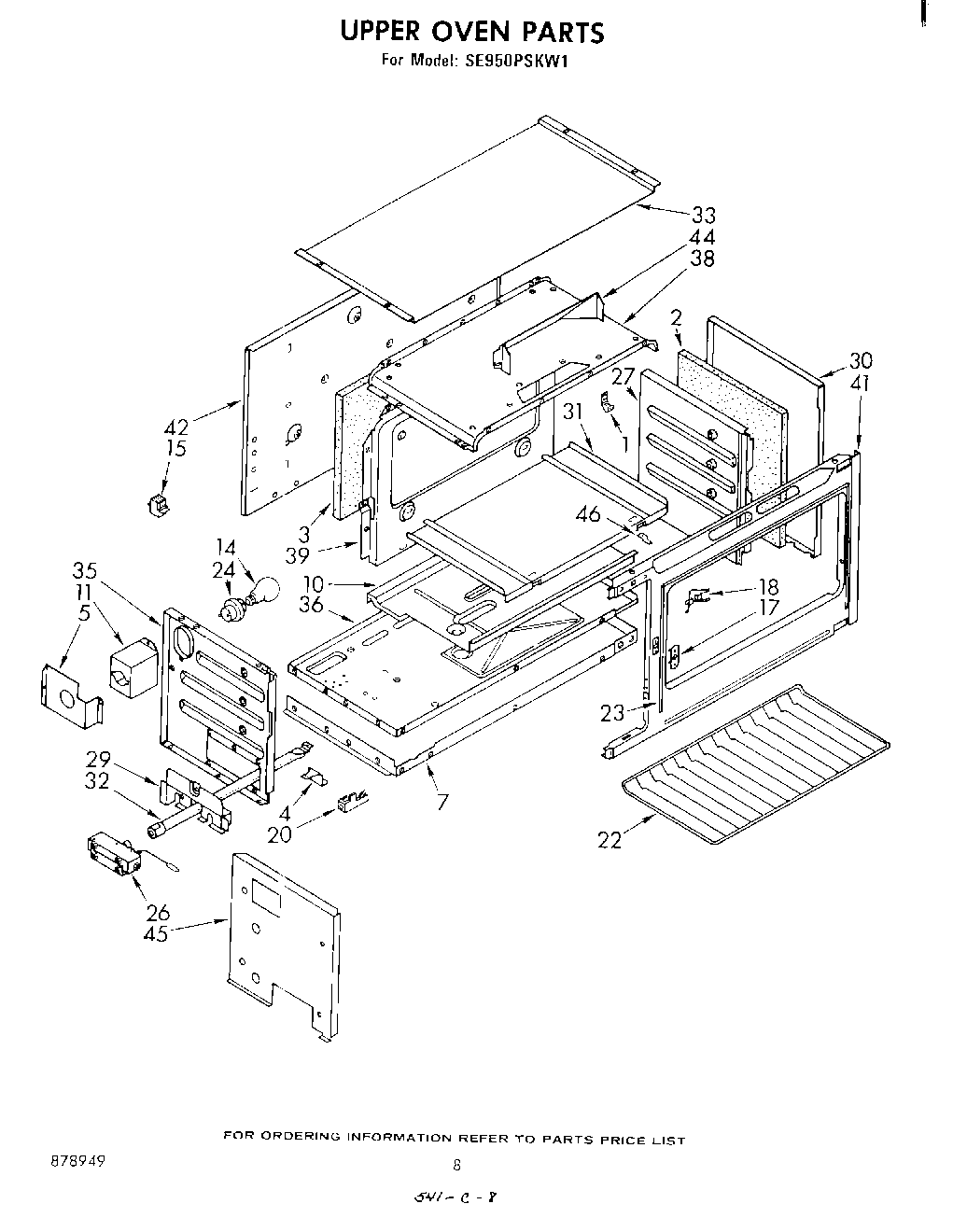

SE950PSKW1 06 – UPPER OVEN

Products

Position	Product
1	98005642 Whirlpool Clip
2	WPW10208653 Whirlpool Insulation
4	Support, Burner
5	Box, Oven Light Cover
7	Angle, Cabinet Base
10	Baffle, Heat
11	Box, Oven Light
14	RANGE ONLY 40W 120V APPL BULB
15	Block, Disconnect Pin
17	Catch, Door
18	Catch, Main Top (2)
20	Lighter, Oven Burner
22	Rack, Oven (2)
23	Seal, Oven Door (Top (1))
23	Seal, Oven Door (Side (2))
24	Socket, Oven Light
26	Valve, Oven Lighter Safety
27	Side, Oven Right
29	Plate, Valve Closure
30	Panel, Cabinet End (2) (Almond)
30	Panel, Cabinet End (2) (Platinum)
30	Panel, Cabinet End (2) (Toast)
30	Panel, Cabinet End (2) (Coffee)
30	Panel, Cabinet End (2) (White)
30	Panel, Cabinet End (2) (Harvest Gold)
31	Plate, Oven Bottom
32	Burner, Oven
33	Top, Cabinet
35	Side, Oven Left
36	Bottom, Cabinet
38	Top, Oven
39	Back, Oven
41	Front, Cabinet
42	Back, Cabinet
44	Deflector, Vent
45	Clamp, Oven Insulation
46	Clip, Oven Bottom Plate (2)
