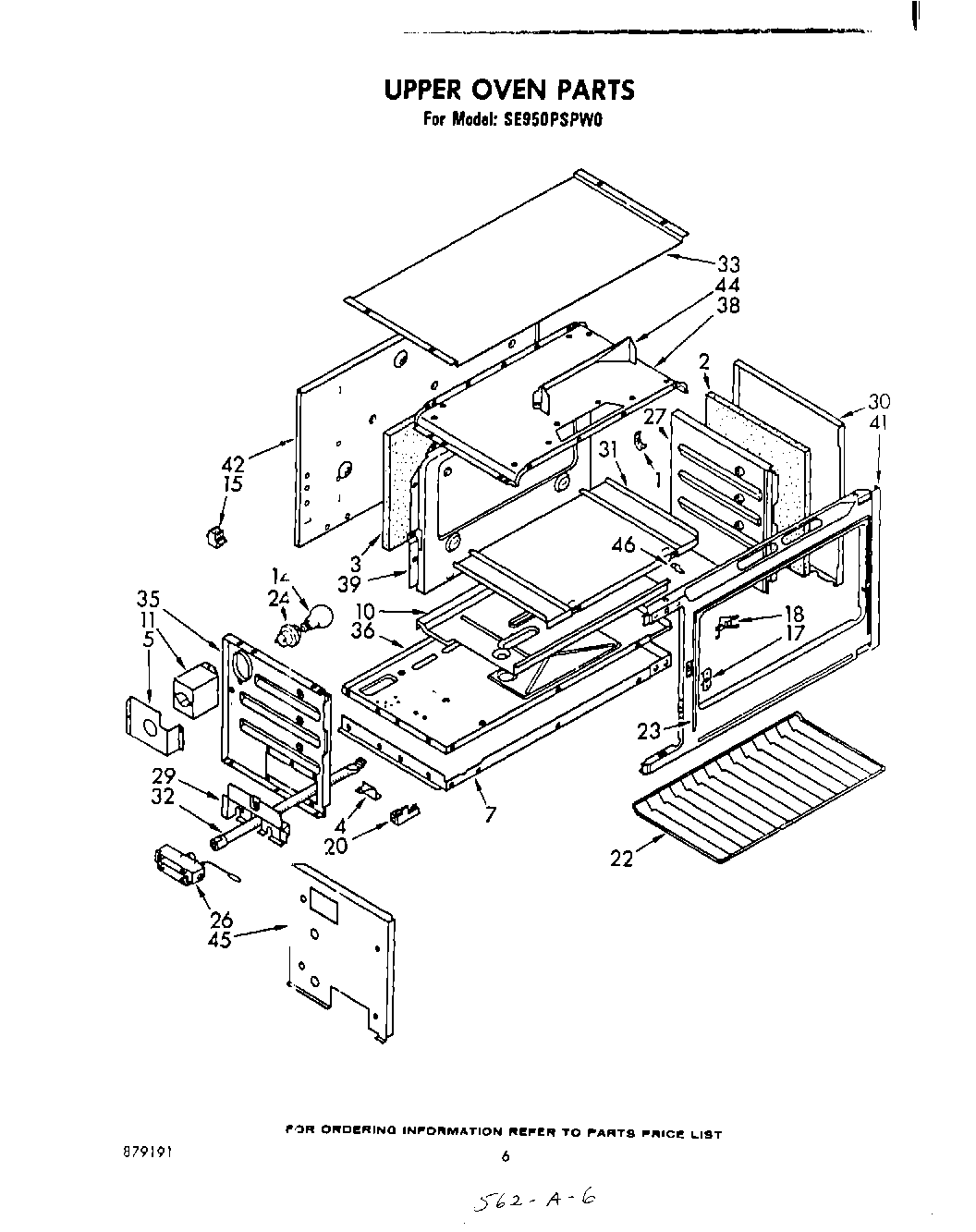

SE950PSPW0 05 – UPPER OVENadmin2025-04-26T12:54:20+00:00SE950PSPW0 05 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | 98005642 Whirlpool Clip |
| 2 | WPW10208653 Whirlpool Insulation |
| 4 | Support, Burner |
| 5 | Box, Oven Light Cover |
| 7 | Angle, Cabinet Base |
| 10 | Baffle, Heat |
| 11 | Box, Oven Light |
| 14 | RANGE ONLY 40W 120V APPL BULB |
| 15 | Block, Disconnect Pin |
| 17 | Catch, Door |
| 18 | Catch, Main Top (2) |
| 20 | Lighter, Oven Burner |
| 22 | Rack, Oven (2) |
| 23 | Seal, Oven Door (Side (2)) |
| 23 | Seal, Oven Door (Top (1)) |
| 24 | Socket, Oven Light |
| 26 | Valve, Oven Lighter Safety |
| 27 | Side, Oven Right |
| 29 | Plate, Valve Closure |
| 30 | Panel, Cabinet End (2) (Platinum) |
| 30 | Panel, Cabinet End (2) (Toast) |
| 30 | Panel, Cabinet End (2) (Almond) |
| 30 | Panel, Cabinet End (2) (White) |
| 31 | Plate, Oven Bottom |
| 32 | Burner, Oven |
| 33 | Top, Cabinet |
| 35 | Side, Oven Left |
| 36 | Bottom, Cabinet |
| 38 | Top, Oven |
| 39 | Back, Oven |
| 41 | Front, Cabinet |
| 42 | Back, Cabinet |
| 44 | Deflector, Vent |
| 45 | Clamp, Oven Insulation |
| 46 | Clip, Oven Bottom Plate (2) |
