SE953PEKT0 04 – COOKTOP
Written by
in

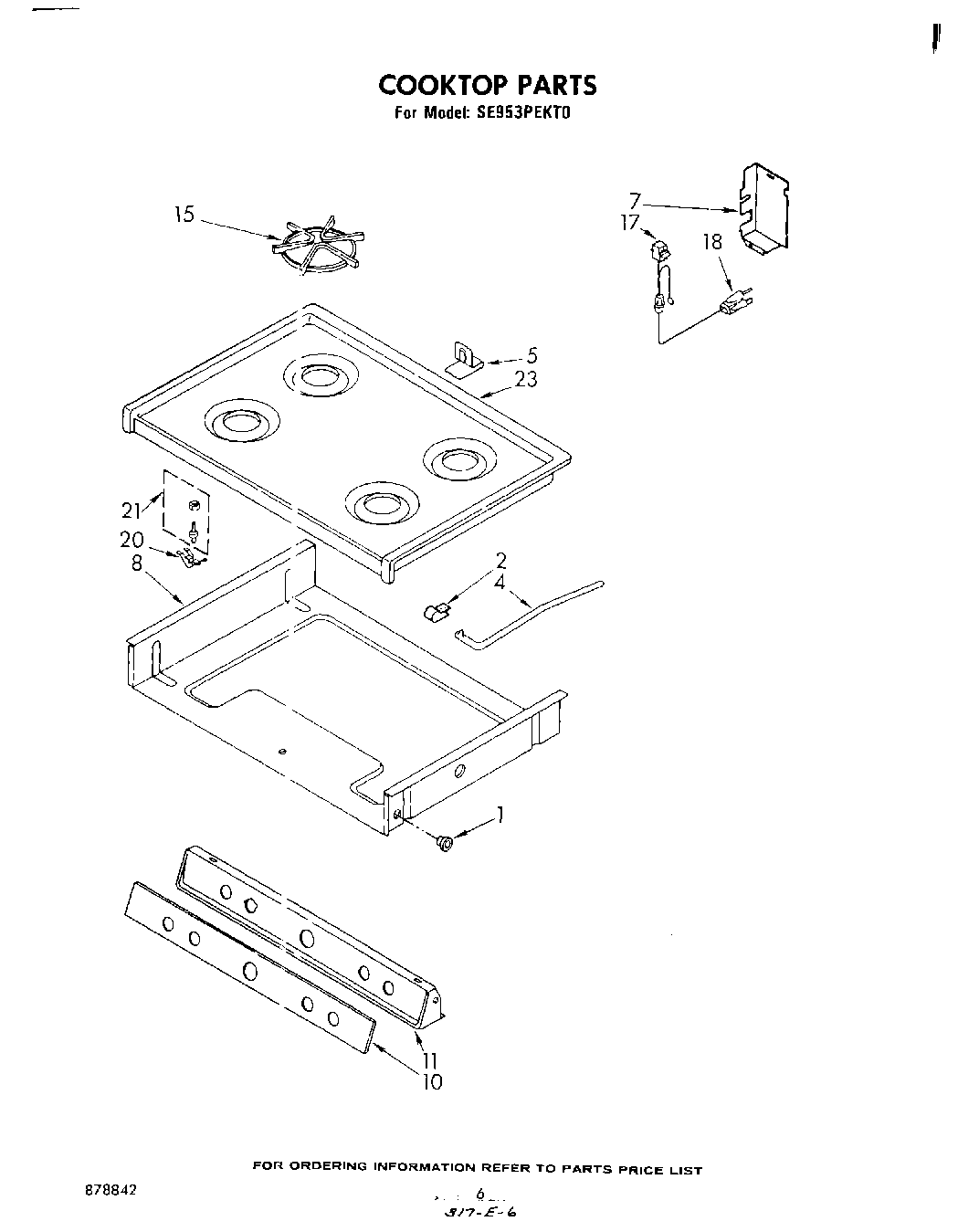

SE953PEKT0 04 – COOKTOP
Products
Position
Product
1
Bushing, Snap
2
Clamp, Top Stop
4
Stop, Cook Top
5
Spacer, Main Top
7
Cover, Wire
8
Bottom, Burner Box
10
Inlay, Manifold Panel
11
Panel, Manifold (Harvest Gold)
11
Panel, Manifold (White)
11
Panel, Manifold (Coffee)
11
Panel, Manifold (Almond)
15
Grate, Burner (4)
17
Block, Disconnect Socket
18
Cord, Extension
20
Catch, Main Top (2)
21
Strike, Main Top (2)
23
Top, Main (Almond)
23
Top, Main (Harvest Gold)
23
Top, Main (Brushed Chrome)
23
Top, Main (White)
23
Top, Main (Coffee)
←
