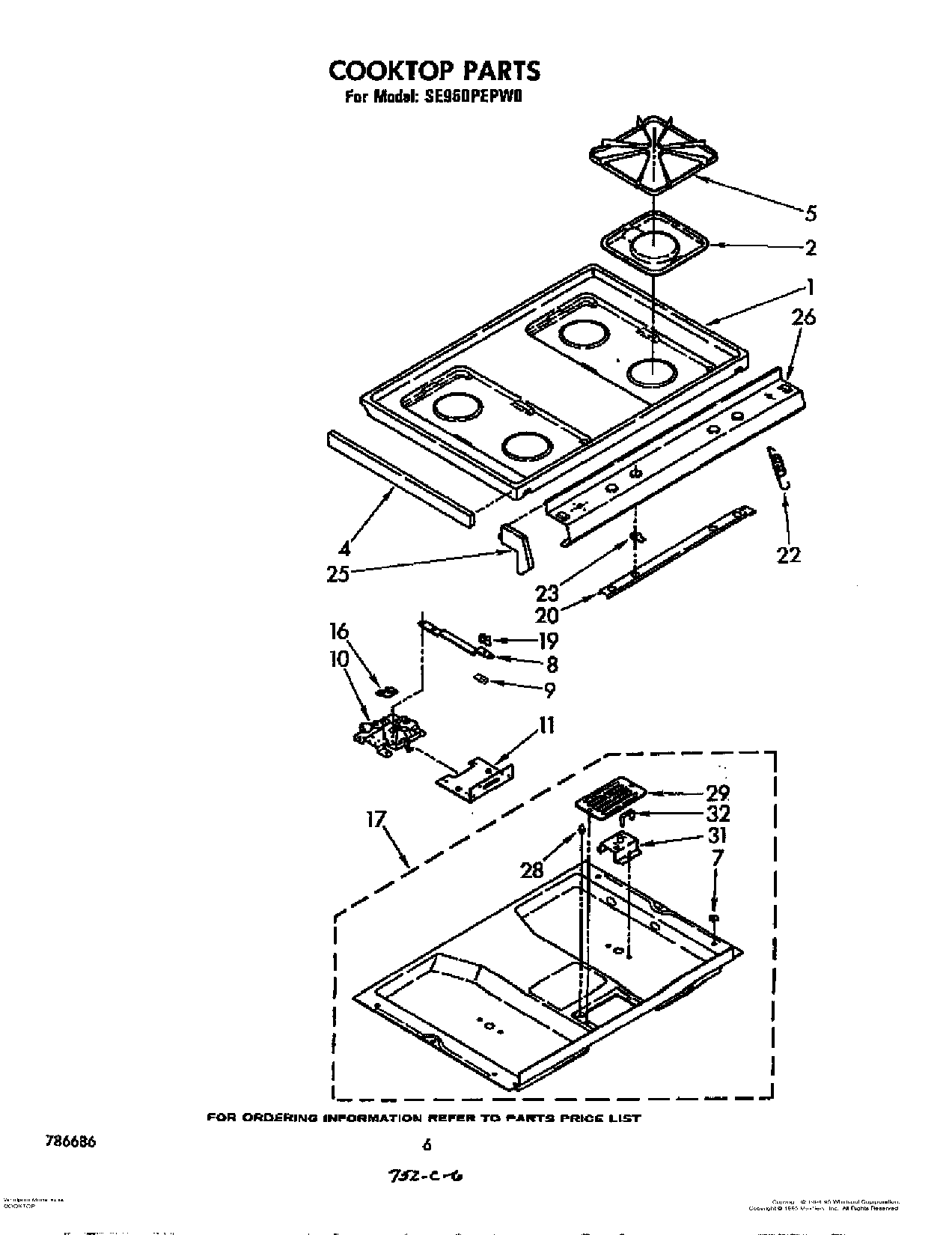

SE960PEPW0 04 – COOKTOP

Products

Position	Product
1	top, main (white)
1	top, main (toast)
1	Top, Main (Platinum)
1	top, main (almond)
2	WP786333 Whirlpool Drip Bowl
4	Trim, Main Top (Right Side)
4	Trim, Main Top (Left Side)
5	Grate, Top Burner
7	Spacer, Nylon (4)
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Mounting Latch
16	Bracket, Switch
17	Burner Box
19	Knob, Latch Handle
20	Actuator, Spark Ignitor
22	Spring
23	Cam (4)
25	End Cap (Left)
25	End Cap (Right)
26	Panel, Control
28	Orifice
29	Plate, Cover
31	Bracket, Top (2)
32	Bracket, Electrode (2)
