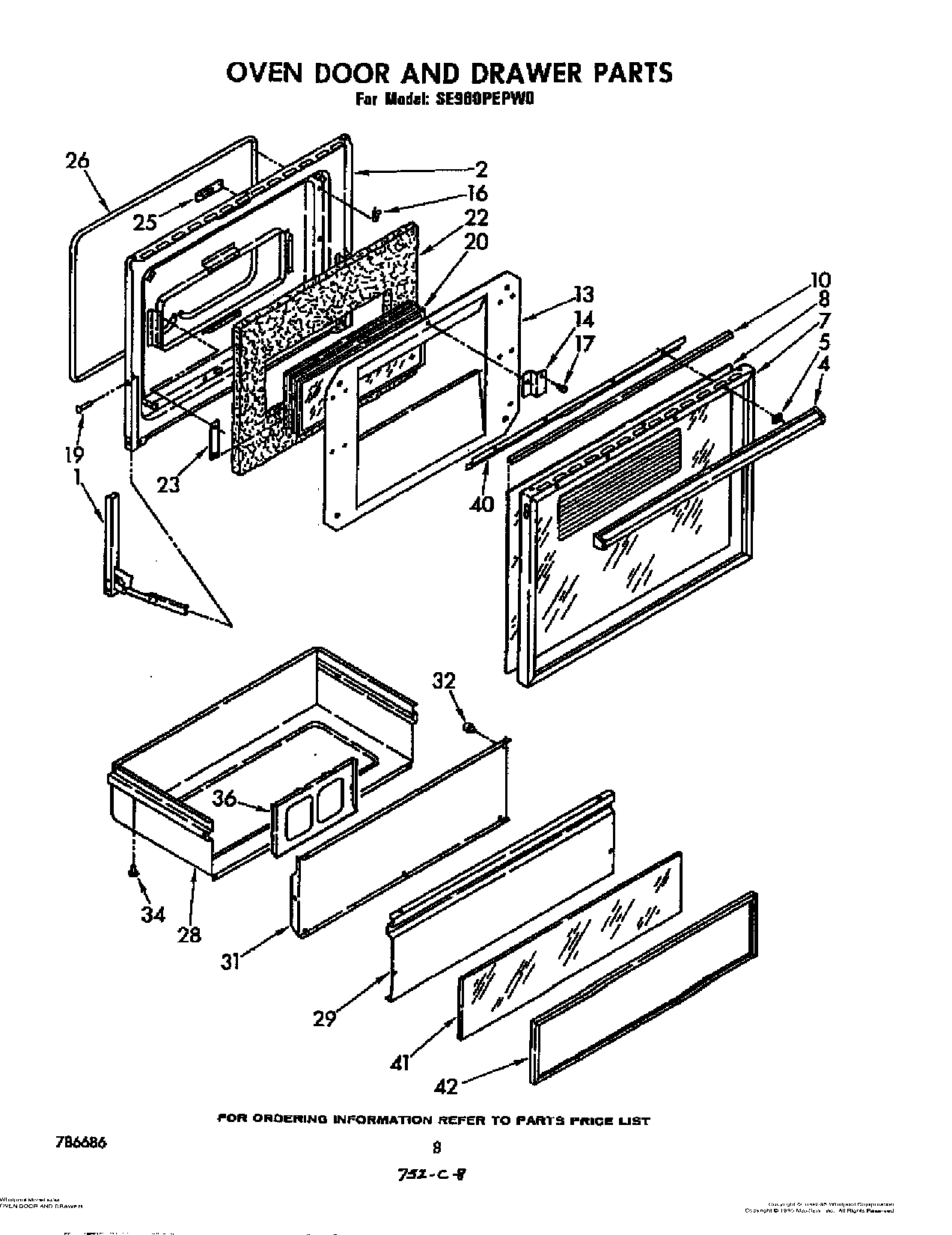

SE960PEPW0 06 – OVEN DOOR AND DRAWER
Written by
in
SE960PEPW0 06 – OVEN DOOR AND DRAWER
Products
Position
Product
1
Hinge, Oven Door (Left Side)
1
Hinge, Oven Door (R.H.)
2
WP965173 Whirlpool Dishwasher Screw
2
WP488130 Whirlpool Air Conditioner Nut
2
Liner, Oven Door
2
WP308685 Whirlpool Microwave Screw
2
Screw, 8-32 X 5/8 (4)
4
Handle
5
Spacer, Handle (2)
7
Frame
8
Panel, Black Glass
10
Trim, Glass
13
Retainer, Insulation
14
bracket, glass support (4)
16
Clip, Speed (14)
17
Bumper Window (5)
19
Pin, Hinge (2)
20
Window Assembly
22
WPW10208653 Whirlpool Insulation
23
Retainer, Window (4)
25
Plate, Latch
26
Gasket Assembly
28
Wrapper, Storage Draw
29
Panel, Drawer (Almond)
29
panel, drawer (toast)
29
Panel, Drawer (Platinum)
29
panel, drawer (black)
29
Panel, Drawer (White)
31
Liner, Door Panel
32
Bumper, Rubber
34
Rivet, Plastic (4)
36
Rack, Literature
40
Baffle, Air
41
Glass, Black
42
Frame, Glass
←
