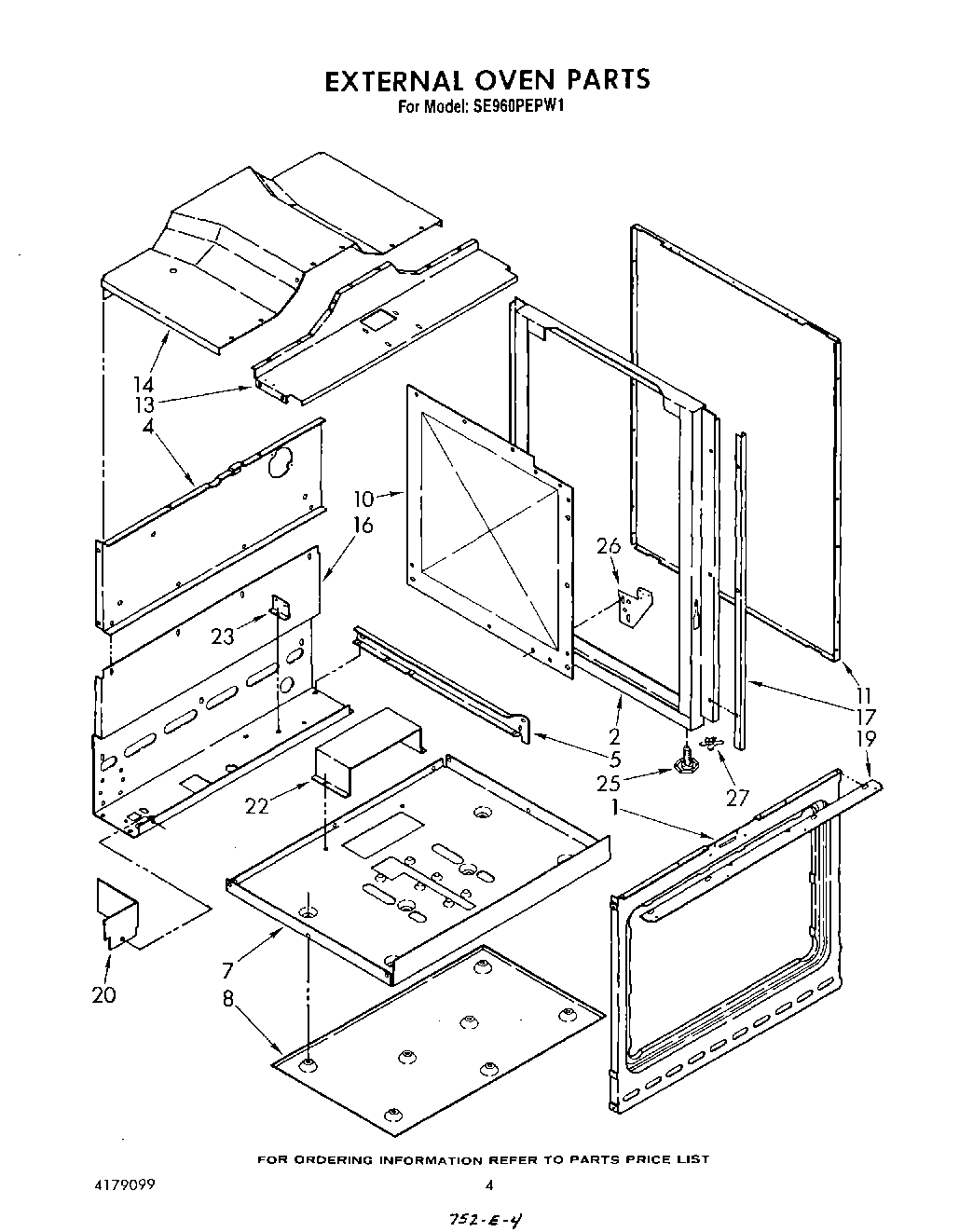

SE960PEPW1 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
2	Frame, Side (Right Side)
2	Frame, Side (Left Side (See Page 9 For Two Track System))
4	Rear Panel, Upper
5	Track, Storage Draw (Left Side (See Page 9 For Two Track System))
5	Track, Storage Draw (Right Side)
7	Retainer, Bottom Insulation
8	Grate, Top Burner
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
11	panel, end (2) (platinum)
11	Panel, End (2) (White)
11	panel, end (2) (toast)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	WP965173 Whirlpool Dishwasher Screw
16	WP488130 Whirlpool Air Conditioner Nut
16	nut, 6-32
16	bushing, snap
16	WP486754 Whirlpool Compactor Screw
16	Rear Panel, Lower
17	Trim, Side Panel (2)
19	Frame, Filler Front
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
26	Bracket, Door Switch
27	Nut (4)
