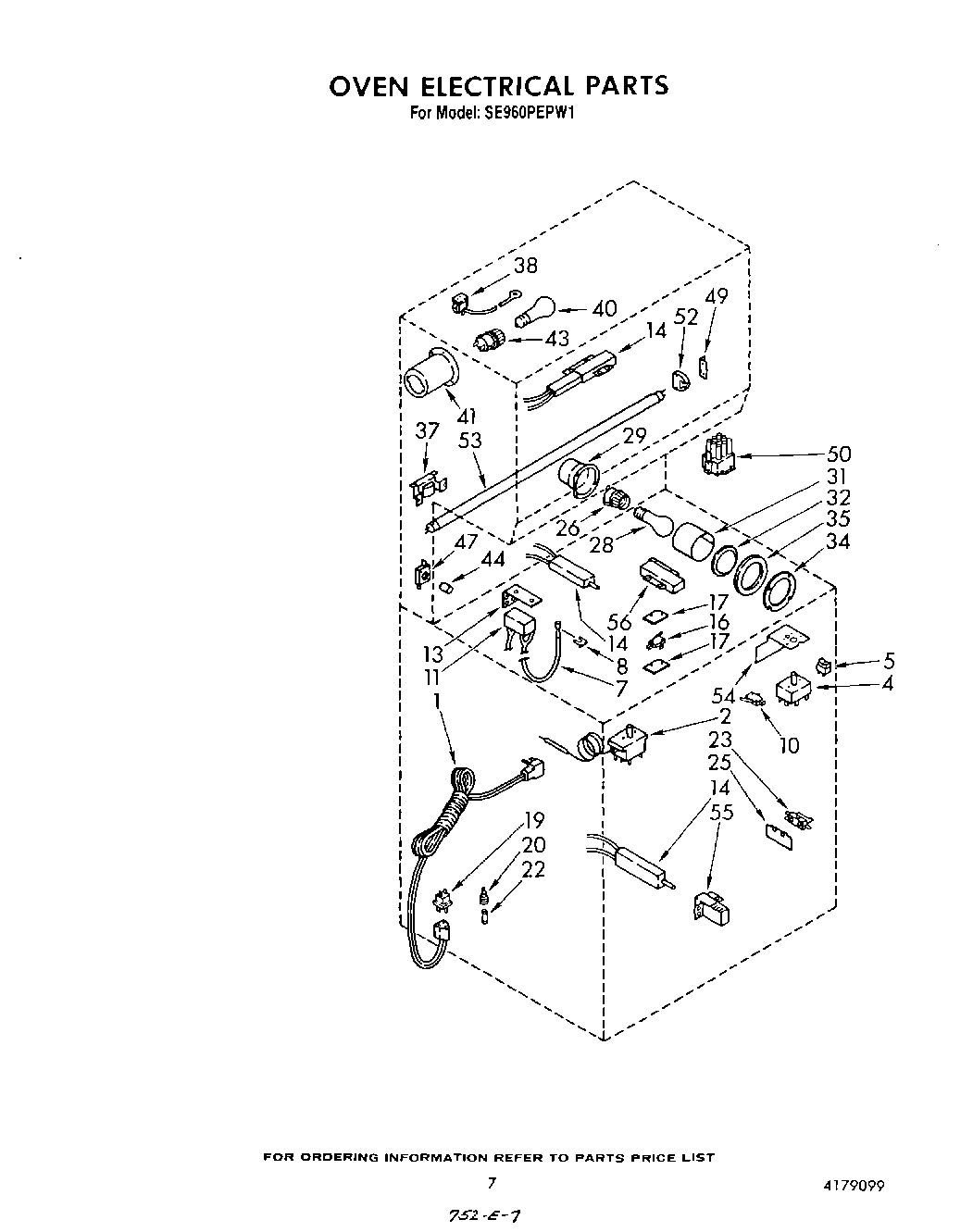

SE960PEPW1 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
4	Switch, Selector
5	Switch, Rocker
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Switch, Burner
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
20	Holder, Fuse
22	Fuse, 5 AMP
23	Switch, Aux. Light
25	Insulation, Door Switch (2)
26	Socket, Oven Lamp
29	Housing, Light
31	Retainer, Insulation
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
37	Ballast
38	Outlet, Fan Motor
40	RANGE ONLY 40W 120V APPL BULB
41	Housing, Oven Light
43	Socket
44	Starter, Fluorescent
47	Socket, Starter
49	Support Bracket, Socket
50	Plug, 9 Pin Connector
52	Lampholder Fluorescent
53	WP95292 Whirlpool Fluorescent Light Bulb
54	Insulator, Control (2)
55	Bracket, Bake Ignitor
56	Bracket, Broiler Ignitor
