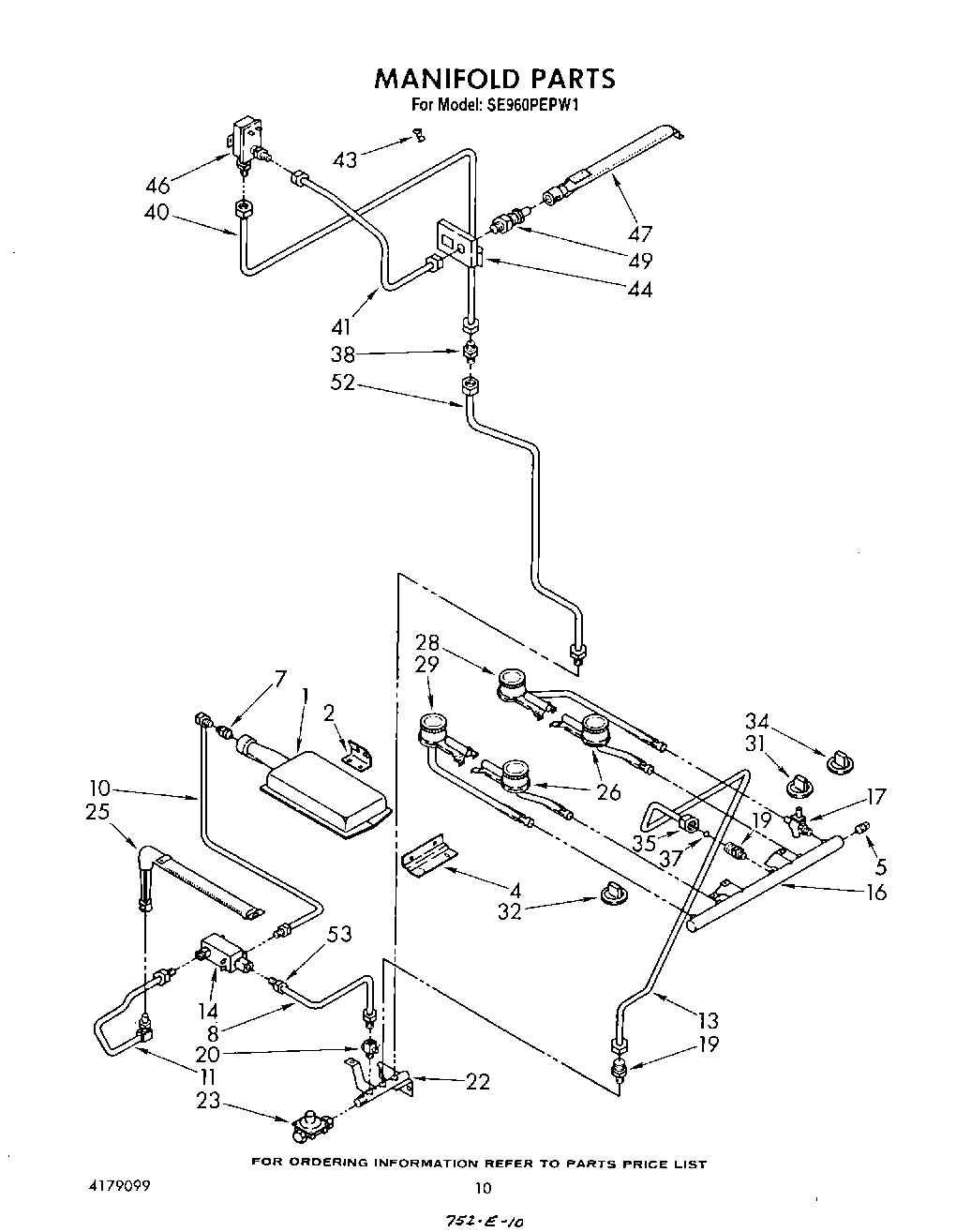

| 1 | Burner, Ultra Ray Broiler |
| 4 | Bracket, Burner Mounting |
| 5 | Pipe Plug, 3/8 NPT |
| 7 | Orifice (No.50 Nat. Gas) |
| 7 | LP Gas No. 58 |
| 8 | Tubing (Inlet To Gas Valve) |
| 10 | Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner) |
| 11 | Hood & Tubing Assembly (Gas Valve To Lower Oven Burner) |
| 13 | Tubing (Inlet To Manifold) |
| 14 | Valve, Dual Gas Valve |
| 16 | Manifold |
| 17 | Valve, Top Burner (Tri-Set) |
| 19 | Fitting |
| 20 | Valve, Shut-Off |
| 22 | Inlet |
| 23 | Regulator, Pressure |
| 25 | Oven Burner, Lower |
| 26 | Top Burner, Front (2) |
| 28 | Top Burner, R.R. |
| 29 | Top Burner, L.R. |
| 31 | Knob, Top Burner (4) |
| 32 | Knob, Oven Control |
| 34 | Knob, Selector |
| 35 | Nut, Compression 3/8 |
| 37 | Sleeve, Compression 3/8 |
| 38 | Union |
| 40 | Tubing (Union To Gas Valve) |
| 41 | Tubing (Gas Valve Upper Orifice) |
| 43 | Clip, Thermo Bulb (2) |
| 44 | Bracket, Ignitor |
| 46 | Valve, Upper |
| 47 | Burner, Upper |
| 49 | Orifice, Universal |
| 49 | Orifice L.P. |
| 52 | Tubing (Inlet To Upper-Oven Union) |
| 53 | Nut |
