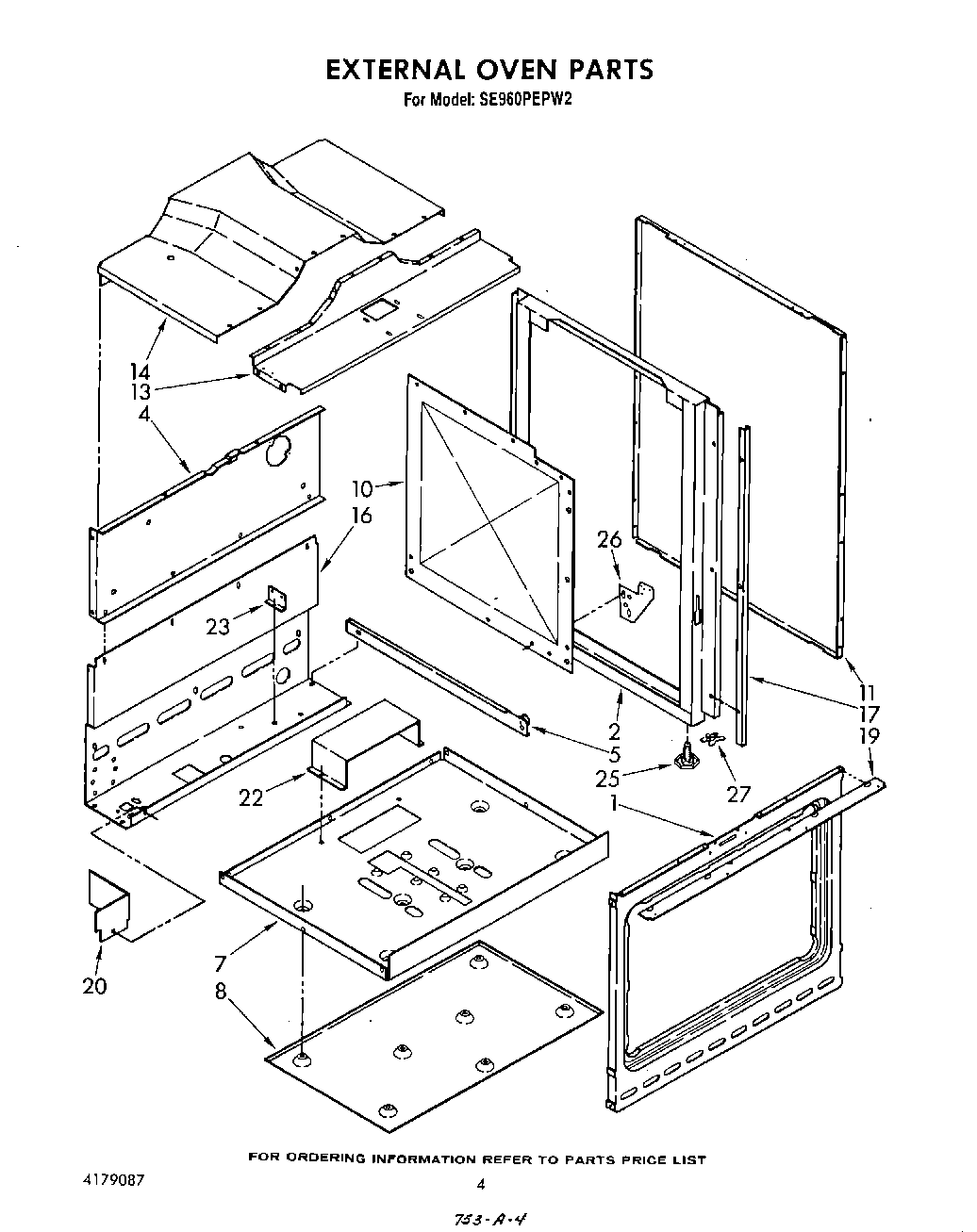

SE960PEPW2 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
2	Frame, Side (Right Side)
2	Frame, Side (Left Side)
4	Rear Panel, Upper
5	Track, Storage Draw (Left Side)
5	Track, Storage Draw (Right Side)
7	Retainer, Bottom Insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
11	panel, end (2) (platinum)
11	panel, end (2) (toast)
11	Panel, End (2) (White)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	WP965173 Whirlpool Dishwasher Screw
16	WP488130 Whirlpool Air Conditioner Nut
16	nut, 6-32
16	Rear Panel, Lower
16	WP486754 Whirlpool Compactor Screw
16	bushing, snap
17	Trim, Side Panel (2)
19	Frame, Filler Front
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
26	Bracket, Door Switch
27	Nut (4)
