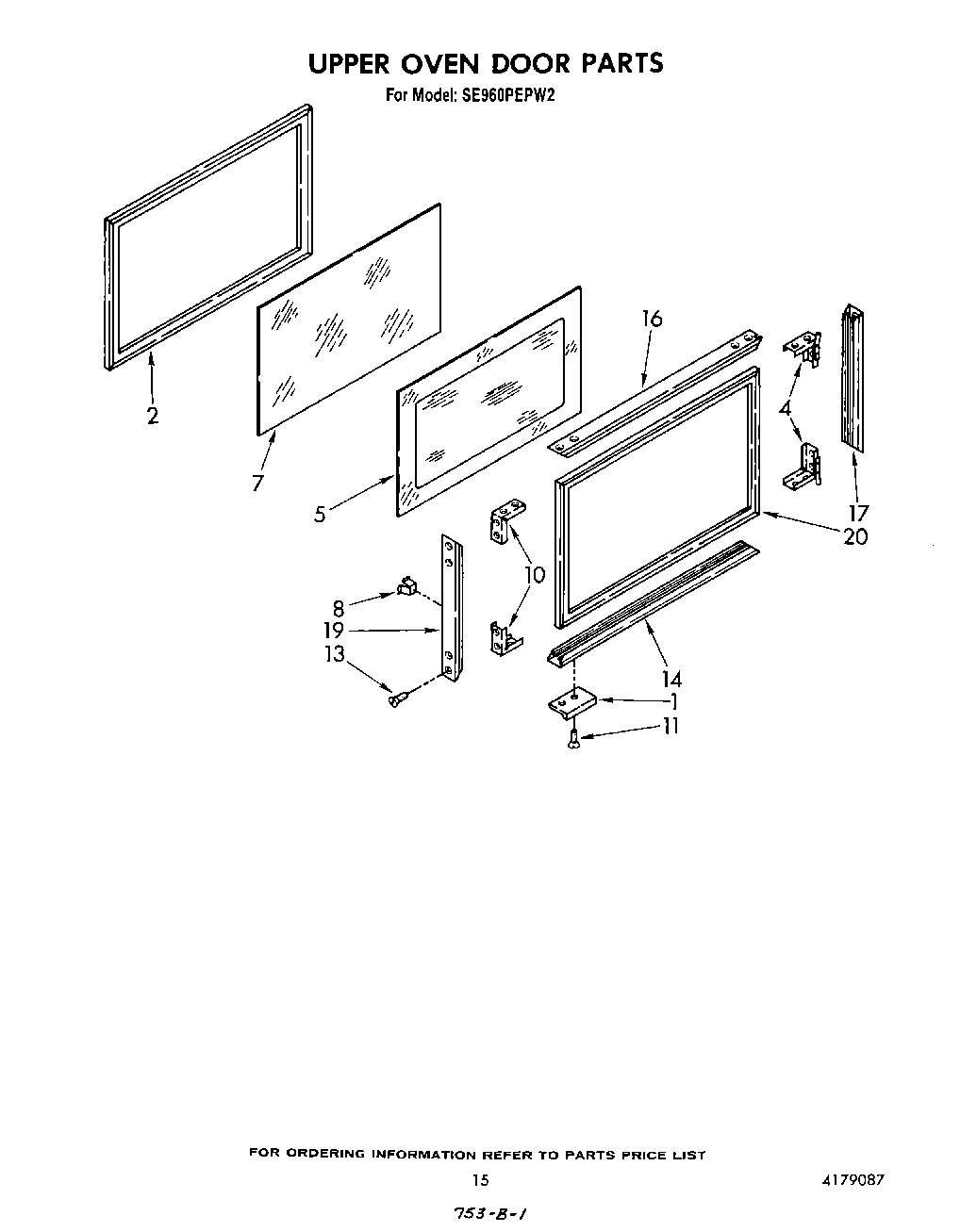

SE960PEPW2 10 – UPPER OVEN DOORadmin2025-04-26T12:52:20+00:00SE960PEPW2 10 – UPPER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Handle, Door |
| 2 | Gasket, Door |
| 4 | support, corner (right side, lower) |
| 4 | Support, Corner (Right Side, Upper) |
| 5 | Glass, Outer |
| 7 | Glass, Inner |
| 8 | Catch, Door |
| 10 | Support Corner Left Side |
| 11 | Screw, Handle |
| 13 | Screw, Door Ass`y |
| 14 | Frame, Lower |
| 16 | Frame, Upper |
| 17 | WPL 786513 |
| 19 | Frame, Left Side |
| 20 | Gasket, Window (11 ft.) |
