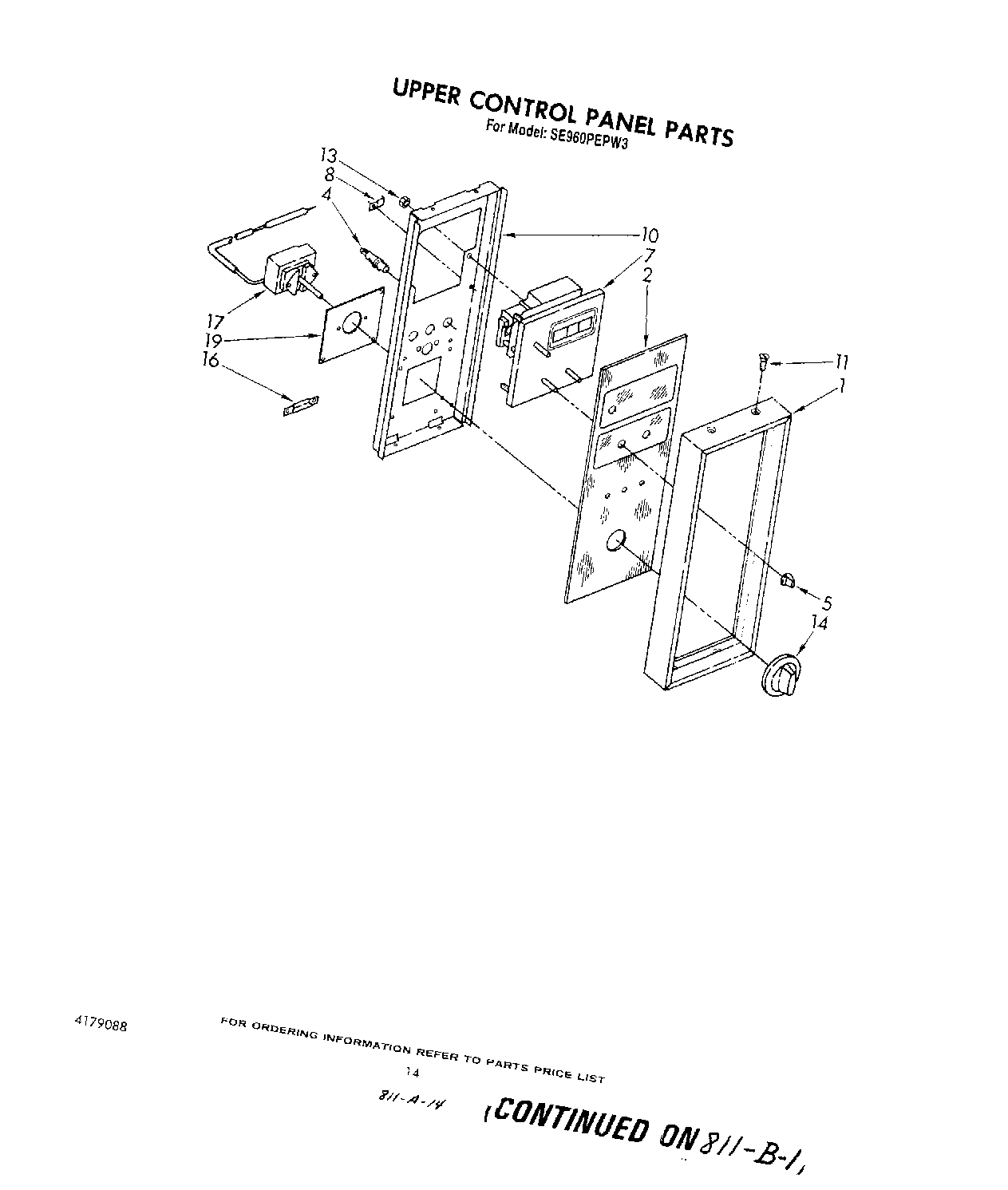

SE960PEPW3 09 – UPPER CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Cooking
Instructions, Installation
Guide, Use & Care (Range)
1Frame
2Hinge, Oven Door (Left Side)
4Indicator Light
5Knob, Clock
7Clock
8Clip, Bracket
10Bracket, C.P.
11Screw (4)
13Screw, 8 X 3/8 (14)
14Knob, Thermostat
16Bracket, Mounting
17Thermostat
19Plate, Mounting
