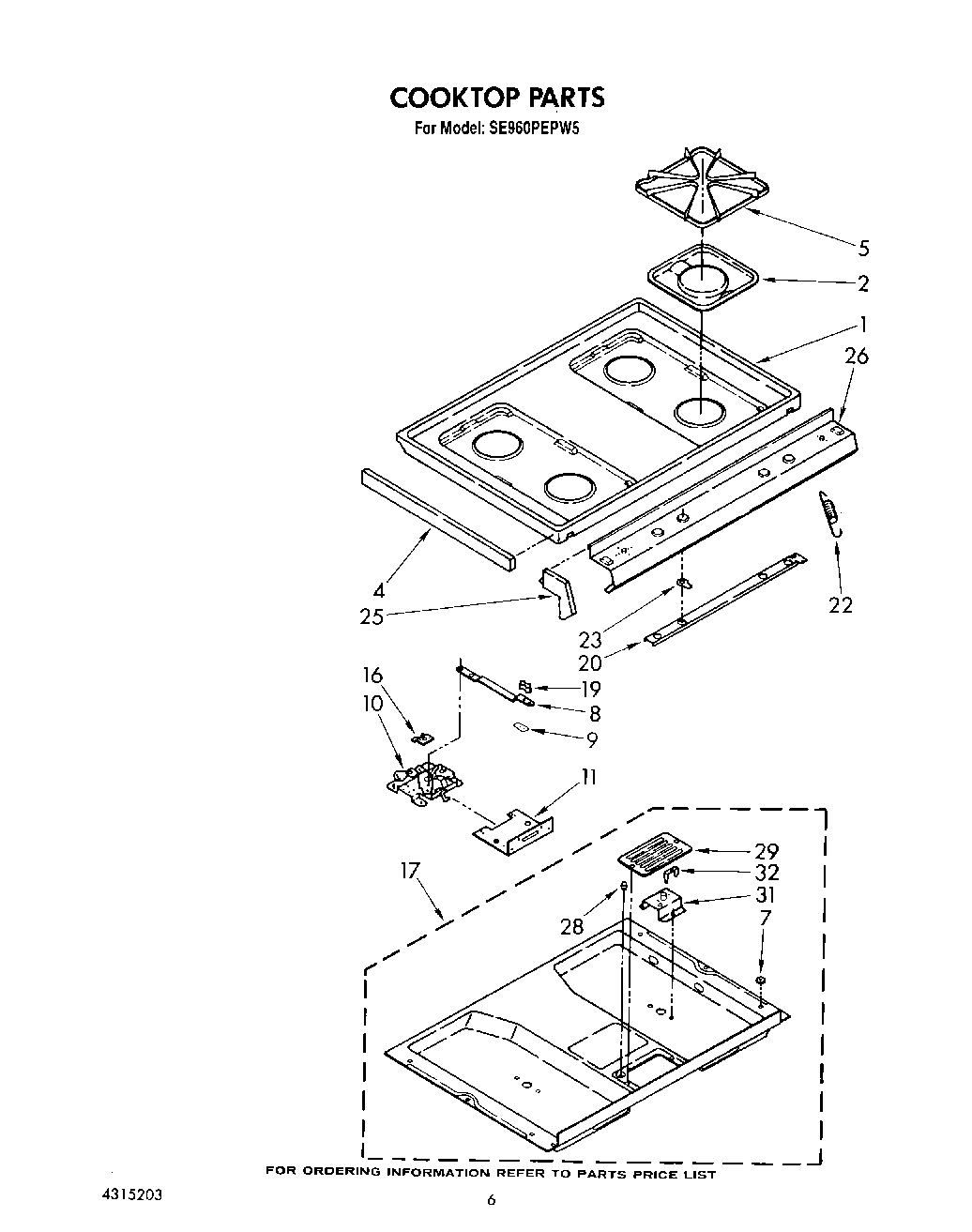

SE960PEPW5 04 – COOKTOP

SE960PEPW5 04 – COOKTOP

Written by

in

SE960PEPW5 04 – COOKTOP

Products

PositionProduct
1Top, Main (White)
1Top, Main (Platinum)
1Top, Main (Toast)
1Top, Main (Almond)
2WP786333 Whirlpool Drip Bowl
4Trim, Main Top (Left Side)
4Trim, Main Top (Right Side)
5Grate, Top Burner
7Spacer, Nylon (4)
8Handle, Latch
9Support, Latch
10Latch Assembly
11Bracket, Mounting Latch
16Bracket, Switch
17Burner Box
19Knob, Latch Handle
20Actuator, Spark Ignitor
22Spring
23Cam (4)
25End Cap (Right)
25End Cap (Left)
26Panel, Control
28LP Gas No. 58
29Plate, Cover
31Bracket, Top (2)
32Bracket, Electrode (2)
