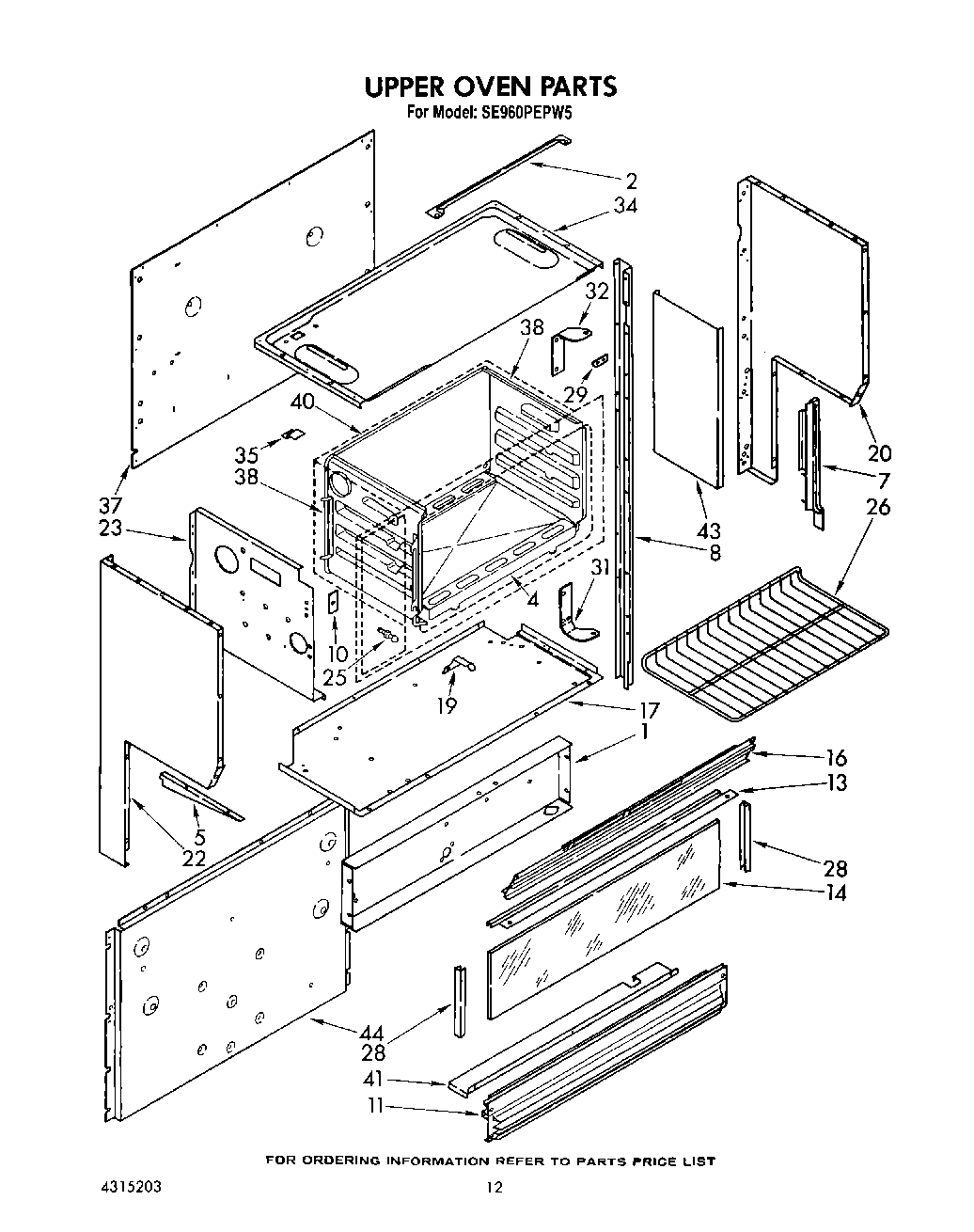

SE960PEPW5 08 – UPPER OVEN

Products

Position	Product
1	Panel, Surface Light
2	Trim, Flue
4	Bottom, Oven
5	Trim Strip (Right Side)
5	trim strip (left side)
7	Trim, Upper Oven Support (Left Side)
7	Trim, Upper Oven Support (Right Side)
8	channel, support (right side)
8	channel, support (left side)
10	Plate, Door Strike
11	Lower Trim, Splashplate
13	Trim, Rear
14	Glass, Splashplate
16	Panel, Decorative
17	Panel, Bottom
19	Guide, Door
20	panel, side (right side) (almond)
20	panel, side (right side) (white)
20	Panel, Side (Right Side) (Toast)
20	panel, side (right side) (platinum)
22	panel, side (left side) (white)
22	Panel, Side (Left Side) (Almond)
22	Panel, Side (Left Side) (Platinum)
22	panel, side (left side) (toast)
23	Retainer, Side Insulation
25	Strike, Oven Door
26	Rack, Oven
28	Trim, Glass
29	Cover Plate, Front Frame
31	Hinge, Bottom
32	Hinge, Top
34	Panel, Top
35	Cover, Convenience Outlet
37	Backplate
38	Panel, Side (Right Side)
38	Panel, Side (Left Side)
40	Panel, Back
41	Shield, Heat
43	Retainer, Insulation
44	Panel, Cover
