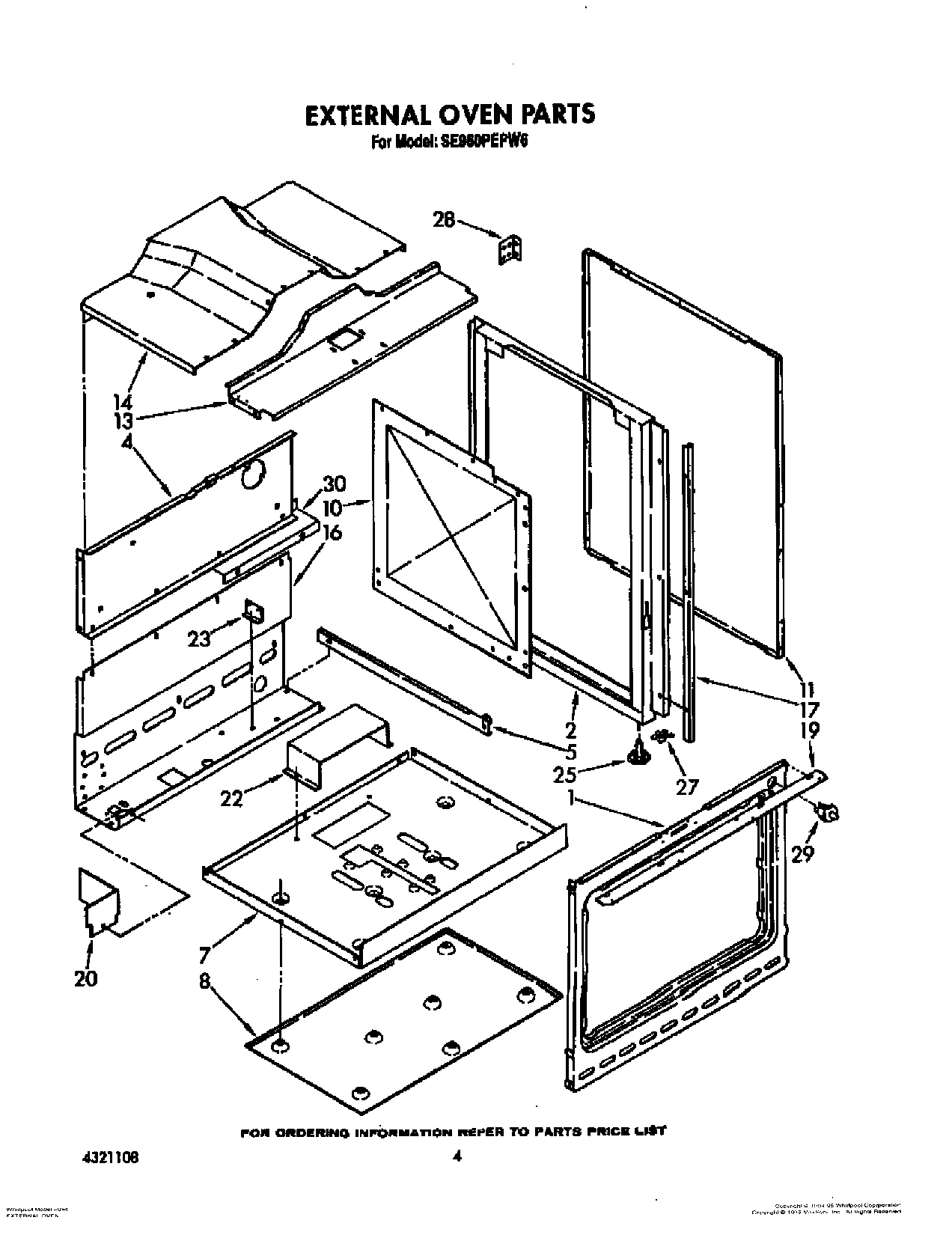

SE960PEPW6 03 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
2	Frame, Side (Left Side)
2	Frame, Side (Right Side)
4	Rear Panel, Upper
5	Track, Storage Draw (Left Side)
5	Track, Storage Draw (Right Side)
7	Retainer, Bottom Insulation
8	Heat Shield,
10	Retainer, Insulation (2)
11	Panel, End (2) (White)
11	panel, end (2) (toast)
11	panel, end (2) (platinum)
11	Panel, End (2) (Almond)
13	Retainer, Top Front Insulation
14	Retainer, Top Back Insulation
16	Rear Panel, Lower
16	WP488130 Whirlpool Air Conditioner Nut
16	nut, 6-32
16	bushing, snap
16	WP486754 Whirlpool Compactor Screw
16	WP965173 Whirlpool Dishwasher Screw
17	Trim, Side Panel (2)
19	Frame, Filler Front
20	Plate, Cover
22	Cover, Burner
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
27	Nut (4)
28	WPL 4315018
29	Switch, Oven Door
30	Cover, Electrical
