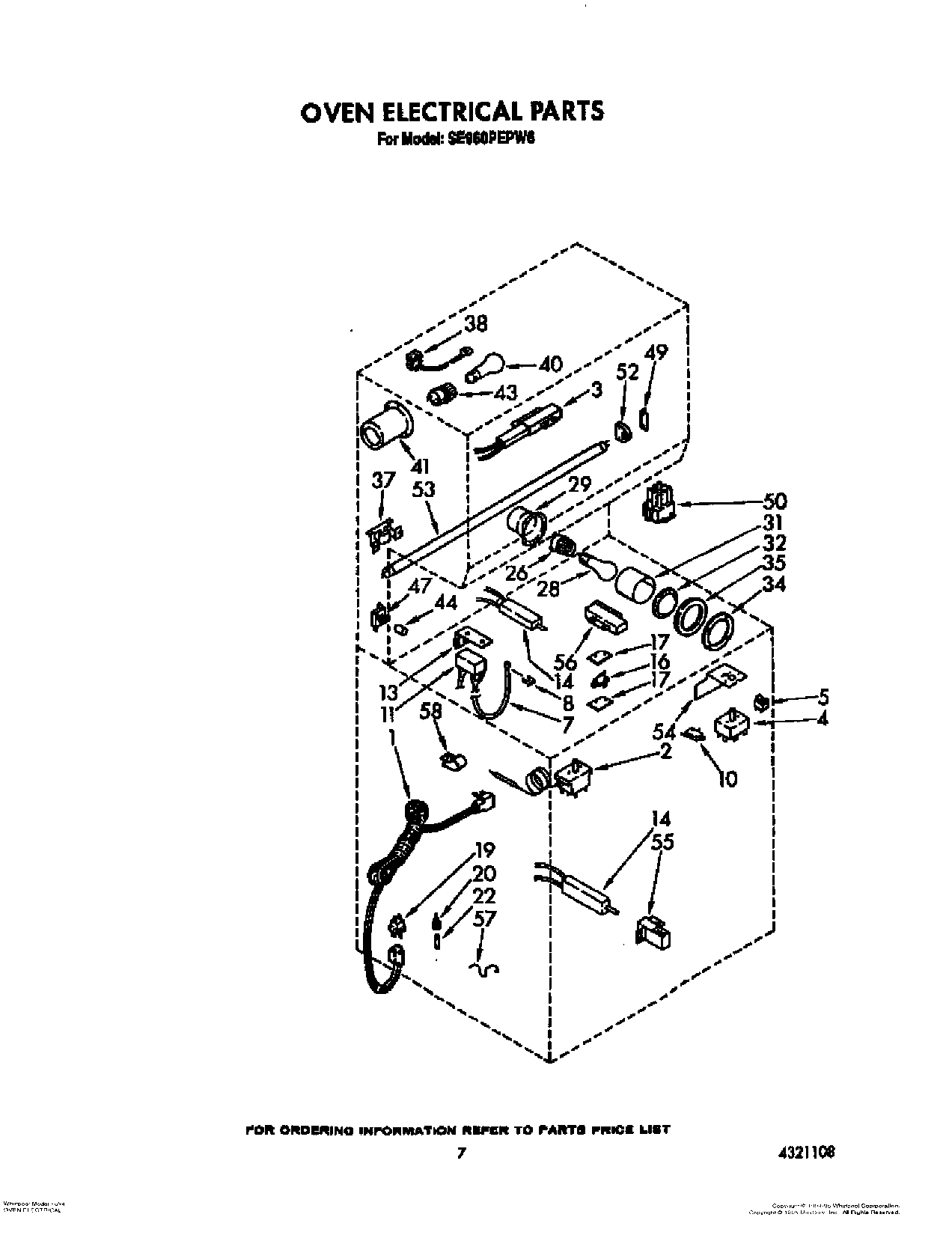

SE960PEPW6 05 – OVEN ELECTRICAL
Written by
in
SE960PEPW6 05 – OVEN ELECTRICAL
Products
Position
Product
1
Cord, Power
2
Thermostat, Oven
3
786324 Whirlpool Flat Igniter
4
Switch, Selector
5
Switch, Rocker
7
4157608 Whirlpool Surface Igniter
8
WPY0070927 Whirlpool Microwave Clip
10
Switch, Burner
11
Module, Spark
13
Bracket, Spark Module
16
Switch, Oven Door Latch
17
Insulator, Switch
19
Plug, Male
20
Holder, Fuse
22
Fuse, 5 AMP
26
Socket, Oven Lamp
29
Housing, Light
31
Retainer, Insulation
32
Lens, Oven Light
34
Retainer, Oven Light Lens
35
Gasket, Oven Light
37
Ballast
38
Outlet, Fan Motor
40
RANGE ONLY 40W 120V APPL BULB
41
Housing, Oven Light
43
Socket
44
Starter, Fluorescent
47
Socket, Starter
49
Support Bracket, Socket
50
Plug, 9 Pin Connector
52
Lampholder Fluorescent
53
WP95292 Whirlpool Fluorescent Light Bulb
54
Insulator, Control (2)
55
Bracket, Bake Ignitor
56
Bracket, Broiler Ignitor
57
Clip, Wire
58
Clamp
←
