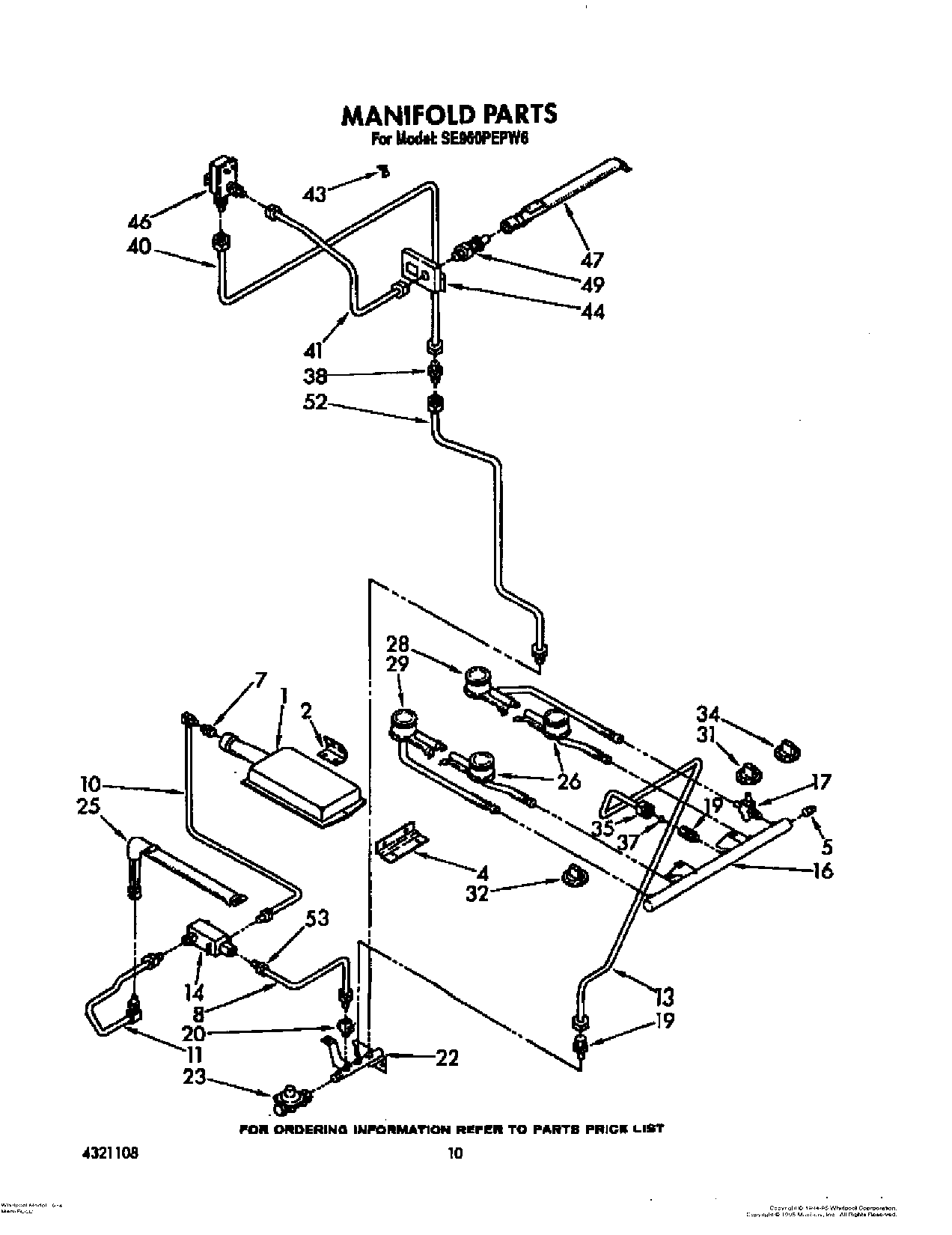

SE960PEPW6 07 – MANIFOLD

Products

Position	Product
1	Burner, Ultra Ray Broiler
2	Bracket, Ignitor
4	Bracket, Burner Mounting
5	Pipe Plug, 3/8 NPT
7	LP Gas No. 58
7	Orifice (No.50 Nat. Gas)
8	Tubing (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Hood & Tubing Assembly (Gas Valve To Lower Oven Burner)
13	Tubing (Inlet To Manifold)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (Tri-Set)
19	Fitting
20	Valve, Shut-Off
22	Inlet
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
28	Top Burner, R.R.
29	Top Burner, L.R.
31	Knob, Top Burner (4)
32	Knob, Oven Control
34	Knob, Selector
35	Nut, Compression 3/8
37	Sleeve, Compression 3/8
38	Union
40	Tubing (Union To Gas Valve)
41	Tubing (Gas Valve Upper Orifice)
43	Clip, Thermo Bulb (2)
44	Bracket, Mounting
46	Valve, Upper
47	Burner, Upper
49	Orifice, Universal
49	Orifice L.P.
52	Tubing (Inlet To Upper-Oven Union)
53	Nut
