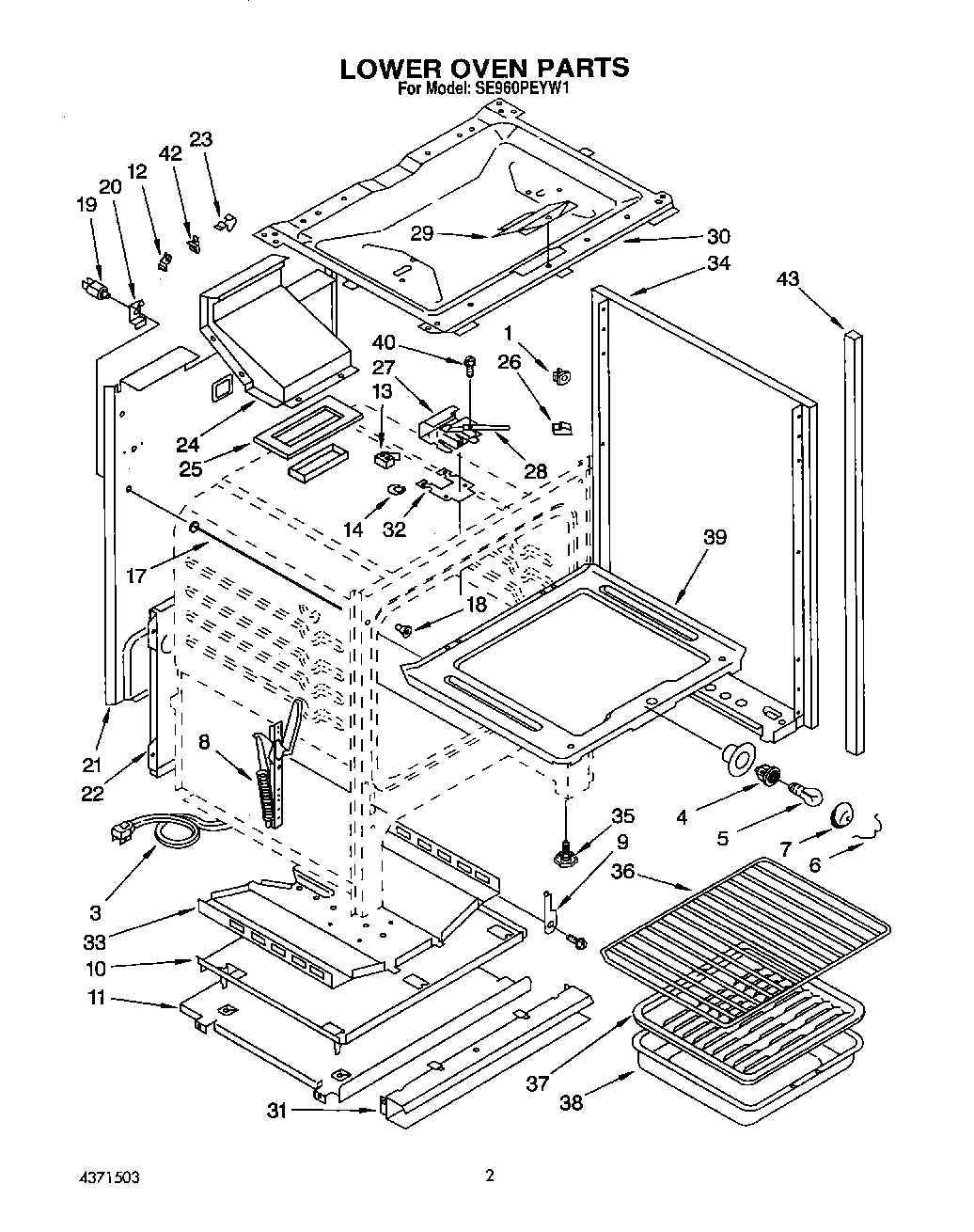

SE960PEYN1 02 – LOWER OVENadmin2025-04-26T12:53:37+00:00SE960PEYN1 02 – LOWER OVEN
Products
| Position | Product |
|---|
| 1 | Spacer, Body (8) |
| 3 | Cord, Power |
| 4 | W10856866 Whirlpool Light Socket |
| 5 | RANGE ONLY 40W 120V APPL BULB |
| 6 | Retainer, Lens |
| 7 | Lens, Oven Light |
| 8 | Hinge, Oven Door |
| 9 | Cover, Hinge |
| 10 | Shield, Heat (Upper) |
| 11 | Shield, Heat (Lower) |
| 12 | Clip, Thermo Bulb |
| 13 | Switch, Latching |
| 14 | WPW10339879 Whirlpool Wire Tie |
| 14 | Spacer, (2) |
| 16 | Back, Main |
| 17 | Rod, Light |
| 18 | Bumper, Front (4) |
| 19 | Switch, Door |
| 20 | Bracket, Door Switch |
| 21 | Shield, Rear Wall |
| 22 | Shield, Heat |
| 23 | Clip, Wire |
| 24 | Flue Box |
| 25 | Gasket, Flue |
| 25 | Shield, Latch |
| 26 | Knob, Latch |
| 27 | Latch, Door |
| 28 | Handle, Latch |
| 29 | Plate, Cover |
| 30 | Burner Box |
| 31 | Shield, Main Front |
| 32 | Shield, Oven Top |
| 33 | Shield, Heat Baffle |
| 34 | Panel, Side (White RH) |
| 34 | Panel, Side (Almond LH) |
| 34 | Panel, Side (Almond RH) |
| 34 | Panel, Side (White LH) |
| 35 | Screw, Leveler (4) |
| 36 | Rack, Oven (2) |
| 37 | Insert, Broiler Pan |
| 38 | Pan, Broiler |
| 39 | Bottom, Oven |
| 39 | Support, Oven Bottom |
| 40 | Screw, Oven Bottom |
| 42 | Glide, Drawer |
| 43 | Shield, Heat |
| 43 | Insulation, Oven Back |
| 43 | Fastener, T Nut (4) |
| 43 | Shield, Side (2) |
| 43 | Fastener, Cord |
| 43 | Tube, Post (LH) |
| 43 | Insulation, Ov Top |
| 43 | Tube, Post (RH) |
| 43 | Insulation, Front |
| 43 | Insulation, Oven Wrapper |
| 43 | Shield, Wool |
| 43 | Shield, Wire |
| 43 | Bracket, Anti-Tip |
