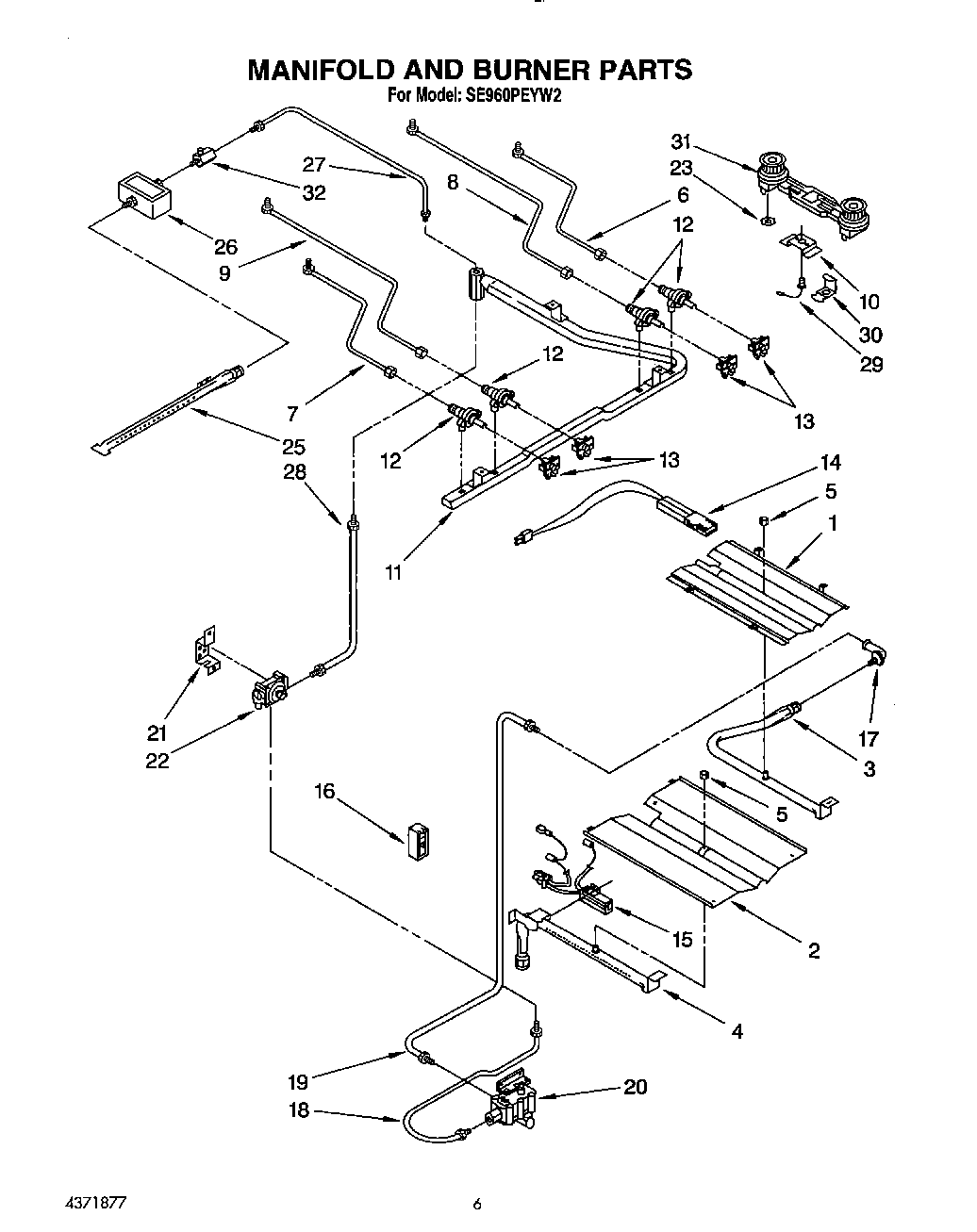

SE960PEYN2 06 – MANIFOLD AND BURNER, LIT/OPTIONALadmin2025-04-26T12:53:44+00:00SE960PEYN2 06 – MANIFOLD AND BURNER, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Use & Care Guide |
| Repair Parts List |
| Installation Instructions |
| 1 | Baffle, Broiler Burner |
| 2 | Baffle, Oven Burner |
| 3 | Burner, Broiler |
| 4 | Burner, Oven |
| 5 | Nut, Hex (2) |
| 6 | Tubing, Burner (RF) |
| 7 | Tubing, Burner (LF) |
| 8 | Tubing, Burner (RR) |
| 9 | Tubing, Burner (LR) |
| 10 | Bracket, Burner Mounting |
| 11 | Pipe, Manifold |
| 12 | Valve, Top (4) |
| 13 | Switch, Ignitor (4) |
| 14 | WP9751123 Whirlpool Oven Igniter |
| 16 | Module, Spark |
| 17 | Mixer, Elbow |
| 18 | Tubing, Valve To Regulator |
| 19 | Tubing, Valve To Mixing Elbow |
| 20 | Valve, Safety |
| 21 | Bracket, Regulator |
| 22 | Control, Regulator |
| 23 | Nut, Special (4) |
| 24 | 814269 Whirlpool Oven Flat Igniter |
| 25 | Burner, Upper Oven |
| 26 | Valve, Upper |
| 27 | Tube, Upper Oven Valve |
| 28 | Tubing, Regulator To Manifold Pipe |
| 29 | Ignitor, Top Burner |
| 30 | Retainer, Ignitor |
| 31 | Burner, Double |
| 32 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 32 | WPW10208653 Whirlpool Insulation |
| 32 | Retainer, Burner Bracket |
| 32 | Support, Thermo Valve |
| 32 | Tube, Spacer |
| 32 | Valve, Shut Off |
