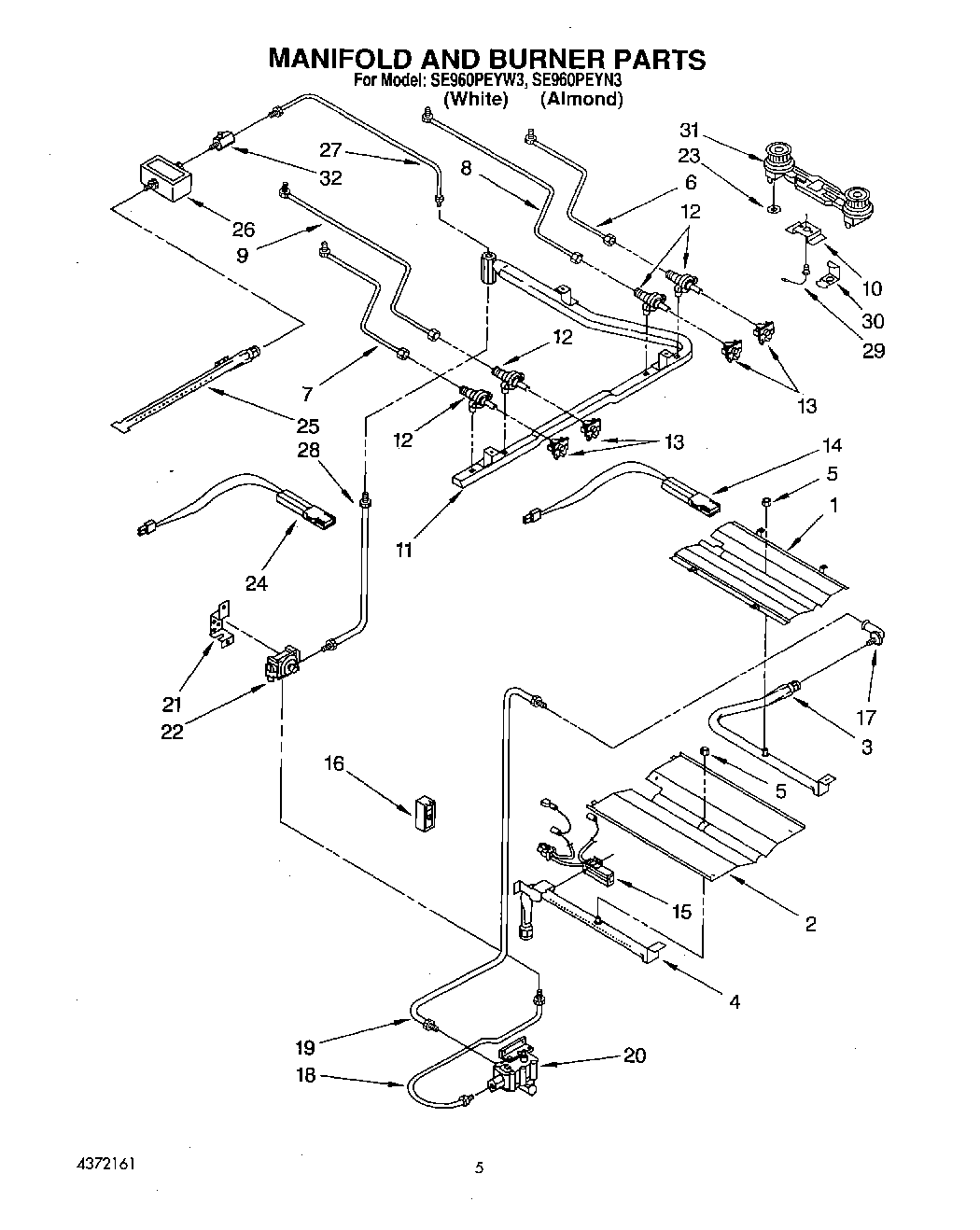

SE960PEYN3 05 – MANIFOLD AND BURNER, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Use & Care Guide
1	Baffle, Broiler Burner
2	Baffle, Oven Burner
3	Burner, Broiler
4	Burner, Oven
5	Nut, Hex (2)
6	Tubing, Burner (RF)
7	Tubing, Burner (LF)
8	Tubing, Burner (RR)
9	Tubing, Burner (LR)
10	Bracket, Burner Mounting
11	Pipe, Manifold
12	Valve, Top (4)
13	Switch, Ignitor (4)
14	WP9751123 Whirlpool Oven Igniter
16	Module, Spark
17	Mixer, Elbow
18	Tubing, Valve To Regulator
19	Tubing, Valve To Mixing Elbow
20	Valve, Safety
21	Bracket, Regulator
22	Control, Regulator
23	Nut, Special (4)
24	814269 Whirlpool Oven Flat Igniter
25	Burner, Upper Oven
26	Valve, Upper
27	Tube, Upper Oven Valve
28	Tubing, Regulator To Manifold Pipe
29	Ignitor, Top Burner
30	Retainer, Ignitor
31	Burner, Double
32	FOIL, ALUMINUM OVEN (18“ X 25 )
32	WPW10208653 Whirlpool Insulation
32	Support, Thermo Valve
32	Tube, Spacer
32	Valve, Shut Off
32	Retainer, Burner Bracket
