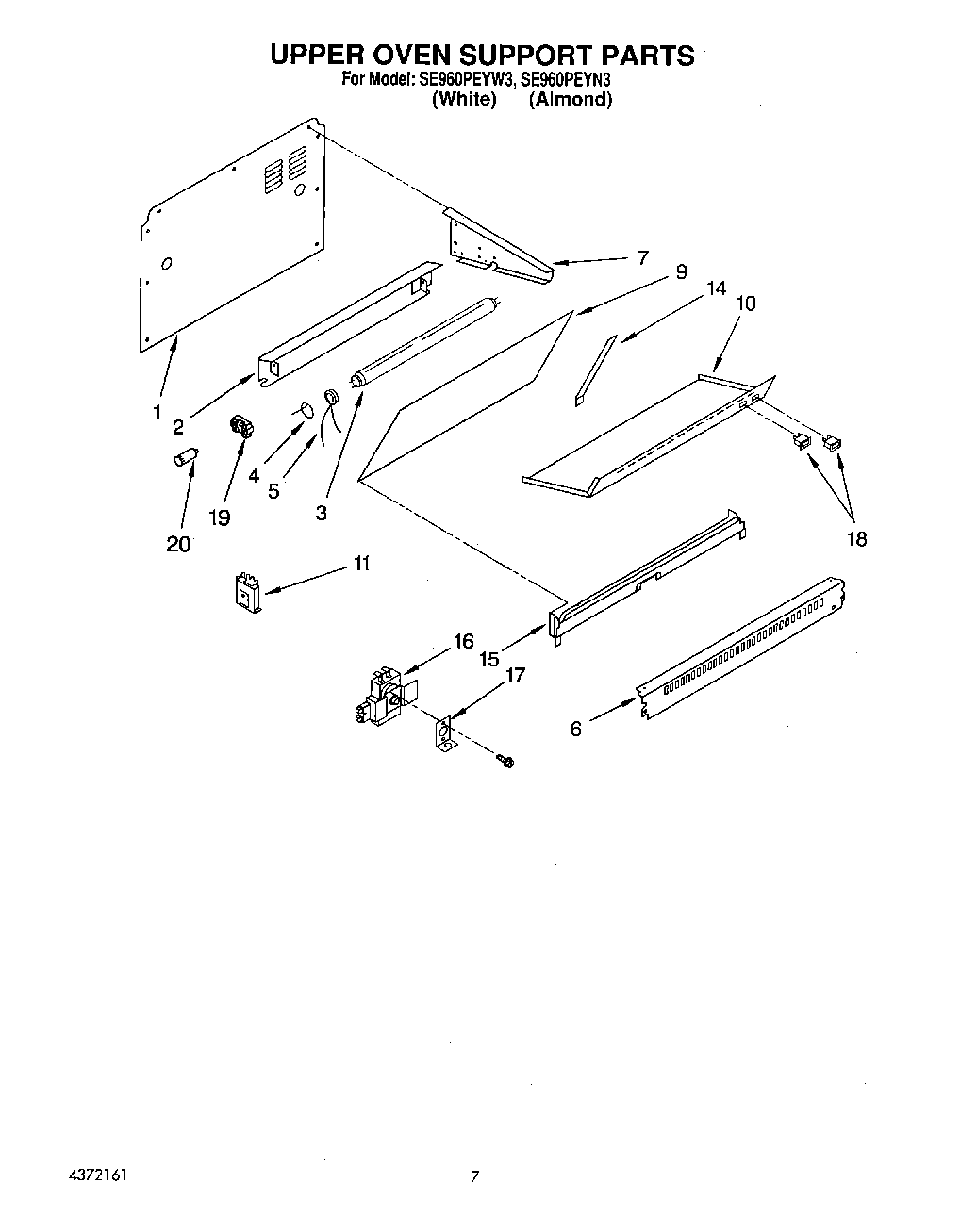

SE960PEYN3 06 – UPPER OVEN SUPPORTadmin2025-04-26T12:52:54+00:00SE960PEYN3 06 – UPPER OVEN SUPPORT
Products
| Position | Product |
|---|
| 1 | Back, Middle Wall |
| 2 | Reflector |
| 3 | WP95292 Whirlpool Fluorescent Light Bulb |
| 4 | Insulator (2) |
| 5 | Receptacle (2) |
| 6 | Vent, Trim |
| 7 | Support, Oven (Left Hand) |
| 7 | Support, Oven (Right Hand) |
| 9 | Glass, Splasher |
| 10 | Splasher, Panel (Upper) |
| 11 | Ballast |
| 14 | Trim, Side (Right Hand) |
| 14 | Trim, Side (Left Hand) |
| 15 | Trim, Upper Oven Spl. Filler |
| 16 | Thermostat |
| 17 | Bracket, Thermostat |
| 18 | WP4314961 Whirlpool Lite Switch |
| 19 | Starter, Receptacle |
| 20 | Button, Glide |
