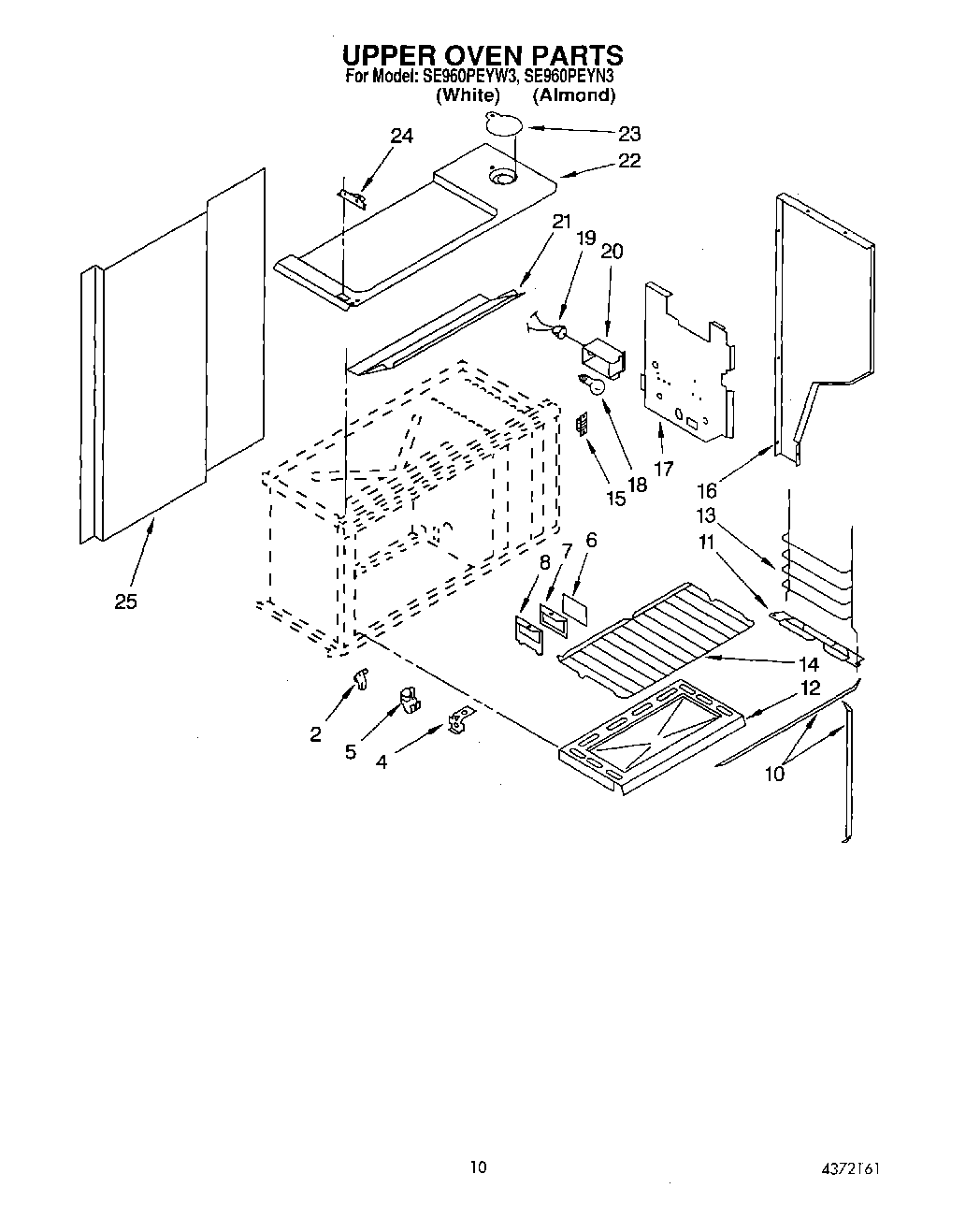

SE960PEYN3 09 – UPPER OVEN

Products

Position	Product
2	Hinge, Door
4	Plate, Bottom Hinge
5	Clip, Thermo Bulb
6	Glass, Oven Light Lens
7	Gasket, Oven Light
8	Cover, Oven Lens
10	Seals, Door (Top, Bottom and Sides)
11	Glide, Oven Bottom
12	Bottom, Oven
13	Glide, Oven Rack (2)
14	Rack, Upper Oven
15	Catch, Door
16	Panel, Back Side (Right (White))
16	Panel, Back Side (Left (White))
16	Panel, Back Side (Right (Almond))
16	Panel, Back Side (Left (Almond))
17	Shield, Wool Upper Oven
18	RANGE ONLY 40W 120V APPL BULB
19	W10856866 Whirlpool Light Socket
20	Box, Upper Oven Light
22	Top, Panel Upper Oven
23	Cover, Outlet
24	Hinge, Door Top
25	Angle, Wool Shield
25	Back, Main
25	Strike, Door
25	Retainer, Oven Burner
25	Insulation, Wool
25	Bracket, Connector Mounting
25	Insulation, Wool
25	Insulation, Wool Splasher
25	Foil, Aluminum
25	Insulation, Upper Oven
